6035HTC Rogers Double Sided Circuit Board PCB 30mil For Power Dividers
  • name
  • name

6035HTC Rogers Double Sided Circuit Board PCB 30mil For Power Dividers

MOQ: 1PCS
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-127.V1.0
Base Material:
Ceramic-filled PTFE Composites
Layer Count:
Double Layer, Multilayer, Hybrid PCB
PCB Thickness:
10mil (0.254mm), 20mil(0.508mm), 30mil (0.762mm), 60mil(1.524mm)
PCB Size:
≤400mm X 500mm
Solder Mask:
Green, Black, Blue, Yellow, Red Etc.
Copper Weight:
0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Surface Finish:
Bare Copper, HASL, ENIG, OSP Etc..
Highlight:

ISO Rogers Double Sided Circuit Board

,

Power Dividers Rogers PCB Board

,

Ceramic Filled PTFE Rogers PCB Board

Product Description

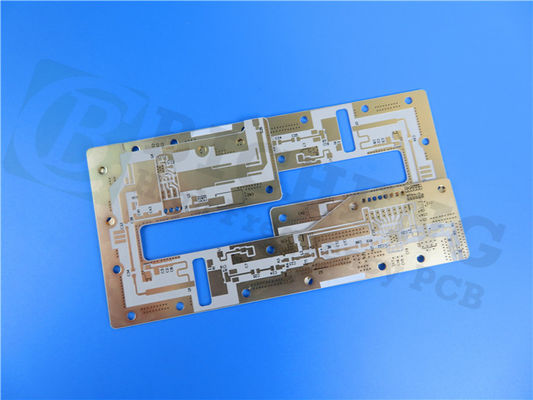

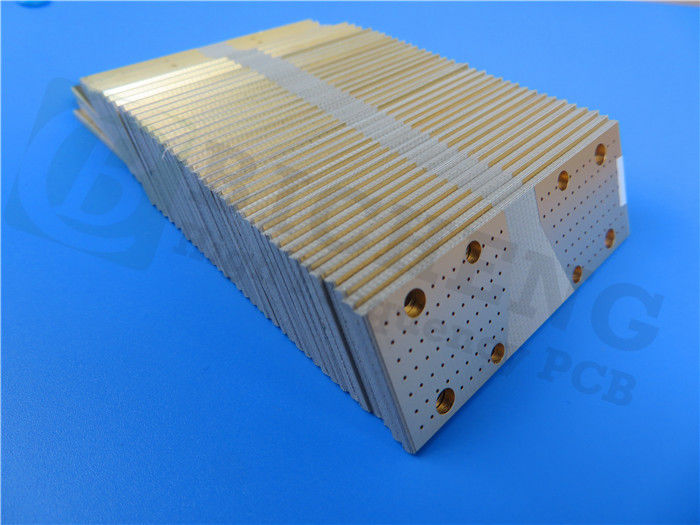

Double Sided Rogers High Frequency PCB Built On 30mil RT/duroid 6035HTC With Immersion Gold for Power Dividers

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



RT/duroid 6035HTC high frequency circuit materials of Rogers Corporation are ceramic filled PTFE composites for use in high power RF and microwave applications. With a thermal conductivity of almost 2.4 times the standard RT/duroid 6000 products, and copper foil (electrodeposited and reverse treat) with excellent long term thermal stability, RT/duroid 6035HTC laminates are an exceptional choice for high power applications.



Features/Benefits:

1. High Thermal conductivity

Improved dielectric heat dissipation enables lower operating temperatures for high power applications



2. Low loss tangent

Excellent high frequency performance



3. Thermally stable low profile and reverse treat copper foil

Lower insertion loss and excellent thermal stability of traces



4. Advanced filler system

Improved drill ability and extended tool life compared to alumina containing circuit materials



Some Typical Applications:

1. High Power RF and Microwave Amplifiers

2. Power Amplifiers, Couplers, Filters

3. Combiners, Power Dividers



PCB Capability (RT/duroid 6035HTC)

PCB Material: Ceramic-filled PTFE composites
Designation: RT/duroid 6035HTC
Dielectric constant: 3.50±0.05
Layer count: Double Layer, Multilayer, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 10mil (0.254mm), 20mil(0.508mm), 30mil (0.762mm), 60mil(1.524mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, OSP etc..



6035HTC Rogers Double Sided Circuit Board PCB 30mil For Power Dividers 0



Data Sheet of RT/duroid 6035HTC

RT/duroid 6035HTC Typical Value
Property RT/duorid 6035HTC Direction Units Condition Test Method
Dielectric Constant,εProcess 3.50±0.05 Z   10 GHz/23℃ IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant,εDesign 3.6 Z   8 GHz - 40 GHz Differential Phase Length Method
Dissipation Factor 0.0013 Z   10 GHz/23℃ IPC-TM-650 2.5.5.5
Thermal Coefficient of ε -66 Z ppm/℃ -50 ℃to 150℃ mod IPC-TM-650, 2.5.5.5
Volume Resistivity 108   MΩ.cm A IPC-TM-650, 2.5.17.1
Surface Resistivity 108   MΩ A IPC-TM-650, 2.5.17.1
Dimensional Stability -0.11 -0.08 CMD MD mm/m (mils/inch) 0.030" 1oz EDC foil Thickness after etch '+E4/105 IPC-TM-650 2.4.39A
Tensile Modulus 329 244 MD CMD kpsi 40 hrs @23℃/50RH ASTM D638
Moisure Absorption 0.06   % D24/23 IPC-TM-650 2.6.2.1 ASTM D570
Coefficient of Thermal Expansion (-50 ℃to 288 ℃) 19 19 39 X Y Z ppm/℃ 23℃ / 50% RH IPC-TM-650 2.4.41
Thermal Conductivity 1.44   W/m/k 80℃ ASTM C518
Density 2.2   gm/cm3 23℃ ASTM D792
Copper Peel Stength 7.9   pli 20 sec. @288 ℃ IPC-TM-650 2.4.8
Flammability V-0       UL 94
Lead-Free Process Compatible Yes
