DiClad 870 Microwave PCB With HASL Double Sided 31mil 0.8mm No Silkscreen

DiClad 870 Microwave PCB With HASL Double Sided 31mil 0.8mm No Silkscreen
DiClad 870 Microwave PCB With HASL Double Sided 31mil 0.8mm No Silkscreen DiClad 870 Microwave PCB With HASL Double Sided 31mil 0.8mm No Silkscreen DiClad 870 Microwave PCB With HASL Double Sided 31mil 0.8mm No Silkscreen

Large Image :  DiClad 870 Microwave PCB With HASL Double Sided 31mil 0.8mm No Silkscreen

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-212.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
PCB Size: 80mm X 300mm=1 Piece Board Type: High Frequency PCB, Microwave PCB
Layer Count: 2 Layers PCB Thickness: 0.9 Mm ±0.12
Copper Weight: 1oz Surface Finish: HASL Pb Free
High Light:

HASL Double Sided Microwave PCB

,

No Silkscreen Microwave PCB

,

0.8mm Rogers PCB Board

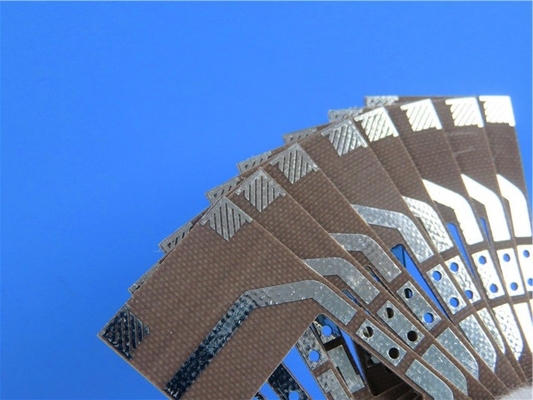

DiClad 870 Microwave PCB with HASL Double Sided 31mil 0.8mm Thick no Solder Maks no Silkscreen

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



General Description

This is a type of double-sided microwave PCB built on 31mil DiClad 870 substrates. It is a simple printed circuit board without solder mask or silkscreen. The surface finish of pads are protected by hot air soldering level(HASL), lead free type. It has a board size of 30mm x 80mm, 1oz copper finished.



All open-short circuit testing and strict adherence to IPC-Class-II standards are performed on the boards before shipment. They are vacuum-packed with a box weighing 12 kg and a bag containing 25 boards for shipment.



PCB Parameters

PCB SIZE 80mm x 300mm=1 piece
BOARD TYPE High Frequency PCB, Microwave PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components N/A
LAYER STACKUP copper ------- 17um(0.5 oz)+plate top layer
DiClad 870, 0.787mm
copper ------- 17um(0.5 oz)+plate bot layer
TECHNOLOGY
Minimum Trace and Space: 15 mil / 15 mil
Minimum / Maximum Holes: 0.9 mm / 0.9 mm
Number of Different Holes: 1
Number of Drill Holes: 4
Number of Milled Slots: 1
Number of Internal Cutouts: 1
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: DiClad 870, 0.787mm
Final foil external: 1 oz
Final foil internal: 1 oz
Final height of PCB: 0.9 mm ±0.12
PLATING AND COATING
Surface Finish HASL Pb free
Solder Mask Apply To: N/A
Solder Mask Color: N/A
Solder Mask Type: N/A
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend N/A
Colour of Component Legend N/A
Manufacturer Name or Logo: N/A
VIA Plated through hole(PTH), minimum size 0.9mm.
FLAMIBILITY RATING 94V-0
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



DiClad 870 Microwave PCB With HASL Double Sided 31mil 0.8mm No Silkscreen 0



Our PCB Capability(2023)

Parameter Value
 Layer Counts  1-32
 Substrate Materials RO4350B, RO4003C, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO4835, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/Duroid 6010, RT/duroid 6035HTC; RT/duroid 5880LZ; TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i, Kappa 438; TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5, TLY-5Z; PTFE F4B (DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2); AD250C, AD255C, AD300D, AD350A, AD450, AD600, AD1000, TC350; TC600; DiClad 880, DiClad 870, DiClad 527; IsoClad 917; CLTE, CLTE-XT, CLTE-AT, CLTE-MW; Nelco N4000, N9350, N9240; SCGA-500 GF220, SCGA-500 GF255, SCGA-500 GF265, SCGA-500 GF300; FR-4 ( High Tg S1000-2M, TU-872 SLK, TU-768, IT-180A etc.), FR-4 High CTI>600V; Polyimide, PET; Metal Core etc.
 Maximum Size  Flying test: 900*600mm, Fixture test 460*380mm, No test 1100*600mm
 Board Outline Tolerance  ±0.0059" (0.15mm)
 PCB Thickness 0.0157" - 0.3937" (0.40mm--10.00mm)
Thickness Tolerance(T≥0.8mm)  ±8%
Thickness Tolerance(t<0.8mm)  ±10%
 Insulation Layer Thickness 0.00295" - 0.1969" (0.075mm--5.00mm)
 Minimum Track 0.003" (0.075mm)
 Minimum Space  0.003" (0.075mm)
 Outer Copper Thickness  35µm--350µm (1oz-10oz)
 Inner Copper Thickness  17µm--350µm (0.5oz - 10oz)
 Drill Hole(Mechanical) 0.0079" - 0.25" (0.2mm--6.35mm)
 Finished Hole(Mechanical) 0.0039"-0.248" (0.10mm--6.30mm)
DiameterTolerance(Mechanical) 0.00295" (0.075mm)
 Registration (Mechanical) 0.00197" (0.05mm)
 Aspect Ratio  12:1
 Solder Mask Type  LPI
 Min Soldermask Bridge 0.00315" (0.08mm)
 Min Soldermask Clearance 0.00197" (0.05mm)
 Plug via Diameter 0.0098" - 0.0236" (0.25mm--0.60mm)
Impedance Control Tolerance  ±10%
 Surface Finish HASL,HASL LF,ENIG,Immersion Tin,Immersion Silver, OSP, Gold Finger, Pure gold plated etc.



DiClad 870 Microwave PCB With HASL Double Sided 31mil 0.8mm No Silkscreen 1



Do We Deliver Worldwide?

All PCBs purchasable through Bicheng Ltd can be dispatched worldwide to any non embargoed countries. We’ll choose the suitable shipping carriers for you among DHL, FedEx, TNT, UPS, EMS and Aramex



Is the High frequency Materials In Stock?

We keep most of the high frequency material in stock with prototype quantity,such as Rogers material with 3000 series, 4000 series, 5000 series, 6000 series etc, Taconic material with RF series, TLX series, TLY series etc, Wangling material F4B with DK2.2, DK2.65 etc. Since the high frequency material has so much variety, you can consult our sales persons before ordering.



Can I Collect My Order?

It’s completely no problem to pick up ordering of boards or collection of PCBs from our premises through your account in DHL, UPS or FedEx etc.. We’ll help to prepare the necessary export documents or files for customs declare.



How Much Will It Cost For Delivery?

We have various carriers to choose. Usually, we’ll pick one with best shipping fee for you. If your order is urgent, we can help to choose the forwarder with fast timeliness.



Am I Able To Return My PCBs?

PCBs are irreversible custom-made products, it is not allowed to return the items if there’s no quality problems.



When Will My Order Arrive?

All the PCBs are dispatched the same day if they are finished fabrication before 5pm. For Asian clients, you can get it within 2-3 days, European clients in 6-7 days and American (North and South) in 6-7 days, however the carriers do not guarantee this because of the complexity of transportation.



Will I Need To Sign For My Package?

We dispatch all orders using DHL, UPS, FedEx, TNT, Aramex or EMS, so they are fully tracked and may require a signature.



How Can I Track My Order?

Once your PCB boards are dispatched, you will receive a shipping confirmation via email by our sales that includes a tracking number. You can track this number on their official websites.



What Should I Do If My Parcel Is Damaged Or Lost?

This situation is rare in our daily business. The PCB boards are packed with bubble materials inside and with KK grade carton outside to protect your PCBs. However, If your parcel is lost or damaged, you must contact us immediately so that we can contact the carrier and arrange for replacement production. Please keep any damaged items including damaged packaging for reference.
