RO3203 Double Sided 60mil High Frequency PCB For Base Station Infrastructure
  • name
  • name

RO3203 Double Sided 60mil High Frequency PCB For Base Station Infrastructure

MOQ: 1PCS
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-124.V1.0
Base Material:
Ceramic-filled Laminates Reinforced With Woven Fiberglass
Layer Count:
Double Layer, Multilayer, Hybrid PCB
PCB Thickness:
10mil (0.254mm), 20mil(0.508mm), 30mil (0.762mm), 60mil(1.524mm)
PCB Size:
≤400mm X 500mm
Solder Mask:
Green, Black, Blue, Yellow, Red Etc.
Copper Weight:
0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Surface Finish:
Bare Copper, HASL, ENIG, OSP Etc..
Highlight:

60mil High Frequency PCB

,

RO3203 High Frequency PCB

,

Base Station Infrastructure Rogers PCB Board

Product Description

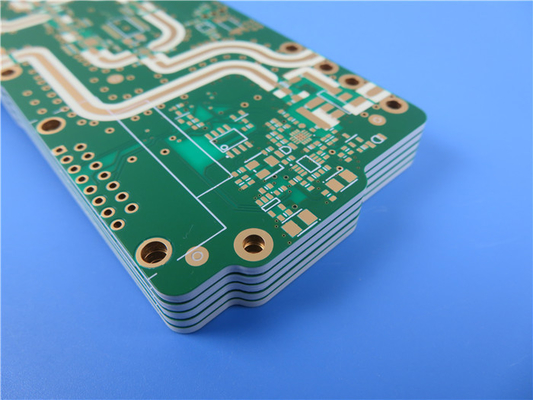

Rogers RO3203 Double Sided 60mil High Frequency PCB For Base Station Infrastructure

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



RO3203 High Frequency Circuit Materials of Rogers Corporation are ceramic-filled laminates reinforced with woven fiberglass. This material is engineered to offer exceptional electrical performance and mechanical stability at competitive prices. The dielectric constant of RO3203 High Frequency Circuit Materials is 3.02. This, along with a dissipation factor of 0.0016, extends the useful frequency range beyond 40 GHz.



RO3203 laminates combine the surface smoothness of a non-woven PTFE laminate, for finer line etching tolerances, with the rigidity of a woven-glass PTFE laminate. These materials can be fabricated into printed circuit boards using

standard PTFE circuit board processing techniques. Available cladding options are 0.5, 1 or 2 oz./ft2 (17, 35, 70 micron thick) electrodeposited copper foil. These laminates are manufactured under an ISO 9002 certified quality system.



Features:

1. Woven glass reinforcement improves rigidity for easier handling.

2. Uniform electrical and mechanical performance is ideal for complex multilayer high frequency structures.

3. Excellent mechanical properties over a wide range of dielectric constants are ideal for multilayer board designs.

4. Excellent dimensional stability for high production yields.

5. Economically priced for volume manufacturing.



Typical Applications:

1. Base Station Infrastructure

2. Wireless Telecommunications Systems



RO3203 Double Sided 60mil High Frequency PCB For Base Station Infrastructure 0



PCB Capability (RO3203)

PCB Material: Ceramic-filled Laminates Reinforced with Woven Fiberglass
Designation: RO3203
Dielectric constant: 3.02±0.04
Layer count: Double Layer, Multilayer, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 10mil (0.254mm), 20mil(0.508mm), 30mil (0.762mm), 60mil(1.524mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, OSP etc..



Data Sheet of RO3203

RO3203 Typical Value
Property RO3203 Direction Units Condition Test Method
Dielectric Constant,εProcess 3.02±0.04 Z   10 GHz/23℃ IPC-TM-650 2.5.5.5
Dissipation Factor,tanδ 0.0016 Z   10 GHz/23℃ IPC-TM-650 2.5.5.5
Thermal Conductivity 0.47 (3.2)   W/mK Float 100℃ ASTM C518
Volume Resistivity 107   MΩ.cm A ASTM D257
Surface Resistivity 107   MΩ A ASTM D257
Dimensional Stability 0.08 X, Y mm/m +E2/150 after etch IPC-TM-650 2.4.3.9
Tensile Modulus   X Y kpsi RT ASTM D638
Flexural Modulus 400 300 X Y kpsi A ASTM D790
Tensile Strength 12.5 13 X Y kpsi RT ASTM D638
Flexural Strength 9 8 X Y kpsi A ASTM D790
Moisure Absorption <0.1   % D24/23 IPC-TM-650 2.6.2.1
Coefficient of Thermal Expansion 58 13 Z X,Y ppm/℃ -50 ℃to 288℃ ASTM D3386
Td 500   ℃ TGA ASTM D3850
Density 2.1   gm/cm3 23℃ ASTM D792
Copper Peel Stength 10 (1.74)   lbs/in (N/mm) After solder IPC-TM-650 2.4.8
Flammability V-0       UL 94
Lead-Free Process Compatible Yes
