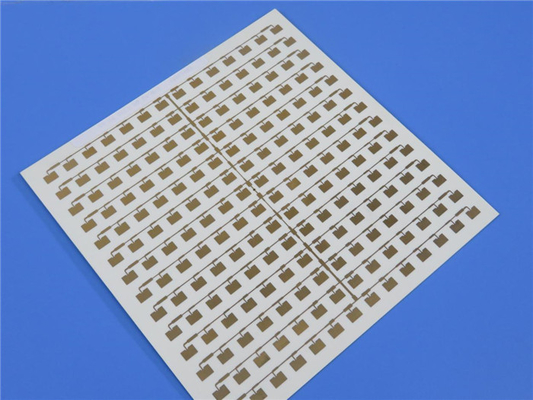

Rogers 3203 Double Sided 20mil Ceramic Pcb Board For Microstrip Patch Antennas

Rogers 3203 Double Sided 20mil Ceramic Pcb Board For Microstrip Patch Antennas
Rogers 3203 Double Sided 20mil Ceramic Pcb Board For Microstrip Patch Antennas Rogers 3203 Double Sided 20mil Ceramic Pcb Board For Microstrip Patch Antennas

Large Image :  Rogers 3203 Double Sided 20mil Ceramic Pcb Board For Microstrip Patch Antennas

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-122.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Anterial: Ceramic-filled Laminates Reinforced With Woven Fiberglass Layer Count: Double Layer, Multilayer, Hybrid PCB
PCB Thickness: 10mil (0.254mm), 20mil(0.508mm), 30mil (0.762mm), 60mil(1.524mm) PCB Size: ≤400mm X 500mm
Solder Mask: Green, Black, Blue, Yellow, Red Etc. Copper Weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Surface Finish: Bare Copper, HASL, ENIG, OSP Etc..
High Light:

20mil Ceramic Pcb Board

,

Double Sided Rogers PCB Board

,

Microstrip Patch Antenna PCB Board



Rogers RO3203 Double Sided 20mil High Frequency PCB For Microstrip Patch Antennas

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



RO3203 High Frequency Circuit Materials of Rogers Corporation are ceramic-filled laminates reinforced with woven fiberglass. This material is engineered to offer exceptional electrical performance and mechanical stability at competitive prices. The dielectric constant of RO3203 High Frequency Circuit Materials is 3.02. This, along with a dissipation factor of 0.0016, extends the useful frequency range beyond 40 GHz.



RO3203 laminates combine the surface smoothness of a non-woven PTFE laminate, for finer line etching tolerances, with the rigidity of a woven-glass PTFE laminate. These materials can be fabricated into printed circuit boards using

standard PTFE circuit board processing techniques. Available cladding options are 0.5, 1 or 2 oz./ft2 (17, 35, 70 micron thick) electrodeposited copper foil. These laminates are manufactured under an ISO 9002 certified quality system.



Rogers 3203 Double Sided 20mil Ceramic Pcb Board For Microstrip Patch Antennas 0



Features:

1. Low dielectric loss for high frequency performance can be used in applications exceeding 20 GHz.

2. Low in-plane expansion coefficient (matched to copper) is suitable for use with epoxy glass multilayer board hybrid designs

3. Economically priced for volume manufacturing.

4. Surface smoothness allows for finer line etching tolerances



Typical Applications:

1. Automotive Collision Avoidance Systems

2. Automotive Global Positioning Satellite Antennas

3. Base Station Infrastructure

4. LMDS and Wireless Broadband

5. Remote Meter Readers



PCB Capability (RO3203)

PCB Material: Ceramic-filled Laminates Reinforced with Woven Fiberglass
Designation: RO3203
Dielectric constant: 3.02±0.04
Layer count: Double Layer, Multilayer, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 10mil (0.254mm), 20mil(0.508mm), 30mil (0.762mm), 60mil(1.524mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, OSP etc..



Data Sheet of RO3203

RO3203 Typical Value
Property RO3203 Direction Units Condition Test Method
Dielectric Constant,εProcess 3.02±0.04 Z   10 GHz/23℃ IPC-TM-650 2.5.5.5
Dissipation Factor,tanδ 0.0016 Z   10 GHz/23℃ IPC-TM-650 2.5.5.5
Thermal Conductivity 0.47 (3.2)   W/mK Float 100℃ ASTM C518
Volume Resistivity 107   MΩ.cm A ASTM D257
Surface Resistivity 107   A ASTM D257
Dimensional Stability 0.08 X, Y mm/m +E2/150 after etch IPC-TM-650 2.4.3.9
Tensile Modulus   X Y kpsi RT ASTM D638
Flexural Modulus 400 300 X Y kpsi A ASTM D790
Tensile Strength 12.5 13 X Y kpsi RT ASTM D638
Flexural Strength 9 8 X Y kpsi A ASTM D790
Moisure Absorption <0.1   % D24/23 IPC-TM-650 2.6.2.1
Coefficient of Thermal Expansion 58 13 Z X,Y ppm/℃ -50 ℃to 288℃ ASTM D3386
Td 500   TGA ASTM D3850
Density 2.1   gm/cm3 23℃ ASTM D792
Copper Peel Stength 10 (1.74)   lbs/in (N/mm) After solder IPC-TM-650 2.4.8
Flammability V-0       UL 94
Lead-Free Process Compatible Yes



Rogers 3203 Double Sided 20mil Ceramic Pcb Board For Microstrip Patch Antennas 1
