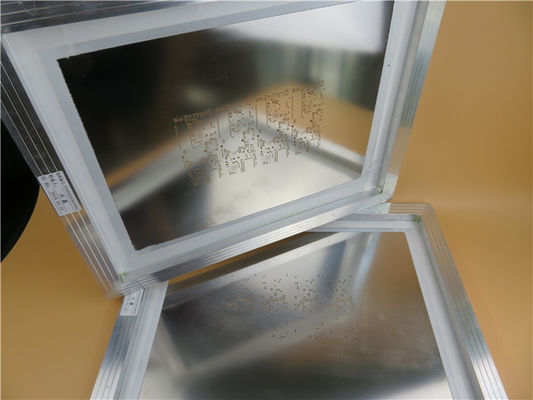

Stainless Steel Shim 0.12mm PCB SMT Stencil 520x420mm Aluminum Fame
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

Stainless Steel Shim 0.12mm PCB SMT Stencil 520x420mm Aluminum Fame

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-959.V1.0
Base Material:
Stainless Steel Shim
Stencil Size:
520 X 420 Mm =1 PCS
Foil Thickness:
0.12mm
Appearance:
Engraving And Electro Polishing
Highlight:

520x420mm PCB SMT Stencil

,

0.12mm PCB SMT Stencil

,

0.12mm Mini SMT Stencil

Product Description



PCB SMT Stencil Built on 520 X 420mm With Aluminum Fame

1.1 General description
This is a type of laser cut SMT stencil built on 0.12mm stainless steel foil with 420 mm x 520 mm x 20mm dimension. It’s fabricated per IPC 7525A using supplied Gerber data, squeegee area locating in the center. 4 sides of fiducal marks are through holes to suit for the SMT machine. It’s packed with KK carton (hard card) and usually 2 stencils are packed for shipment.

1.2 Features and benifits
The data file is used directly to produce and reduce the error rate;
The opening position accuracy of SMT template is very high: the whole process error is ≤ ±4 μ m;
The opening of SMT template has geometric figure, which is advantageous to the printing and forming of tin paste;
ISO9000 certified manufacturing factory;
12 hours quotation;
Quick Lead time: 1-2 days;
No MOQ, low cost for prototypes and small runs quantity;

Stainless Steel Shim 0.12mm PCB SMT Stencil 520x420mm Aluminum Fame 0Stainless Steel Shim 0.12mm PCB SMT Stencil 520x420mm Aluminum Fame 1Stainless Steel Shim 0.12mm PCB SMT Stencil 520x420mm Aluminum Fame 2
Stainless Steel Shim 0.12mm PCB SMT Stencil 520x420mm Aluminum Fame 3

1.3 Application
SMD package such as PLCC,QFP,0402,0201,BGA,Flip Chip.

1.4 Parameter and data sheet
Dimension: 520 x 420 mm =1 PCS
Structure Stencil foils with aluminum frame
Base material Stainless steel shim
Foil Thickness 0.12mm
Aperture configured Laser cut
Appearance Engraving and electro polishing
Fiducial mark Through hole
Service area: Worldwide
Quantity of open pads: 1124
Advantages: a) High precision dimension; b) Good shape on the window; c) Hole wall is smoother.
Application: CSP, BGA, 0.5mm QFP etc. package

1.5 Opening Holes Design For Stencil
Component Type Pitch Soldering Width Soldering Length Opening Width Opening Length Shim Thickness
PLCC 1.27mm 0.65mm 2.00mm 0.60mm 1.95mm 0.15-0.25mm
QFP 0.635mm 0.35mm 1.50mm 0.32mm 1.45mm 0.15-0.18mm
QFP 0.50mm 0.254-0.33mm 1.25mm 0.22-0.25mm 1.20mm 0.12-0.15mm
QFP 0.40mm 0.25mm 1.25mm 0.20mm 1.20mm 0.10-0.12mm
QFP 0.30mm 0.20mm 1.00mm 0.15mm 0.95mm 0.07-0.12mm
0402   0.50mm 0.65mm 0.45mm 0.60mm 0.12-0.15mm
0201   0.25mm 0.40mm 0.23mm 0.35mm 0.07-0.12mm
BGA 1.27mm 0.80mm   0.75mm 0.75mm 0.15-0.20mm
BGA 1.00mm 0.38mm   0.35mm 0.35mm 0.10-0.12mm
BGA 0.50mm 0.30mm   0.28mm 0.28mm 0.07-0.12mm
Flip Chip 0.25mm 0.12mm 0.12mm 0.12mm 0.12mm 0.08-0.10mm
Flip Chip 0.20mm 0.10mm 0.10mm 0.10mm 0.10mm 0.05-0.10mm



Stainless Steel Shim 0.12mm PCB SMT Stencil 520x420mm Aluminum Fame 4Stainless Steel Shim 0.12mm PCB SMT Stencil 520x420mm Aluminum Fame 5Stainless Steel Shim 0.12mm PCB SMT Stencil 520x420mm Aluminum Fame 6Stainless Steel Shim 0.12mm PCB SMT Stencil 520x420mm Aluminum Fame 7
