Laser Cut PCB SMT Stencil 0.15mm Stainless Steel Foil with aluminum frame

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-952.V1.0

Base Material:

Stainless Steel Shim

Stencil Size:

520 X 420 Mm =1 PCS

Foil Thickness:

0.05mm, 0.06mm, 0.08mm, 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.2mm

Appearance:

Engraving And Electro Polishing

Highlight:

ISO9001 PCB SMT Stencil

Laser Cut PCB SMT Stencil

PCB Laser Cut SMT Stencil

Product Description

PCB Solder Paste SMT Laser Cut Stencil Shim Aluminum Framed Stencil 0.15mm Stainless Steel Shim

1.1 General description

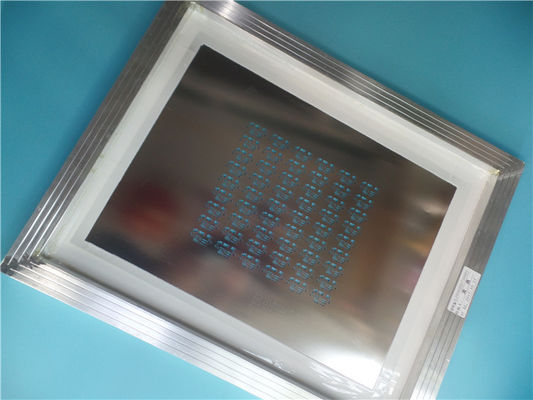

This is a type of laser cut SMT stencil built on 0.15mm stainless steel foil with aluminum frame 520 mm x 420 mm x 20mm dimension. It’s fabricated per IPC 7525A using supplied Gerber data, squeegee area locating in the center. Fiducal marks are through holes to suit for the SMT machine. It’s packed with KK carton (hard card) and usually 2 stencils are packed for shipment.

1.2 Features and benifits

The data file is used directly to produce and reduce the error rate;

The opening position accuracy of SMT template is very high: the whole process error is ≤ ±4 μ m;

The opening of SMT template has geometric figure, which is advantageous to the printing and forming of tin paste;

Quick CADCAM checking and free PCB quotation;

Money-saving, Worry-saving and Labor-saving;

Small quantity order is accepted;

More than 15 years of experience;

1.3 Applications

SMD package such as PLCC,QFP,0402,0201,BGA,Flip Chip.

1.4 Parameter and data sheet

Dimension:	520 x 420 mm =1 PCS
Structure	Stencil foils with aluminum frame
Base material	Stainless steel shim
Foil Thickness	0.05mm, 0.06mm, 0.08mm, 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.2mm
Aperture configured	Laser cut
Appearance	Engraving and electro polishing
Fiducial mark	Through hole
Service area:	Worldwide
Quantity of open pads:	1350
Advantages:	a) High precision dimension; b) Good shape on the window; c) Hole wall is smoother.
Application:	CSP, BGA, 0.5mm QFP etc. package

1.5 Opening Holes Design for SMT Stencil

Component Type	Pitch	Soldering Width	Soldering Length	Opening Width	Opening Length	Shim Thickness
PLCC	1.27mm	0.65mm	2.00mm	0.60mm	1.95mm	0.15-0.25mm
QFP	0.635mm	0.35mm	1.50mm	0.32mm	1.45mm	0.15-0.18mm
QFP	0.50mm	0.254-0.33mm	1.25mm	0.22-0.25mm	1.20mm	0.12-0.15mm
QFP	0.40mm	0.25mm	1.25mm	0.20mm	1.20mm	0.10-0.12mm
QFP	0.30mm	0.20mm	1.00mm	0.15mm	0.95mm	0.07-0.12mm
0402		0.50mm	0.65mm	0.45mm	0.60mm	0.12-0.15mm
0201		0.25mm	0.40mm	0.23mm	0.35mm	0.07-0.12mm
BGA	1.27mm	0.80mm		0.75mm	0.75mm	0.15-0.20mm
BGA	1.00mm	0.38mm		0.35mm	0.35mm	0.10-0.12mm
BGA	0.50mm	0.30mm		0.28mm	0.28mm	0.07-0.12mm
Flip Chip	0.25mm	0.12mm	0.12mm	0.12mm	0.12mm	0.08-0.10mm
Flip Chip	0.20mm	0.10mm	0.10mm	0.10mm	0.10mm	0.05-0.10mm

Laser Cut PCB SMT Stencil 0.15mm Stainless Steel Foil with aluminum frame 6
