Detailed Product Description
Base Material: Stainless Steel Shim Stencil Size: 370mm X 470mm, 420mm X 520mm, 550mm X 650mm
Foil Thickness: 0.05mm, 0.06mm, 0.08mm, 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.2mm Appearance: Engraving And Electro Polishing
High Light:

Laser Cut PCB Solder Paste Stencil

,

0.1mm PCB Solder Paste Stencil

,

0.1mm Solder Paste Stencil



PCB Solder Paste Stencil SMT Assembly Laser Cut Stencil


1.1 General description

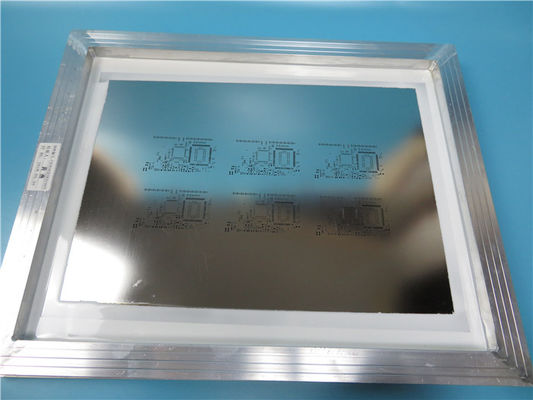

This is a type of solder paste SMT stencil (100% laser cut) built on 0.1mm stainless steel foil with aluminum frame 420 mm x 520 mm x 20mm dimension. It’s fabricated per IPC 7525A using supplied Gerber data, squeegee area locating in the center. Fiducal marks are half-etch dented suit for the SMT machine. It’s packed with KK carton (hard card) and usually 2 stencils are packed for shipment.

1.2 Features and benifits
The data file is used directly to produce and reduce the error rate;
The opening position accuracy of SMT template is very high: the whole process error is ≤ ±4 μ m;
The opening of SMT template has geometric figure, which is advantageous to the printing and forming of tin paste;
Focus on low to medium volume production;
Quick turnaround prototype;
Door to door shipment service;
Competitive price;
On-time service;
More than 15 years of experience;

Laser Cut 0.1mm PCB Solder Paste Stencil For SMD Package 0Laser Cut 0.1mm PCB Solder Paste Stencil For SMD Package 1Laser Cut 0.1mm PCB Solder Paste Stencil For SMD Package 2

1.3 Applications
SMD package such as PLCC,QFP,0402,0201,BGA,Flip Chip.

1.4 Parameter and data sheet
Dimension: 370mm x 470mm, 420mm x 520mm, 550mm x 650mm
Structure Stencil foils with aluminum frame
Base material Stainless steel shim
Foil Thickness 0.05mm, 0.06mm, 0.08mm, 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.2mm
Aperture configured Laser cut
Appearance Engraving and electro polishing
Fiducial mark Through hole
Service area: Worldwide
Quantity of open pads: 1152
Advantages: a) High precision dimension; b) Good shape on the window; c) Hole wall is smoother.
Application: CSP, BGA, 0.5mm QFP etc. package

Laser Cut 0.1mm PCB Solder Paste Stencil For SMD Package 3Laser Cut 0.1mm PCB Solder Paste Stencil For SMD Package 4

1.5 Opening Holes Design for SMT Stencil
Component Type Pitch Soldering Width Soldering Length Opening Width Opening Length Shim Thickness
PLCC 1.27mm 0.65mm 2.00mm 0.60mm 1.95mm 0.15-0.25mm
QFP 0.635mm 0.35mm 1.50mm 0.32mm 1.45mm 0.15-0.18mm
QFP 0.50mm 0.254-0.33mm 1.25mm 0.22-0.25mm 1.20mm 0.12-0.15mm
QFP 0.40mm 0.25mm 1.25mm 0.20mm 1.20mm 0.10-0.12mm
QFP 0.30mm 0.20mm 1.00mm 0.15mm 0.95mm 0.07-0.12mm
0402   0.50mm 0.65mm 0.45mm 0.60mm 0.12-0.15mm
0201   0.25mm 0.40mm 0.23mm 0.35mm 0.07-0.12mm
BGA 1.27mm 0.80mm   0.75mm 0.75mm 0.15-0.20mm
BGA 1.00mm 0.38mm   0.35mm 0.35mm 0.10-0.12mm
BGA 0.50mm 0.30mm   0.28mm 0.28mm 0.07-0.12mm
Flip Chip 0.25mm 0.12mm 0.12mm 0.12mm 0.12mm 0.08-0.10mm
Flip Chip 0.20mm 0.10mm 0.10mm 0.10mm 0.10mm 0.05-0.10mm



Laser Cut 0.1mm PCB Solder Paste Stencil For SMD Package 5Laser Cut 0.1mm PCB Solder Paste Stencil For SMD Package 6Laser Cut 0.1mm PCB Solder Paste Stencil For SMD Package 7
