Through Hole 0.12mm PCB SMT Stencil Electro Polishing
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

Through Hole 0.12mm PCB SMT Stencil Electro Polishing

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-951.V1.0
Base Material:
Stainless Steel Shim
Stencil Size:
520 X 420 Mm =1 PCS
Stencil Thickness:
0.12mm
Structure:
Stencil Foils With Aluminum Frame
Aperture:
Laser Cut
Appearance:
Engraving And Electro Polishing
Fiducial Mark:
Through Hole
Quantity Of Open Pads:
1254
Highlight:

Through Hole PCB SMT Stencil

,

0.12mm PCB SMT Stencil

,

0.12mm PCB Solder Stencil

Product Description

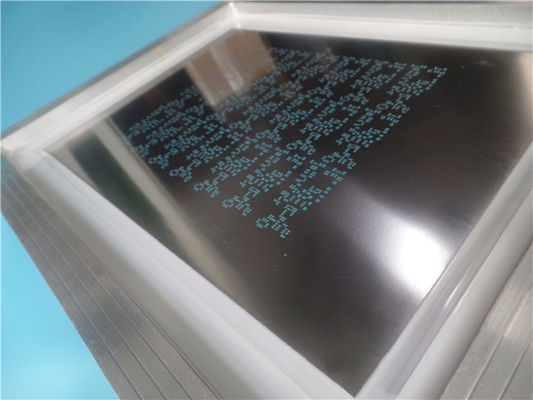

Laser SMT Stencil Made of 0.12mm Stainless Steel Foil With 520 X 420mm Aluminum Frame


1.1 General description
This is a type of laser cut SMT stencil built on 0.12mm stainless steel foil with 520 mm x 420 mm x 20mm dimension. It’s fabricated per IPC 7525A using supplied Gerber data, squeegee area locating in the center.Fiducal marks are through holes to suit for the SMT machine. It’s packed with KK carton (hard card) and usually 2 stencils are packed for shipment.

1.2 Features and benifits
The data file is used directly to produce and reduce the error rate;
The opening position accuracy of SMT template is very high: the whole process error is ≤ ±4 μ m;
The opening of SMT template has geometric figure, which is advantageous to the printing and forming of tin paste;
Quick and on-time delivery;
Great customer service;
Diversified shipping method;
No MOQ, low cost for prototypes and small runs quantity;

Through Hole 0.12mm PCB SMT Stencil Electro Polishing 0Through Hole 0.12mm PCB SMT Stencil Electro Polishing 1Through Hole 0.12mm PCB SMT Stencil Electro Polishing 2

1.3 Applications
SMD package such as PLCC,QFP,0402,0201,BGA,Flip Chip.

Through Hole 0.12mm PCB SMT Stencil Electro Polishing 3Through Hole 0.12mm PCB SMT Stencil Electro Polishing 4

1.4 Parameter and data sheet
Dimension: 520 x 420 mm =1 PCS
Structure Stencil foils with aluminum frame
Base material Stainless steel shim
Foil Thickness 0.12mm
Aperture configured Laser cut
Appearance Engraving and electro polishing
Fiducial mark Through hole
Service area: Worldwide
Quantity of open pads: 1254
Advantages: a) High precision dimension; b) Good shape on the window; c) Hole wall is smoother.
Application: CSP, BGA, 0.5mm QFP etc. package

Through Hole 0.12mm PCB SMT Stencil Electro Polishing 5

1.5 Opening Holes Design for SMT Stencil
Component Type Pitch Soldering Width Soldering Length Opening Width Opening Length Shim Thickness
PLCC 1.27mm 0.65mm 2.00mm 0.60mm 1.95mm 0.15-0.25mm
QFP 0.635mm 0.35mm 1.50mm 0.32mm 1.45mm 0.15-0.18mm
QFP 0.50mm 0.254-0.33mm 1.25mm 0.22-0.25mm 1.20mm 0.12-0.15mm
QFP 0.40mm 0.25mm 1.25mm 0.20mm 1.20mm 0.10-0.12mm
QFP 0.30mm 0.20mm 1.00mm 0.15mm 0.95mm 0.07-0.12mm
0402   0.50mm 0.65mm 0.45mm 0.60mm 0.12-0.15mm
0201   0.25mm 0.40mm 0.23mm 0.35mm 0.07-0.12mm
BGA 1.27mm 0.80mm   0.75mm 0.75mm 0.15-0.20mm
BGA 1.00mm 0.38mm   0.35mm 0.35mm 0.10-0.12mm
BGA 0.50mm 0.30mm   0.28mm 0.28mm 0.07-0.12mm
Flip Chip 0.25mm 0.12mm 0.12mm 0.12mm 0.12mm 0.08-0.10mm
Flip Chip 0.20mm 0.10mm 0.10mm 0.10mm 0.10mm 0.05-0.10mm

Through Hole 0.12mm PCB SMT Stencil Electro Polishing 6
Through Hole 0.12mm PCB SMT Stencil Electro Polishing 7
