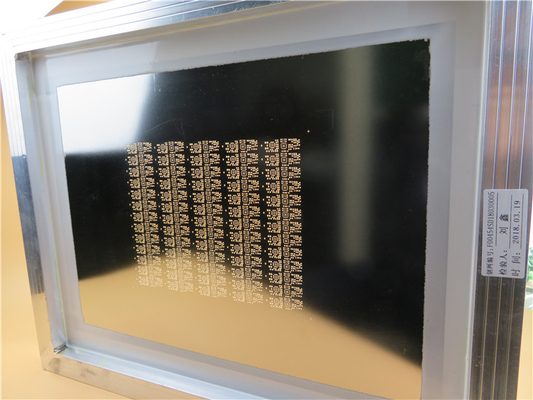

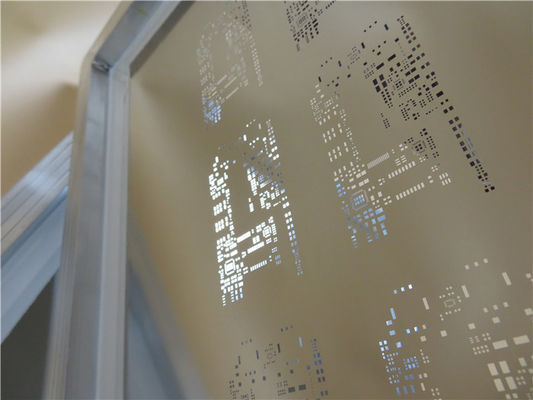

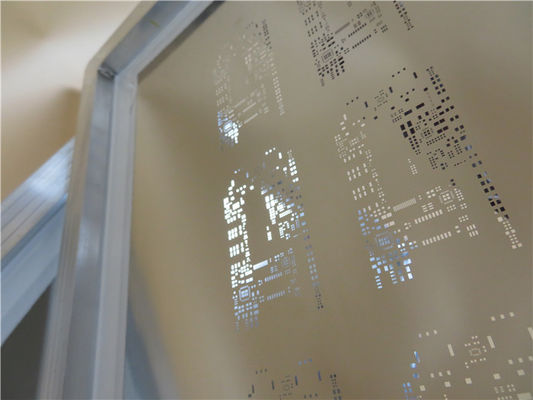

Versatile Laser Cut SMT Stencil 0.12mm Foil for Profile Laser Cut 584mm x 584mm 23" x 23

Introducing the High-Quality SMT Stencil, it is a reliable and indispensable tool designed for the assembly of electronic circuit boards. With its precision laser-cut apertures and durable stainless steel construction, our SMT stencil ensures accurate and efficient solder paste deposition onto PCB pads, facilitating the seamless placement of surface mount components. Let's explore the features and advantages of our SMT stencil in detail.

Features that Set Our SMT Stencil Apart:

1. Precise Laser-Cut Construction:
Our SMT stencil is meticulously crafted using state-of-the-art laser-cutting technology. Each stencil, whether framed or frameless, is 100% laser cut, ensuring precise and accurate apertures for optimal solder paste application.

2. Versatile Size Options:
Choose from a range of stainless steel foil thicknesses, ranging from 0.05mm to 0.4mm, to suit your specific requirements. Our stencils are available in sizes ranging from 300mm x 300mm to 736mm x 736mm, enabling compatibility with various PCB dimensions.

3. Compliance with IPC Standards:
We adhere to the IPC 7525A standard for fabricating our SMT stencils. When supplied with Gerber data, we meticulously manufacture stencils to meet the highest industry standards, ensuring reliability and consistency.

4. Convenient Fiducial Marks:
Our SMT stencils feature half-carved fiducial marks on the back side, making them compatible with SMT machines and facilitating accurate alignment during the assembly process.

5. Secure Packaging:
For convenient shipment, our stencils are carefully packed in KK cartons (hard card). Each shipment typically includes two stencils, ensuring that you have spares on hand.

Aluminum Frame Size Options:

The selection of aluminum frame size depends on your printing machine. We offer the following options:
- Fully automatic printing machines: 736×736mm, 584×584mm, 550mm×650mm, and 550mm×600mm.
- Semi-automatic printing machines: 370mm×470mm and 420mm×520mm.

Construction Details of Our SMT Stencil:

- Frame dimensions: 584mm x 584mm (23" x 23")
- Aperture sizes: 0201, 0402, 0603
- Stainless steel foil thickness: 0.12mm
- Home plate pad design
- Profile: Laser cut
- 0603 pads shrink by 10%
- Fiducial mark: Half etched on the back side

Stencil Statistics:

- Components: 78
- Total Pads: 156
- 0201 Pads: 48
- 0402 Pads: 52
- 0603 Pads: 56
- Home plate pad design: 26

Artwork and Quality Standards:

This SMT stencil is compatible with Gerber RS-274-X artwork files, ensuring seamless integration into your manufacturing process. Additionally, we adhere to the IPC-Class-2 quality standard, guaranteeing reliable and consistent stencil performance.

Worldwide Availability:

The SMT stencil is available for purchase worldwide, allowing engineers and manufacturers from all regions to benefit from its exceptional quality and performance.

Typical Applications:

The SMT stencil is suitable for a wide range of SMD packages, including PLCC, QFP, SOP, SOJ, SOT23, SOT89, SOT143, SOT252, BGA, QFN, and Flip Chip. Whatever your application may be, our stencil will help you achieve precise solder paste application and streamline your assembly process.

Upgrade your PCB Assembly Process with Our SMT Stencil:

Experience the precision and convenience of our high-quality SMT stencil. With its superior construction, accurate apertures, and compatibility with various sizes, our stencil is the ideal choice for achieving reliable and efficient solder paste application.
