4 Layer 0.4mm FR4 Thin PCB Board With Immersion Gold For Data Acquisition

4 Layer 0.4mm FR4 Thin PCB Board With Immersion Gold For Data Acquisition

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-498.V1.0
Base Material:
FR-4
Layer Count:
4 Layers
PCB Thickness:
0.4mm +/-0.04
PCB Size:
181 X 121mm=8UP
Solder Mask:
Green
Silkscreen:
White
Copper Weight:
1oz
Surface Finish:
Immersion Gold
Highlight:

FR4 Thin PCB Board

,

0.4mm Thin PCB Board

,

0.4mm Thin Circuit Board

Product Description

Thin PCB 4 Layer Thiner Circuit Board Built On 0.4mm FR-4 With Immersion Gold for Data Acquisition


1.1 General description
This is a type of 4 layer PCB board built on FR-4 Tg135 substrate for the application of Data Acquisition Systems. It's 0.4 mm thick with white silkscreen on green solder mask and immersion gold on pads. The base material is from ITEQ supplying 8 up boards per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 50 panels are packed for shipment.

1.2 Features and benifits
It's suitable for handheld and consumer applications.
Good oxidation resistance and good heat dissipation.
Comprehensive equipment management and maintenance and process control
UL, ISO9001, IATF16949 certified
Money-saving, Worry-saving and Labor-saving
No MOQ, low cost for prototypes and small runs quantity.

1.3 Applications
GPS Navigator,
Access Control System,
Antenna Wireless,

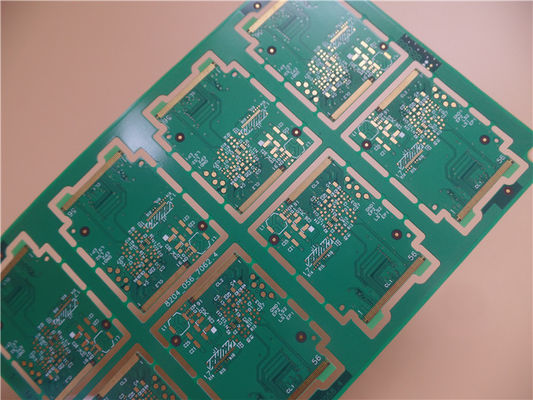

4 Layer 0.4mm FR4 Thin PCB Board With Immersion Gold For Data Acquisition 0
