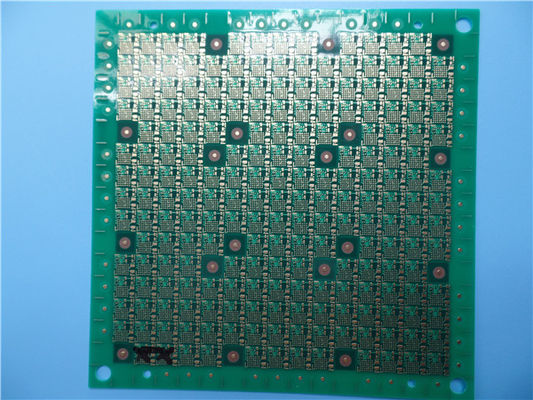

Ultra Thin 0.6mm FR4 PCB Board 6 Layer With Blind Via

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-496.V1.0

Base Material:

Layer Count:

6 Layers

PCB Thickness:

0.6mm ±0.1

PCB Size:

100 X 103mm=1PCS

Solder Mask:

Green

Silkscreen:

Copper Weight:

Outer Layer 35 Um/ Inner Layer 18 Um

Surface Finish:

Immersion Gold

Highlight:

6 Layer FR4 PCB Board

0.6mm FR4 PCB Board

0.6mm Ultra Thin PCB

Product Description

Ultrathin PCB Multilayer Thin PCB 6-layer Thin Printed Circuit Board 0.6mm FR-4 PWB With Blind Via for GPS Tracking

1.1 General description

This is a type of 6 layer ultrathin printed circuit board built on FR-4 substrate with Tg 135°C for the application of GPS Tracking. It's only 0.6 mm thick without silkscreen on green solder mask (Taiyo) and immersion gold on pads. The base material is from Taiwan ITEQ supplying 1 up PCB per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 50 panels are packed for shipment.

1.2 Features and benifits

RoHS compliant and suitable for thermal reliability needs

High solderability, no stressing of circuit boards and less contamination of PCB surface.

Comprehensive equipment management and maintenance and process control

Products and Manufacturing are certified by authorized organizations.

Small quantity order is accepted

Delivery on time: >98%

1.3 Applications

Portable WiFi Router

Commercial Led Lighting

File servers

1.4 Parameter and data sheet

PCB SIZE	100 x 103mm=1PCS
BOARD TYPE	Multilayer PCB
Number of Layers	6 layers
Surface Mount Components	YES
Through Hole Components	NO
LAYER STACKUP	copper ------- 18um(0.5oz)+plate TOP CS
	4mil prepreg
	copper ------- 18um(0.5oz) GND Plane
	4mil FR-4
	copper ------- 18um(0.5oz) PWR Plane
	4mil prepreg
	copper ------- 18um(0.5oz) PWR Plane
	4mil FR-4
	copper ------- 18um(0.5oz) SIG
	4mil prepreg
	copper ------- 18um(0.5oz) BOT PS
TECHNOLOGY
Minimum Trace and Space:	3mil/3mil
Minimum / Maximum Holes:	0.22/3.50mm
Number of Different Holes:	25
Number of Drill Holes:	2315
Number of Milled Slots:	0
Number of Internal Cutouts:	0
Impedance Control	no
BOARD MATERIAL
Glass Epoxy:	FR-4, ITEQ IT140 TG>135, er<5.4
Final foil external:	1oz
Final foil internal:	0.5oz
Final height of PCB:	0.6mm ±0.1
PLATING AND COATING
Surface Finish	Immersion gold 0.025µm over 3µm Nickel (14.4% area)
Solder Mask Apply To:	TOP and Bottom, 12micron Minimum
Solder Mask Color:	Green, TAIYO PSR-2000 GT600D
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	No silkscreen requried.
Colour of Component Legend	No silkscreen requried.
Manufacturer Name or Logo:	No silkscreen requried.
VIA	Plated through hole(PTH), Blind via and via capping on CS and PS, vias not be visible.
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059" (0.15mm)
Board plating:	0.0030" (0.076mm)
Drill tolerance:	0.002" (0.05mm)
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.
