0.5mm FR4 PCB Board Thin Circuit Board For GPS Tracker

0.5mm FR4 PCB Board Thin Circuit Board For GPS Tracker
0.5mm FR4 PCB Board Thin Circuit Board For GPS Tracker 0.5mm FR4 PCB Board Thin Circuit Board For GPS Tracker 0.5mm FR4 PCB Board Thin Circuit Board For GPS Tracker 0.5mm FR4 PCB Board Thin Circuit Board For GPS Tracker 0.5mm FR4 PCB Board Thin Circuit Board For GPS Tracker 0.5mm FR4 PCB Board Thin Circuit Board For GPS Tracker

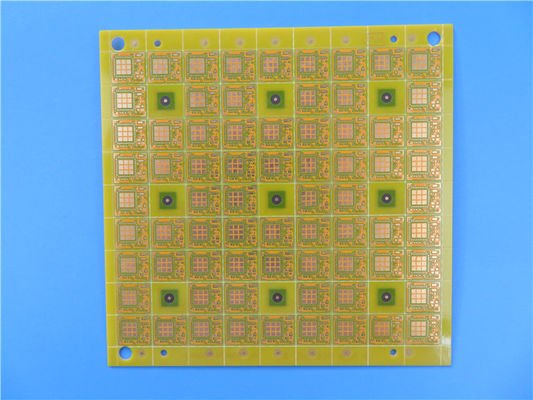

Large Image :  0.5mm FR4 PCB Board Thin Circuit Board For GPS Tracker

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-495.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: FR-4 Layer Count: 4 Layers
PCB Thickness: 0.52-0.56mm PCB Size: 100 X 105mm=72PCS
Solder Mask: Green Silkscreen: N/A
Copper Weight: Outer Layer 35 Um/ Inner Layer 18 Um Surface Finish: Immersion Gold
High Light:

0.5mm FR4 PCB Board

,

Thin FR4 PCB Board

,

0.5mm Thin Circuit Board


Thin PCB Mulitlayer Thin PCB Board 0.5mm FR-4 Thin Circuit Board 4 Layer Thin PC Board for GPS Tracker

1.1 General description
This is a type of 4 layer ultrathin PCB board built on FR-4 substrate with Tg 135°C for the application of GPS Tracker For Kids. It's only 0.5 mm thick without silkscreen on yellow solder mask (Taiyo) and immersion gold on pads. The base material is from Taiwan ITEQ supplying 72 up PCB per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 50 panels are packed for shipment.

1.2 Features and benefits
RoHS compliant and suitable for thermal reliability needs
Long storage time ( It can be stored for more than 1 year in vacuum bag)
Impedance control test and solder-ability test
16000 square meter workshop
Hassle-free, one-to-one after-sales service
No MOQ, low cost for prototypes and small runs quantity.

1.3 Applications
Surveillance Systems
Grid Tie Inverter
Embedded Systems Applications
Printers

0.5mm FR4 PCB Board Thin Circuit Board For GPS Tracker 0

1.4 Parameter and data sheet
PCB SIZE 100 x 105mm=72PCS
BOARD TYPE Multilayer PCB
Number of Layers 4 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 18um(0.5oz)+plate TOP CS
4mil prepreg
copper ------- 18um(0.5oz) GND Plane
5mil FR-4
copper ------- 18um(0.5oz) PWR Plane
4mil prepreg
copper ------- 18um(0.5oz) PWR Plane
TECHNOLOGY
Minimum Trace and Space: 4mil/4mil
Minimum / Maximum Holes: 0.3/2.50mm
Number of Different Holes: 31
Number of Drill Holes: 2315
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control no
BOARD MATERIAL
Glass Epoxy: FR-4, ITEQ IT140 TG>135, er<5.4
Final foil external: 1oz
Final foil internal: 0.5oz
Final height of PCB: 0.52-0.56mm
PLATING AND COATING
Surface Finish Immersion gold 0.025µm over 3µm Nickel (14.9% area)
Solder Mask Apply To: TOP and Bottom, 12micron Minimum
Solder Mask Color: Yellow, Taiyo PSR-2000GT600D
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend No silkscreen requried.
Colour of Component Legend No silkscreen requried.
Manufacturer Name or Logo: No silkscreen requried.
VIA Plated through hole(PTH), Via in Pad and via capping on CS and PS, vias should not be visible.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
