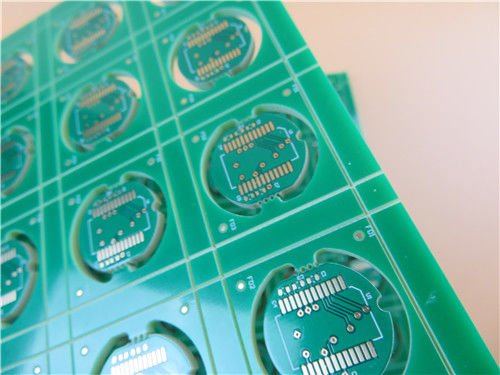

| Base Material: | FR-4 | Layer Count: | 2 Layers |
|---|---|---|---|
| PCB Thickness: | 3.0 Mm ±0.3 | PCB Size: | 225 X 290mm=48PCS |
| Solder Mask: | Green | Silkscreen: | White |
| Copper Weight: | 1oz | Surface Finish: | Immersion Gold |
| High Light: | Thick Double Sided PCB,3.0mm Double Sided PCB,3.0mm Thick PCB Board |
||
| PCB SIZE | 225 x 290mm=48PCS |
| BOARD TYPE | Double Sided PCB |
| Number of Layers | 2 Layer |
| Surface Mount Components | YES |
| Through Hole Components | no |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP layer |
| FR-4 2.9mm | |
| copper ------- 18um(0.5oz)+plate BOT layer | |
| TECHNOLOGY | |
| Minimum Trace and Space: | 10 mil / 9 mil |
| Minimum / Maximum Holes: | 0.4 mm / 0.8 mm |
| Number of Different Holes: | 2 |
| Number of Drill Holes: | 27 |
| Number of Milled Slots: | 56 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 Tg135℃, er<5.4.IT-158, ITEQ Supplied |
| Final foil external: | 1 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 3.0 mm ±0.3 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold (32.1% ) 0.05µm over 3µm nickel |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo Supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, stamp holes. |
| MARKING | |
| Side of Component Legend | TOP and Bottom. |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo brand |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated through hole(PTH), minimum size 0.4mm. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
