Blank Epoxy 1.5mm 94V0 Plastic PCB Spacer With No Surface Finish

Products

Metal Core PCB

Ms. Ivy Deng

sales10@bichengpcb.com

86-755-27374847

Contact Now

Blank Epoxy 1.5mm 94V0 Plastic PCB Spacer With No Surface Finish

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-490.V1.0

Base Material:

Layer Count:

PCB Thickness:

1.5mm ±0.05

PCB Size:

99.79 X 75.67 Mm =1UP

Solder Mask:

Silkscreen:

Copper Weight:

Surface Finish:

Highlight:

1.5mm Plastic PCB Spacer

94V0 Plastic PCB Spacer

94V0 Circuit Board Spacer

Product Description

FR-4 PCB Spacer Block Blank Epoxy Board 1.5mm Fiber Board 94V0 Plastic Board

1.1 General description

This is a type of PCB spacer built on FR-4 substrate with Tg 135°C for the application of Portable Transceiver. It's 1.5 mm thick without copper pattern, no silkscreen and solder mask and surface finish either. The base material is from ILM supplying single PCB per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 boards are packed for shipment.

1.2 Features and benifits

Lead free assemblies with a maximum reflow temperature of 260℃;

It’s suitable for handheld and consumer applications;

Delivery on time. Higher than 98% on-time-delivery rate;

Products and Manufacturing are certified by authorized organizations;

Hassle-free, one-to-one after-sales service;

Coupon policy for new customer;

No MOQ, low cost for prototypes and small runs quantity;

Free stencil shim sent for new user.

1.3 Parameter and data sheet

Number of Layers	N/A
Board Type	Blank Spacer
Board Size	99.79 x 75.67 mm =1UP
Board Thickness	1.5mm +/-0.15
Board Material	FR-4
Board Material Supplier	ILM
Tg Value of Board Material	TG135℃

PTH Cu thickness	N/A
Inner Iayer Cu thicknes	N/A
Surface Cu thickness	N/A

Solder Mask Type and Model No.	N/A
Solder Mask Supplier	N/A
Solder Mask Colour	N/A
Number of Solder Masks	N/A
Thickness of Solder Mask	N/A

Type of Silkscreen Ink	N/A
Supplier of Silkscreen	N/A
Color of Silkscreen	N/A
Number of Silkscreen	N/A

Mininum Trace (mil)	N/A
Minimum Gap(mil)	N/A

Surface Finish	N/A
RoHS Required	Yes
Warpage	0.15%

Thermal Shock Test	Pass, 288±5℃,10 seconds, 3 cycles. No delamination, no blistering.
Solderablity Test	N/A
Function	visual inspection
Workmanship	Compliance with IPC-A-600H & IPC-6012C Class 2

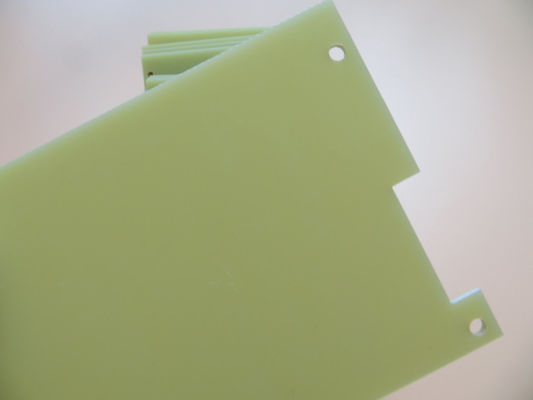

Blank Epoxy 1.5mm 94V0 Plastic PCB Spacer With No Surface Finish 2
