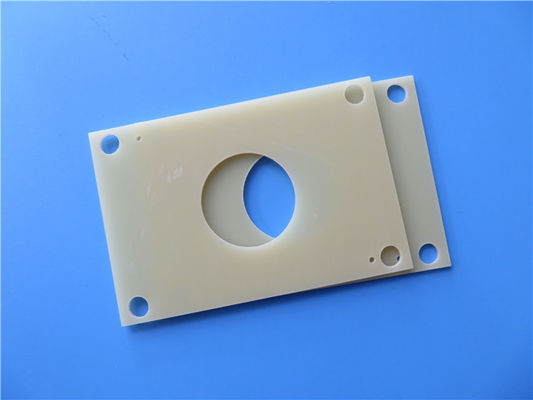

No Copper 1.5mm FR4 PCB Board With Drill Holes

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-489.V1.0

Base Material:

Layer Count:

PCB Thickness:

1.5mm +/-0.15

PCB Size:

78.36 X 52.83mm=1UP

Solder Mask:

Silkscreen:

Highlight:

No Copper FR4 PCB Board

1.5mm FR4 PCB Board

1.5mm No Copper PCB

Product Description

PCB Spacer FR-4 Spacer Block Space Bar On 1.5mm FR4 with Drill Holes only

1.1 General description

This is a type of no copper PCB built on FR-4 Tg135 substrate for the application of spacer. It's 1.57 mm thick without mask. The base material is from ILM supplying 1 up single board. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.

1.2 Features and benifits

It's suitable for handheld and consumer applications.

Excellent dimensionaly stability

PCB manufacturing on required specifications.

Delivery on time. Higher than 98% on-time-delivery rate.

RoHS materials

Experienced sales persons and skilled customer services

1.3 Parameter and data sheet

Number of Layers	N/A
Board Type	Blank Spacer
Board Size	78.36 x 52.83mm=1UP
Board Thickness	1.5mm +/-0.15
Board Material	FR-4
Board Material Supplier	ILM
Tg Value of Board Material	TG135℃

PTH Cu thickness	N/A
Inner Iayer Cu thicknes	N/A
Surface Cu thickness	N/A

Solder Mask Type and Model No.	N/A
Solder Mask Supplier	N/A
Solder Mask Colour	N/A
Number of Solder Masks	N/A
Thickness of Solder Mask	N/A

Type of Silkscreen Ink	N/A
Supplier of Silkscreen	N/A
Color of Silkscreen	N/A
Number of Silkscreen	N/A

Mininum Trace (mil)	N/A
Minimum Gap(mil)	N/A

Surface Finish	N/A
RoHS Required	Yes
Warpage	0.15%

Thermal Shock Test	Pass, 288±5℃,10 seconds, 3 cycles. No delamination, no blistering.
Solderablity Test	N/A
Function	visual inspection
Workmanship	Compliance with IPC-A-600H & IPC-6012C Class 2
