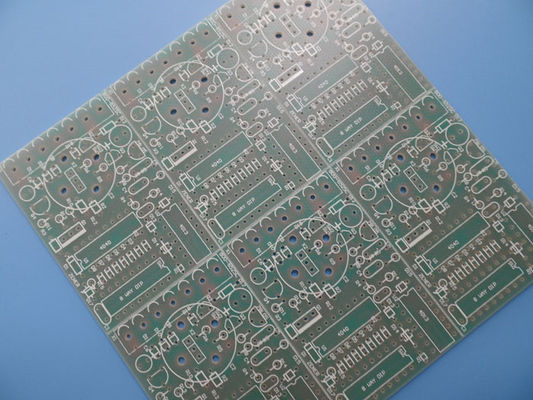

RoHS materials FR4 substrate Single Sided PCB Lead free For Transformer

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-488.V1.0

Base Material:

Layer Count:

1 Layer

PCB Thickness:

1.6mm ±0.16

PCB Size:

108.3x 110.6mm=6PCS

Solder Mask:

Gloss Green

Silkscreen:

White

Copper Weight:

Surface Finish:

Hot Air Soldering Leveling(HASL),lead Free

Highlight:

RoHS Materials Single Sided PCB

FR4 Substrate Single Sided PCB

RoHS Single Layer PCB

Product Description

Single Sided PCB Simple Single Layer Circuit Board Tin/Lead Plated PCBs for Transformer

1.1 General description

This is a type of 1 layer printed circuit board built on FR-4 substrate with Tg 130°C for the application of Transformer. It's 1.6 mm thick with white silkscreen(Taiyo) on green solder mask (Taiyo) and HASL on pads. The base material is from Taiwan ITEQ supplying 6 up PCB per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.

1.2 Features and benifits

Lead free assemblies with a maximum reflow temperature of 260℃.

Excellent wetting during component soldering and it can avoid copper corrosion.

ISO9001, ISO14001, UL certified manufacturing factory.

Micro-section and thermal stress test

RoHS materials

No MOQ, low cost for prototypes and small runs quantity.

1.3 Applications

Router WiFi

2.4 Ghz Antenna

Microstrip Antenna

Embedded Technology

1.4 Parameter and data sheet

PCB SIZE	108.3x 110.6mm=6PCS
BOARD TYPE	Single sided PCB
Number of Layers	1 layer
Surface Mount Components	no
Through Hole Components	YES
LAYER STACKUP	Copper ------- 35um(1oz) TOP layer
LAYER STACKUP	FR-4 1.5 mm
TECHNOLOGY
Minimum Trace and Space:	7mil/8.3mil
Minimum / Maximum Holes:	0.4/5.54mm
Number of Different Holes:	9
Number of Drill Holes:	88
Number of Milled Slots:	0
Number of Internal Cutouts:	0
Impedance Control	no
BOARD MATERIAL
Glass Epoxy:	FR-4 1.5mm, Tg>130℃
Final foil external:	1oz
Final foil internal:	0oz
Final height of PCB:	1.6mm ±0.16
PLATING AND COATING
Surface Finish	Hot air soldering leveling(HASL),lead free, Sn>=2.54µm
Solder Mask Apply To:	Bottom, 12micron Minimum
Solder Mask Color:	Gloss Green, Taiyo PSR-2000GT600D
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	Bottom
Colour of Component Legend	White, IJR-4000 MW300, Taiyo Supplied.
Manufacturer Name or Logo:	No special requirement
VIA	Non Plated Through Hole(NPTH)
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059" (0.15mm)
Board plating:	0.0030" (0.076mm)
Drill tolerance:	0.002" (0.05mm)
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.
