1oz RF PCB Single Layer Printed Circuit Board With HASL Lead Free

Products

Metal Core PCB

Ms. Ivy Deng

sales10@bichengpcb.com

86-755-27374847

Contact Now

1oz RF PCB Single Layer Printed Circuit Board With HASL Lead Free

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-487.V1.0

Base Material:

Layer Count:

1 Layer

PCB Thickness:

1.6mm ±0.16

PCB Size:

62 X 41.6mm=1PCS

Solder Mask:

Gloss Green

Copper Weight:

Surface Finish:

Hot Air Soldering Leveling(HASL),lead Free

Highlight:

HASL Single Layer Printed Circuit Board

1oz Single Layer Printed Circuit Board

1oz Single Sided PCB Board

Product Description

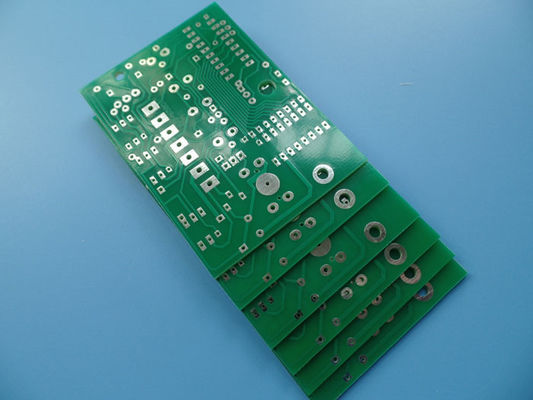

Single Layer Printed Circuit Board Single Sided FR-4 PCB With HASL Lead Free for Switch

1.1 General description

This is a type of single layer printed circuit board built on FR-4 substrate with Tg 130°C for the application of switch. It's 1.6 mm thick without silkscreen on green solder mask (Taiyo) and HASL on pads. The base material is from Taiwan ITEQ supplying 1 up PCB per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.

1.2 Features and benifits

Excellent wetting during component soldering and it can avoid copper corrosion.

Right manufacturing instruction (MI)

Free stencil shim sent for new user

1.3 Applications

Electric Motors

Outdoor WiFi Antenna

Waveform Generator

Isolated DC DC Converter

Physical Access Control Systems

1.4 Parameter and data sheet

PCB SIZE	62 x 41.6mm=1PCS
BOARD TYPE	Single sided PCB
Number of Layers	1 layer
Surface Mount Components	no
Through Hole Components	YES
LAYER STACKUP	Copper ------- 35um(1oz) TOP layer
LAYER STACKUP	FR-4 1.5 mm
TECHNOLOGY
Minimum Trace and Space:	8mil/9mil
Minimum / Maximum Holes:	0.5/7.1mm
Number of Different Holes:	5
Number of Drill Holes:	47
Number of Milled Slots:	0
Number of Internal Cutouts:	0
Impedance Control	no
BOARD MATERIAL
Glass Epoxy:	FR-4 1.5mm, Tg>130℃
Final foil external:	1oz
Final foil internal:	0oz
Final height of PCB:	1.6mm ±0.16
PLATING AND COATING
Surface Finish	Hot air soldering leveling(HASL),lead free, Sn>=2.54µm
Solder Mask Apply To:	Bottom, 12micron Minimum
Solder Mask Color:	Gloss Green, Taiyo PSR-2000GT600D
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	no silkscreen required
Colour of Component Legend	no silkscreen required
Manufacturer Name or Logo:	No special requirement
VIA	Non Plated Through Hole(NPTH)
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059" (0.15mm)
Board plating:	0.0030" (0.076mm)
Drill tolerance:	0.002" (0.05mm)
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

1.5 Our Driving Circuit Boards Capabilities 2020

1. Blind vias, Buried vias N+8+N

2. Flexible Printed Circuits

3. Heavy Copper Boards 10oz

4. IPC Class 2, IPC Class 3

5. Lead Free PCB (RoHS Compliant)

6. Multi-layer PCBs to 32

7. Metal Core PCB (MCPCB)

8. RoHS Compliant PCB Manufacturer

9. Rigid Flex PCB

10. RF PCB / High Frequency PCB

11. Through-hole, BGA, Gold Finger, Edge dome

12. Via-in-pad, Filled vias
