4 Layers Copper 35um FR4 PCB Board Matt Black Mask
  • name
  • name
  • name

4 Layers Copper 35um FR4 PCB Board Matt Black Mask

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-485.V1.0
Base Material:
FR-4
Layer Count:
4 Layers
PCB Thickness:
1.6mm
PCB Size:
320 X 151=6 PCS
Solder Mask:
Matt Black
Silkscreen:
White
Copper Weight:
Outer Layer 35 Um/ Inner Layer 18 Um
Surface Finish:
Immersion Gold
Highlight:

4 Layers FR4 PCB Board

,

Copper 35um FR4 PCB Board

,

Copper 35um 4 Layer PCB Board

Product Description



Prototype PCB Sample Fabrication with 50 Ohm Impedance Built On FR-4 With Matt Black Mask and Immersion Gold


1.1 General description
This is a type of 4 layers impedance controlled PCB built on FR-4 substrate with Tg 170°C for the application of POS System. 50 ohm coplanar impedance with 15mil track/11mil space on bottom layer 4. It's 1.60 mm thick, white silkscreen on matt black solder mask covering both sides and immersion gold on pads. The base material is FR-4 IT180 from ITEQ Corp., entire board supplying 6 PCBs per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.

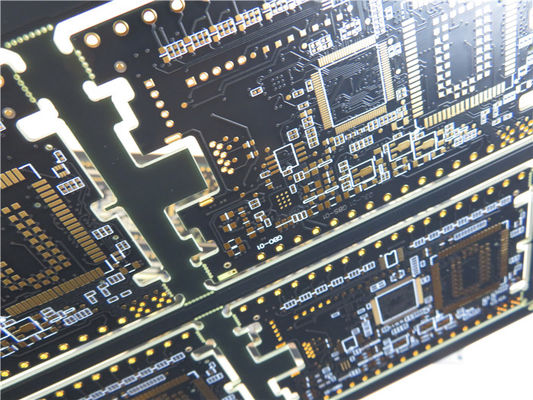

4 Layers Copper 35um FR4 PCB Board Matt Black Mask 0

1.2 Features and benifits
Industrial standard material with high Tg (175℃ by DSC) and excellent thermal reliability;
Lead free assemblies with a maximum reflow temperature of 260℃;
Excellent surface planarity, helpful for PCBs with BGA packages to reduce failure rate during assembly and soldering;
Engineering design prevents problems from occurring in pre production;
Diversified shipping method;
IPC Class 2 / IPC Class 3;

1.3 Applications
Rf Generator
Tracking GPS
Phase Shifters

1.4 Parameter and data sheet
PCB SIZE 320 x 151=6 PCS
BOARD TYPE Multilayer PCB
Number of Layers 4 layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 17.8um(0.5oz)+plate TOP layer
Prepreg 0.21mm
copper ------- 17.8um(0.5oz) MidLayer 1
FR-4 1.0mm
copper ------- 17.8um(0.5oz) MidLayer 2
Prepreg 0.21mm
copper ------- 17.8um(0.5oz)+plate BOT layer
TECHNOLOGY
Minimum Trace and Space: 5.9 mil / 5.9 mil
Minimum / Maximum Holes: 0.3 mm / 3.175 mm
Number of Different Holes: 9
Number of Drill Holes: 1120
Number of Milled Slots: 24
Number of Internal Cutouts: 0
Impedance Control: 50 ohm coplanar impedance with 15mil track/11mil space on bottom layer 4
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: FR-4 Tg170℃, er<5.4. S1000-2, Shengyi
Final foil external: 1 oz
Final foil internal: 0.5 oz
Final height of PCB: 1.6 mm ±0.16
PLATING AND COATING
Surface Finish Immersion gold (22.1% ) 0.1µm over 3µm nickel
Solder Mask Apply To: TOP and Bottom, 12micron Minimum
Solder Mask Color: Matt Black, PSR-2000 ME8-160PS
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP and Bottom
Colour of Component Legend White, S-380W, Taiyo brand
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated through hole(PTH), minimum size 0.3mm.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

4 Layers Copper 35um FR4 PCB Board Matt Black Mask 1

1.5 Capability of Fast Delivery
Types Normal Lead time (≦1㎡) Fast Lead Time (≦1㎡)
2L 5 Days 1 Day
4L 5 Days 2 Days
6L 6 Days 3 Days
8L 7 Days 4 Days
10L 9 Days 6 Days
12L 10 Days 6 Days
14L 13 Days 7 Days
16L 14 Days 7 Days
18L 15 Days 9 Days
20L 16 Days 10 Days
22L 17 Days 11 Days
24L 18 Days 12 Days
26L 19 Days 13 Days
28L 20 Days 14 Days
30L 21 Days 15 Days
32L 22 Days 16 Days
>32 Layers Pending Pending



Note:

1.The lead time is for new order.

2.Exclude Sunday, holidays.

3.There's Order limitation every day.

4.Exclude shipping time.

5.Exclude special technics, such as heavy copper, peelable mask, blind/buried via etc.

6.Exclude communications for engineering questions.



Tags:

FR4 PCB Board,

6 Layer FR4 PCB Board,

Mobile Broadband Gold Finger PCB
