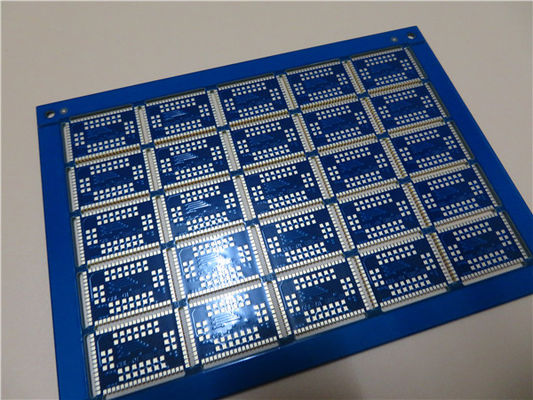

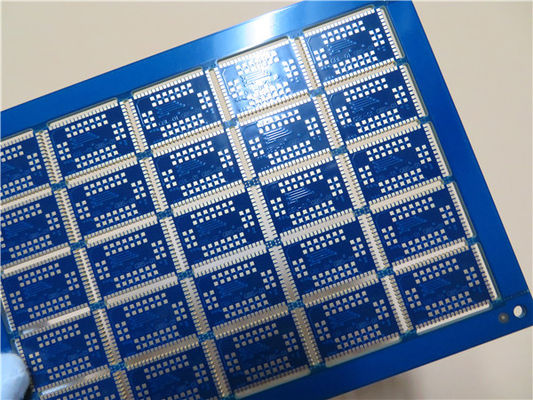

Multilayer PCB Blue Solder Mask Copper 35um Circuit Board With Edge Castellated Plating

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-484.V1.0

Base Material:

Layer Count:

4 Layers

PCB Thickness:

1.6mm ±0.16

PCB Size:

160.06 X 114.2mm=25PCS

Solder Mask:

Silkscreen:

White

Copper Weight:

Outer Layer 35 Um/ Inner Layer 18 Um

Surface Finish:

Immersion Gold

Highlight:

Castellated Multilayer PCB Circuit Board

35um Multilayer PCB Circuit Board

35um Castellated Circuit Board

Product Description

PCB Prototype Manufacturing Multilayer PCB Circuit Board Built On FR-4 With Edge Catellated Plating

1.1 General description

This is a type of multilayer PCB built on FR-4 substrate with Tg 135°C for the application of Atomic accelerators . It's 1.6 mm thick with white silkscreen(Taiyo) on blue solder mask (Onstatic) and immersion gold on pads. The base material is from Shengyi supplying 25 up PCBs per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.

1.2 Features and benifits

Lead free assemblies with a maximum reflow temperature of 260℃.

Good oxidation resistance and good heat dissipation.

Good shielding effect

Electrical test and high voltage test

8000 types of PCB per month

No minimum order quantity. 1 piece is available.

Free-of-charge PCB prototype test

1.3 Applications

GPS Tracking Device

Electrical Transformers

USB Modems

Portable Sound Systems

Game Player

1.4 Parameter and data sheet

PCB SIZE	160.06 x 114.2mm=25PCS
BOARD TYPE	Multilayer PCB
Number of Layers	4 layer PCB
Surface Mount Components	YES
Through Hole Components	YES
LAYER STACKUP	Top layer --- 0.018mm +plating
	PP 2116 (54%) + 1080(64%)+2116(54%)
	Innerlayer 1 --- 0.018mm
	Core FR-4 --- 0.79mm
	Innerlayer 2 --- 0.018mm
	PP 2116 (54%) + 1080(64%)+2116(54%)
	Bottom layer --- 0.018mm +plating
TECHNOLOGY
Minimum Trace and Space:	7.8 mil / 7.1 mil
Minimum / Maximum Holes:	0.4 mm /3.175 mm
Number of Different Holes:	5
Number of Drill Holes:	491
Number of Milled Slots:	60
Number of Internal Cutouts:	0
Impedance Control:	0
Number of Gold finger:	0
BOARD MATERIAL
Glass Epoxy:	FR-4 Tg135℃, S1141, Shengyi
Final foil external:	1 oz
Final foil internal:	0.5 oz
Final height of PCB:	1.6mm ±0.16
PLATING AND COATING
Surface Finish	Immersion gold (22.5% ) 0.1µm over 3µm nickel
Solder Mask Apply To:	TOP and Bottom, 12micron Minimum
Solder Mask Color:	Blue, R-500 BL, Onstatic
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	TOP and Bottom.
Colour of Component Legend	White, S-380W, Taiyo
Manufacturer Name or Logo:	Marked on the board in a conductor and leged FREE AREA
VIA	plated through hole(PTH), minimum size 0.3mm.
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059"
Board plating:	0.0029"
Drill tolerance:	0.002"
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

1.5 Capability of Fast Delivery

Types	Normal Lead time (≦1m²)	Fast Lead Time (≦1m²)
2L	5 Days	1 Day
4L	5 Days	2 Days
6L	6 Days	3 Days
8L	7 Days	4 Days
10L	9 Days	6 Days
12L	10 Days	6 Days
14L	13 Days	7 Days
16L	14 Days	7 Days
18L	15 Days	9 Days
20L	16 Days	10 Days
22L	17 Days	11 Days
24L	18 Days	12 Days
26L	19 Days	13 Days
28L	20 Days	14 Days
30L	21 Days	15 Days
32L	22 Days	16 Days
>32 Layers	Pending	Pending

Note:

1.The lead time is for new order

2.Exclude Sunday, holidays

3.There's Order limitation every day.

4.Exclude shipping time

5.Exclude special technics, such as heavy copper, peelable mask, blind/buried via etc.

6.Exclude communications for engineering questions.
