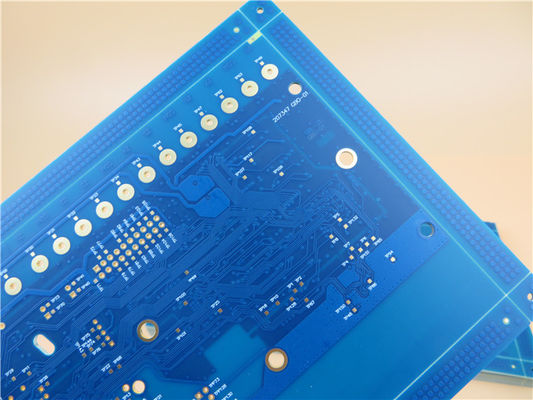

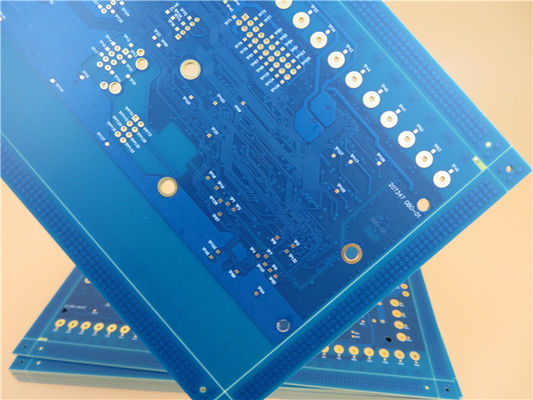

Matt Blue 50 Ohm Impedance Controlled PCB for Medical Equipment

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-471.V1.0

Base Material:

Layer Count:

4 Layers

PCB Thickness:

1.6 Mm ±0.16

PCB Size:

250x 130=1 PCS

Solder Mask:

Matt Blue

Silkscreen:

White

Copper Weight:

Surface Finish:

Immersion Gold

Highlight:

Matt Blue Medical Equipment PCB

50 Ohm Medical Equipment PCB

50 Ohm Impedance Controlled PCB

Product Description

Impedance Controlled PCB 50 Ohm Impedance Circuit Board Matt Blue PCB for Audio Adapter

1.1 General description

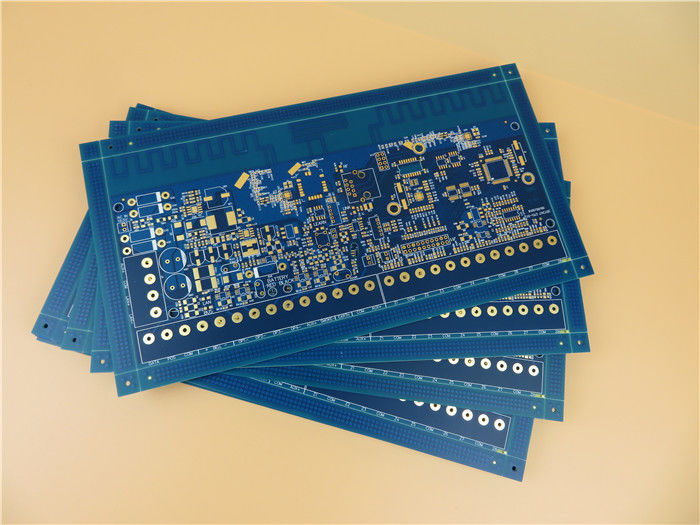

This is a type of matt blue PCB built on FR-4 substrate with Tg 170°C for the application of bluetooth audio adapter. It's a 4 layer board at 1.60 mm thick with 1oz outer layer and half ounce inner layer. White silkscreen over matt blue solder mask on both top and bottom side. Surface finish is immersion gold on pads. There's 50 ohm coplanar impedance with 15mil track /12mil space on top layer. The base material is used from ITEQ IT-180, entire board supplying 1 up per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.

1.2 Features and benifits

Industrial standard material with high Tg (175℃ by DSC) and excellent thermal reliability;

Excellent thermal reliability and CAF resistance providing long-term reliability for industrial and automobile application;

RoHS compliant and suitable for high thermal reliability needs;

High solderability, no stressing of circuit boards and less contamination of PCB surface;

SMT process is resistant to reflow soldering, resistant to rework;

Comprehensive equipment management and maintenance and process control;

Strict WIP inspection and monitoring as well as working instruction;

AOI inspection;

Money-saving, Worry-saving and Labor-saving;

UL, ISO14001, IATF16949 certified;

1.3 Applications

Tracker GPS

Electronics Components

DSL Wireless Router

AC To DC Rectifier

Embedded Computer Systems

1.4 Parameter and data sheet

PCB SIZE	250x 130=1 PCS
BOARD TYPE	Multilayer PCB
Number of Layers	4 layers
Surface Mount Components	YES
Through Hole Components	YES
LAYER STACKUP	copper ------- 17.8um(0.5oz)+plate TOP layer
	Prepreg 0.203mm (8mil) thick, FR-4
	copper ------- 17.8um(0.5oz) MidLayer 1
	Core 1.0mm (39mil) FR-4
	copper ------- 17.8um(0.5oz) MidLayer 2
	Prepreg 0.203mm (8mil) thick, FR-4
	copper ------- 17.8um(0.5oz)+plate BOT layer
TECHNOLOGY
Minimum Trace and Space:	5.9 mil / 5.0 mil
Minimum / Maximum Holes:	0.8 mm / 3.85 mm
Number of Different Holes:	11
Number of Drill Holes:	527
Number of Milled Slots:	0
Number of Internal Cutouts:	0
Impedance Control:	50 ohm coplanar impedance with 15mil track /12mil space on top layer
Number of Gold finger:	0
BOARD MATERIAL
Glass Epoxy:	FR-4 Tg170℃, er<5.4.IT-180, ITEQ Supplied
Final foil external:	1 oz
Final foil internal:	0.5 oz
Final height of PCB:	1.6 mm ±0.16
PLATING AND COATING
Surface Finish	Immersion gold (22.1% ) 0.05µm over 3µm nickel
Solder Mask Apply To:	TOP and Bottom, 12micron Minimum
Solder Mask Color:	Matt Blue, KSM-6189BLM1
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing, v-groove
MARKING
Side of Component Legend	TOP and Bottom.
Colour of Component Legend	White, IJR-4000 MW300, Taiyo brand
Manufacturer Name or Logo:	Marked on the board in a conductor and leged FREE AREA
VIA	Plated through hole(PTH), minimum size 0.8mm.
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059"
Board plating:	0.0029"
Drill tolerance:	0.002"
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

1.5 Impedance PCB- Impedance match

If there is signal transmission in the circuit board, it is expected to be smoothly transmitted from the sending end to the receiving end under the condition of minimum energy loss, and the receiving end can completely absorbs it without any reflection. To achieve this kind of transmission, the impedance of the circuit must be equal to the internal impedance of the sending end, which is called "impedance match."

So when the signal is transmitted in the PCB, the characteristic impedance of the PCB board must be matched with the electronic impedance of the head and tail components. Once the impedance value exceeds the tolerance, the transmitted signal energy will be reflected, scattered, attenuated or delayed, resulting in incomplete signal and signal distortion.

Impedance match is one of the design elements when designing high-speed PCB circuits. However, the impedance value is absolutely related with wiring mode. For example, whether wiring on the surface layer or inner layer, the distance from the reference power layer or ground layer, the width of wiring, the PCB material, etc. will affect the characteristic impedance of wiring. That is to say, the impedance value can be determined only after wiring layout, while the characteristic impedance produced by different PCB manufacturers is also slightly different. The wiring layout condition of impedance discontinuity cannot be completely considered in general simulation software due to the limitation of the circuit model or the mathematical algorithm used. In this case, only some temninators, such as series resistors, can be reserved on the schematic diagram to mitigate the effect of discontinuous wiring impedance. The method to completely solve the problem is still trying to avoid the occurrence of impedance discontinuities when wiring layout.
