4 Layers 1.4mm 1oz Medical Equipment PCB Immersion Gold PCB
  • name
  • name
  • name
  • name

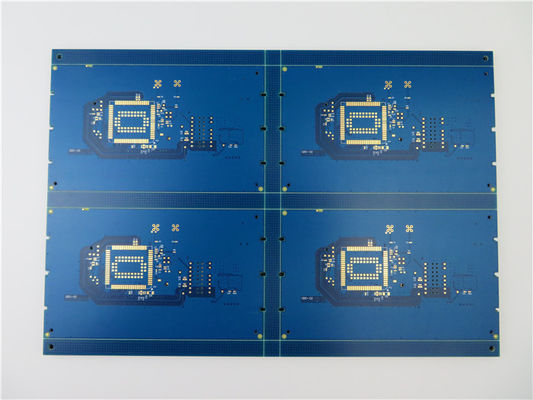

4 Layers 1.4mm 1oz Medical Equipment PCB Immersion Gold PCB

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-467.V1.0
Base Material:
FR-4
Layer Count:
4 Layers
PCB Thickness:
1.4 Mm ±0.14
PCB Size:
285 X 195=4 PCS
Solder Mask:
Matt Blue
Silkscreen:
White
Copper Weight:
1oz
Surface Finish:
Immersion Gold
Highlight:

1.4mm Medical Equipment PCB

,

1oz Medical Equipment PCB

,

1oz Immersion Gold PCB

Product Description

Immersion Gold PCB ENIG Circuit Board Soft Gold PCB Chemical Gold Circuits for Intercom System

1.1 General description
This is a type of matt blue PCB built on FR-4 substrate with Tg 130°C for the application of intercom system. It's a 4 layer board at 1.40 mm thick with 1oz outer layer and half ounce inner layer. White silkscreen over matt blue solder mask on both top and bottom side. Surface finish is immersion gold on pads. The base material is used from ITEQ IT-158, entire board supplying 4 up per panel. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 25 panels are packed for shipment.

1.2 Features and benifits
It’s suitable for handheld and consumer applications;
RoHS compliant and suitable for thermal reliability needs;
Excellent surface planarity, helpful for PCBs with BGA packages to reduce failure rate during assembly and soldering;
SMT process is resistant to reflow soldering, resistant to rework;
Experienced sales persons and skilled customer services;
No minimum order quantity and low cost sample;
Focus on low to medium volume production;
Delivery on time: >98%
Customer complaint rate: <1%
No quality complaint is meant to save money;

4 Layers 1.4mm 1oz Medical Equipment PCB Immersion Gold PCB 0

1.3 Applications
Intercom
Spread Spectrum
Phone Signal Booster
Vehicle Tracking Devices
AC DC Transformer

1.4 Parameter and data sheet
PCB SIZE 285 x 195=4 PCS
BOARD TYPE Multilayer PCB
Number of Layers 4 layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 17.8um(0.5oz)+plate TOP layer
Prepreg 1 x 1080 + 1 x 2116
copper ------- 17.8um(0.5oz) MidLayer 1
FR-4 1.0mm
copper ------- 17.8um(0.5oz) MidLayer 2
Prepreg 1 x 1080 + 1 x 2116
copper ------- 17.8um(0.5oz)+plate BOT layer
TECHNOLOGY
Minimum Trace and Space: 5.9 mil / 5.8 mil
Minimum / Maximum Holes: 0.775 mm / 2.0 mm
Number of Different Holes: 4
Number of Drill Holes: 217
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: FR-4 Tg130℃, er<5.4.IT-158, ITEQ Supplied
Final foil external: 1 oz
Final foil internal: 0.5 oz
Final height of PCB: 1.4 mm ±0.14
PLATING AND COATING
Surface Finish Immersion gold (22.1% ) 0.1µm over 3µm nickel
Solder Mask Apply To: TOP and Bottom, 12micron Minimum
Solder Mask Color: Matt Blue, KSM-6189BLM1
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing, v-groove
MARKING
Side of Component Legend TOP and Bottom.
Colour of Component Legend White, IJR-4000 MW300, Taiyo brand
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated through hole(PTH), minimum size 0.78mm.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

4 Layers 1.4mm 1oz Medical Equipment PCB Immersion Gold PCB 1

1.5 Advantages of PCB Boards with Electroless Nickel and Immersion Gold
(1) Flat Surface
The most important feature is that the surface of all pads is perfectly flat, corresponding to the underlying copper surface, with all pad and track edges covered by nickel/gold.

(2) Low Defect Rate
An important reason for choosing immersion gold surface protection is a highly reduced failure rate during assembly and soldering compared with solder-coated and hot-air leveled boards. It is especially true of fine line boards with a component pitch of 0.5 mm (20 mils) or less.

(3) Solderability
Solderability is high but the soldering time is a little longer (about 5 seconds.) compared with wave soldering (3seconds.)

(4) Stressing of Boards
Because the PCB boards have not been exposed to high temperatures, no stressing of the plated-through holes will occur. So the low-temperature processes is that no delamination of the laminate will take place.

(5) Dimensional Stability
Since the boards are not subjected to temperatures above 90° C (194° F) during manufacture, the dimensional stability is high. This is of great importance when screen-printing solder paste on fine-line SMT boards because a better fit between the stencil and the pattern is achieved than in the case of solder coated and hot-air leveled boards.

(6) Contamination of Board Surface
Since there is no flux residue on the board surface as there is with solder-coated and hot-air leveled boards, surface contamination is considerably lower. Measurements indicate a 4.5 μg NaCl/sq.cm (29 μg NaCl/sq.in.) contamination of solder coated and hot-air leveled boards and just 1.5 μg NaCl/sq.cm (9.6 μg NaCl/sq.in.) contamination of nickel/gold boards.

(7) Fiducials
Fiducials, the optical targets, achieve a better definition because of the thin nickel/gold layer.

(8) Shelf Life
The shelf life is reported to be a minimum of one year when vacuum-packed.

(9) Keyboard Contacts
It is expedient to execute on-board contacts for keyboards with the same nickel/gold coating as on the SMT pads so that a carbon printing can be avoided. The carbon contacts often show a resistance of 100 to 200 ohms, and also a fairly high degree of instability.

4 Layers 1.4mm 1oz Medical Equipment PCB Immersion Gold PCB 2
