Thick Printed Circuit Board 3.0mm Double Sided PCB Built On FR-4 With Immersion Gold
  • name
  • name
  • name
  • name

Thick Printed Circuit Board 3.0mm Double Sided PCB Built On FR-4 With Immersion Gold

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-463.V1.0
Base Material:
FR-4
Layer Count:
2 Layers
PCB Thickness:
3.0 Mm ±0.3
PCB Size:
225 X 290mm=48PCS
Solder Mask:
Green
Silkscreen:
White
Copper Weight:
0.5oz
Surface Finish:
Immersion Gold
Highlight:

Bare Copper HASL PCB

,

0.40mm HASL PCB

Product Description



Thick Printed Circuit Board 3.0mm Double Sided PCB Built On FR-4 With Immersion Gold

(Printed circuits boards are custom-made products, the picture and parameters shown are just for reference)



1.1 General description

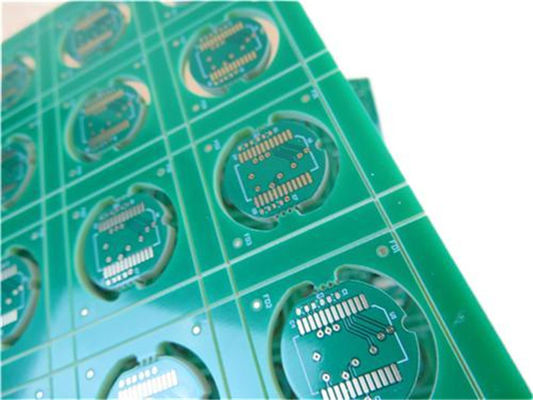

This is a type of 3.0mm thick PCB built on double sided FR-4 substrate with Tg 150°C for the application of data acquisition. It's small round circuit board panelized 48 up. V-cut (v groove) and router are used on the panel, fiducial marks are around each board. Other specifications are green solder mask, white silkscreen and immersion gold. The base material substrate is from ITEQ IT-158. They're fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panels are packed for shipment.



1.2 Features and benefits

1. Substrate is RoHS compliant and suitable for thermal reliability needs;

2. Immersion gld has high solderability, no stressing of circuit boards and less contamination of PCB surface;

3. Eligible products rate of first production: >99%

4. ISO9001, ISO14001, ISO13485, UL certified manufacturing factory;

5. Delivery on time: >98%

6. Customer complaint rate: <1%

7. No minimum order quantity. 1 piece is available;

8. More than 18+ years of PCB experience;



Thick Printed Circuit Board 3.0mm Double Sided PCB Built On FR-4 With Immersion Gold 0



1.3 Applications

GPS Trackers

Access Point WiFi

Router Antenna

Fingerprint Access Control

High Speed Storage Networks



1.4 PCB Specifications

PCB SIZE 225 x 290mm=48PCS
BOARD TYPE Double Sided PCB
Number of Layers 2 Layer
Surface Mount Components YES
Through Hole Components no
LAYER STACKUP copper ------- 18um(0.5oz)+plate TOP layer
FR-4 2.9mm
copper ------- 18um(0.5oz)+plate BOT layer
TECHNOLOGY
Minimum Trace and Space: 10 mil / 9 mil
Minimum / Maximum Holes: 0.4 mm / 0.8 mm
Number of Different Holes: 2
Number of Drill Holes: 27
Number of Milled Slots: 56
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: FR-4 Tg135℃, er<5.4.IT-158, ITEQ Supplied
Final foil external: 1 oz
Final foil internal: 1 oz
Final height of PCB: 3.0 mm ±0.3
PLATING AND COATING
Surface Finish Immersion gold (32.1% ) 0.05µm over 3µm nickel
Solder Mask Apply To: TOP and Bottom, 12micron Minimum
Solder Mask Color: Green, PSR-2000GT600D, Taiyo Supplied.
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing, stamp holes.
MARKING
Side of Component Legend TOP and Bottom.
Colour of Component Legend White, IJR-4000 MW300, Taiyo brand
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Plated through hole(PTH), minimum size 0.4mm.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



Thick Printed Circuit Board 3.0mm Double Sided PCB Built On FR-4 With Immersion Gold 1
