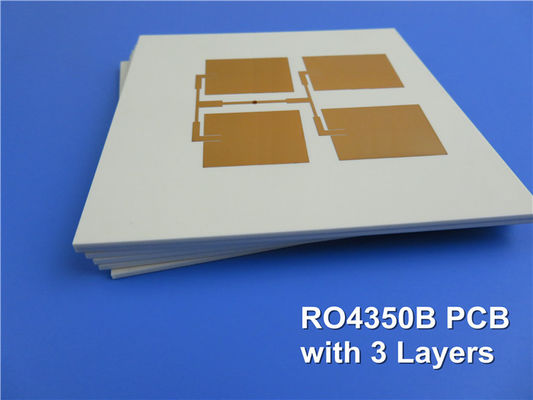

3 Layer High Frequency PCB Built On 60mil RO4350B and 6.6mil RO4350B with ENIG for Wireless Booster

(PCB’s are custom-made products, the picture and parameters shown are just for reference)



Multilayer high frequency PCBs are made from all high frequency material inclusive of prepreg adhesive. For example, a 4-layer RO4350B PCB is a compound of 2 cores of RO4350B substrates. As is known to all, there’re 8 cores in RO4350B family, i.e. 4mil (0.101mm) to 60mil (1.524mm).



Rogers 4350 3 Layer 1.88mm Multi Layer PCB With ENIG For Wireless Booster 0



So it’s very interesting that stack-up of 4 layers can be done in many different ways.



This 3-Layer high frequency PCB is built on 2 cores of RO4350B and one layer of copper is etched off, left 3 layers on.



Rogers 4350 3 Layer 1.88mm Multi Layer PCB With ENIG For Wireless Booster 1



The structure is one sheet of 60mil RO4350B plus 4mil RO4450F prepreg and combined 6.6mil RO4350B. The board is a square with 110mm x 110mm, with immersion gold finishes on pads. They’re 20 pieces packed for shipment and used for wireless booster.



Following is the actual value in engineering manufacture.



Rogers 4350 3 Layer 1.88mm Multi Layer PCB With ENIG For Wireless Booster 2



Features and benefits

1) Excellent high frequency performance due to low dielectric tolerance and loss;

2) Reducing signal loss in high frequency application meets the development needs of communication technology;

3) Professional and experienced engineers check your production files

4) Hassle-free, one-to-one after-sales service;

5) UL, ISO14001, IAFT16949 certified factory.



Applications

Amplifier, Antenna combiner, Frequency converter, Trunk amplifier, RF module, Power splitter, Low Noise Block, 4G antenna



Rogers 4350 3 Layer 1.88mm Multi Layer PCB With ENIG For Wireless Booster 3



Parameter and data sheet

PCB SIZE 110 x 110mm=1PCS
BOARD TYPE Multilayer PCB
Number of Layers 3 layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 35µm(1 oz)+plate TOP layer
RO4350B 60mil (1.524mm)
copper ------- 35µm
Prepreg RO4450F 4mil (0.102mm)
copper ------- 0µm
RO4350B 6.6mil (0.167mm)
copper ------- 35µm(1oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space: 4 mil / 4 mil
Minimum / Maximum Holes: 0.4 mm / 3.5 mm
Number of Different Holes: 12
Number of Drill Holes: 124
Number of Milled Slots: 0
Number of Internal Cutouts: NO
Impedance Control: no
Number of Gold finger: 0
BOARD MATERIAL
Glass Epoxy: RO4350B Tg280℃, er<3.48, Rogers Corp
Final foil external: 1 oz
Final foil internal: 1 oz
Final height of PCB: 1.88 mm ±10%
PLATING AND COATING
Surface Finish Immersion gold
Solder Mask Apply To: N/A
Solder Mask Color: N/A
Solder Mask Type: N/A
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend N/A
Colour of Component Legend N/A
Manufacturer Name or Logo: N/A
VIA Plated through hole(PTH), minimum size 0.4mm.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.
