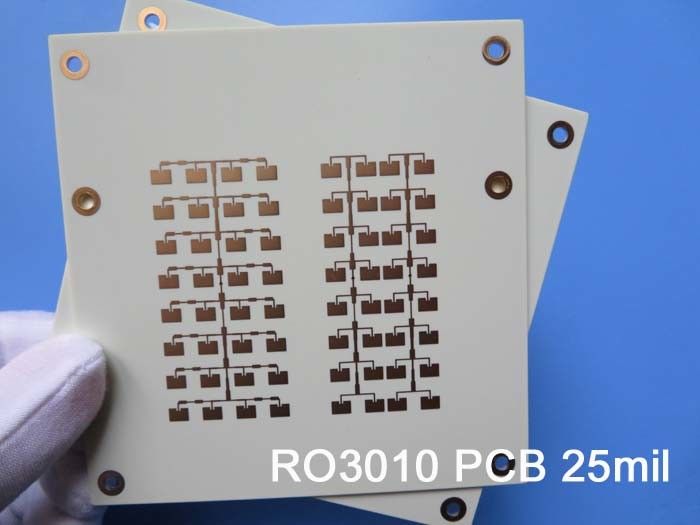

RO3010 25mil 0.635mm Microwave PCB Board LPSM Solder Mask

RO3010 25mil 0.635mm Microwave PCB Board LPSM Solder Mask
RO3010 25mil 0.635mm Microwave PCB Board LPSM Solder Mask

Large Image :  RO3010 25mil 0.635mm Microwave PCB Board LPSM Solder Mask

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-049.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: RO3010 Layer Count: 2 Layers
PCB Thickness: 0.8mm PCB Size: 100 X 100mm=1PCS
Solder Mask: Green Silkscreen: White
Copper Weight: 0.5oz Surface Finish: Immersion Gold
High Light:

25mil Microwave PCB Board


0.635mm Microwave PCB Board


25mil RF Microwave PCB


Rogers Microwave PCB Made on RO3010 25mil 0.635mm DK10.2 With Gold for Patch Antenna for Wireless Communications

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)


Rogers RO3010 high frequency circuit materials are ceramic-filled PTFE composites intended for use in commercial microwave and RF applications. It was designed to offer exceptional electrical and mechanical stability at competitive prices. The mechanical properties are consistent. This allows the designer to develop multi-layer board designs without encountering warpages or reliability problems. RO3010 materials exhibit a coefficient of thermal expansion(CTE) in the X and Y axis of 17 ppm/℃. This expansion coefficient is matched to that of copper, which allows the material to exhibit excellent dimensional stability, with typical etch shrinkage, after etch and bake, of less than 0.5 mils per inch. The Z-axis CTE is 24 ppm/℃, which provides exceptional plated through-hole reliability, even in severe environments.


Typical applications:

1) Automotive radar

2) Cellular telecommunications systems

3) Datalink on cable systems

4) Direct broadcast satellites

5) Global positioning satellite antennas

6) Patch antenna for wireless communications

7) Power amplifiers and antennas

8) Power backplanes

9) Remote meter readers


PCB Specifications

PCB SIZE 100 x 100mm=1PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 18um(0.5 oz)+plate TOP layer
RO3010 0.635mm
copper ------- 18um(0.5 oz) + plate BOT Layer
Minimum Trace and Space: 6 mil / 6 mil
Minimum / Maximum Holes: 0.3mm / 1.5mm
Number of Different Holes: n/a
Number of Drill Holes: n/a
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
Glass Epoxy: RO3010 0.635mm
Final foil external: 1oz
Final foil internal: N/A
Final height of PCB: 0.8 mm ±0.1mm
Surface Finish Immersion Gold
Solder Mask Apply To: Bottom, 12micron Minimum
Solder Mask Color: Green, PSR-2000GT600D, Taiyo Supplied.
Solder Mask Type: LPSM
Side of Component Legend Bottom
Colour of Component Legend White, IJR-4000 MW300, Taiyo brand
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.


RO3010 25mil 0.635mm Microwave PCB Board LPSM Solder Mask 0


Data Sheet of Rogers 3010 (RO3010)

RO3010 Typical Value
Property RO3010 Direction Units Condition Test Method
Dielectric Constant,εProcess 10.2±0.05 Z   10 GHz/23 IPC-TM-650 Clamped Stripline
Dielectric Constant,εDesign 11.2 Z   8GHz to 40 GHz Differential Phase Length Method
Dissipation Factor,tanδ 0.0022 Z   10 GHz/23 IPC-TM-650
Thermal Coefficient of ε -395 Z ppm/ 10 GHz -50to 150 IPC-TM-650
Dimensional Stability 0.35
mm/m COND A IPC-TM-650 2.2.4
Volume Resistivity 105   MΩ.cm COND A IPC
Surface Resistivity 105   COND A IPC
Tensile Modulus 1902
MPa 23 ASTM D 638
Moisture Absorption 0.05   % D48/50 IPC-TM-650
Specific Heat 0.8   j/g/k   Calculated
Thermal Conductivity 0.95   W/M/K 50 ASTM D 5470
Coefficient of Thermal Expansion
(-55 to 288
ppm/ 23/50% RH IPC-TM-650
Td 500   TGA   ASTM D 3850
Density 2.8   gm/cm3 23 ASTM D 792
Copper Peel Stength 9.4   Ib/in. 1oz,EDC After Solder Float IPC-TM 2.4.8
Flammability V-0       UL 94
Lead-free Process Compatible Yes
