Rogers RO3003 High Frequency PCB 2-Layer Rogers 3003 10mil Circuit Board DK3.0 DF 0.001 Microwave PCB

Rogers RO3003 High Frequency PCB 2-Layer Rogers 3003 10mil Circuit Board DK3.0 DF 0.001 Microwave PCB
Rogers RO3003 High Frequency PCB 2-Layer Rogers 3003 10mil Circuit Board DK3.0 DF 0.001 Microwave PCB Rogers RO3003 High Frequency PCB 2-Layer Rogers 3003 10mil Circuit Board DK3.0 DF 0.001 Microwave PCB Rogers RO3003 High Frequency PCB 2-Layer Rogers 3003 10mil Circuit Board DK3.0 DF 0.001 Microwave PCB

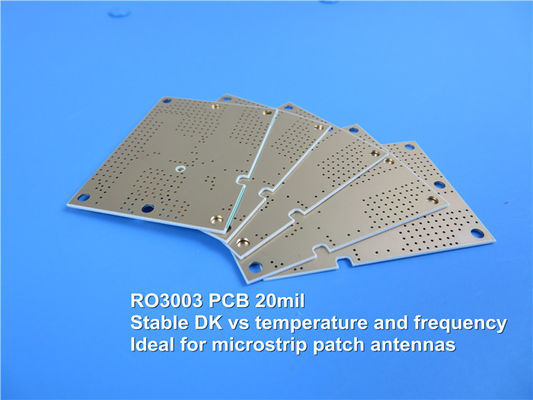

Large Image :  Rogers RO3003 High Frequency PCB 2-Layer Rogers 3003 10mil Circuit Board DK3.0 DF 0.001 Microwave PCB

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-037.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: RO3003 Layer Count: 2 Layers
PCB Size: 100 X 100mm=1PCS PCB Thickness: 0.3mm
Copper Weight: 1oz
High Light:

1 Oz Copper Radar PCB

,

0.3mm Radar PCB

,

1 Oz Copper PCB



Rogers RO3003 High Frequency PCB 2-Layer Rogers 3003 10mil Circuit Board DK3.0 DF 0.001 Microwave PCB

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



Rogers RO3003 high frequency circuit materials are ceramic-filled PTFE composites intended for use in commercial microwave and RF applications. It was designed to offer exceptional electrical and mechanical stability at competitive prices. The mechanical properties are consistent. This allows the designer to develop multi-layer board designs without encountering warpages or reliability problems. RO3003 materials exhibit a coefficient of thermal expansion(CTE) in the X and Y axis of 17 ppm/℃. This expansion coefficient is matched to that of copper, which allows the material to exhibit excellent dimensional stability, with typical etch shrinkage, after etch and bake, of less than 0.5 mils per inch. The Z-axis CTE is 24 ppm/℃, which provides exceptional plated through-hole reliability, even in severe environments.



Typical applications:

1) Datalink on cable systems

2) Patch antenna for wireless communications

3) Power backplanes

4) Remote meter readers



PCB Specifications

PCB SIZE 100 x 100mm=1PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components NO
Through Hole Components NO
LAYER STACKUP copper ------- 35 um(1 oz)
RO3003 0.254mm
copper ------- 35 um(1 oz)
TECHNOLOGY
Minimum Trace and Space: 5mil / 5mil
Minimum / Maximum Holes: 0.3mm / 0.8mm
Number of Different Holes: N/A
Number of Drill Holes: N/A
Number of Milled Slots: N/A
Number of Internal Cutouts: N/A
Impedance Control: N/A
Number of Gold finger: N/A
BOARD MATERIAL
Glass Epoxy: RO3003 0.254mm
Final foil external: 1oz
Final foil internal: N/A
Final height of PCB: 0.3 mm ±0.1
PLATING AND COATING
Surface Finish N/A
Solder Mask Apply To: N/A
Solder Mask Color: N/A
Solder Mask Type: N/A
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend N/A
Colour of Component Legend N/A
Manufacturer Name or Logo: N/A
VIA N/A
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST N/A
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



Data Sheet of Rogers 3003 (RO3003)

RO3003 Typical Value
Property RO3003 Direction Units Condition Test Method
Dielectric Constant,εProcess 3.0±0.04 Z   10 GHz/23 IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant,εDesign 3 Z   8GHz to 40 GHz Differential Phase Length Method
Dissipation Factor,tanδ 0.001 Z   10 GHz/23 IPC-TM-650 2.5.5.5
Thermal Coefficient of ε -3 Z ppm/ 10 GHz -50to 150 IPC-TM-650 2.5.5.5
Dimensional Stability 0.06
0.07
X
Y
mm/m COND A IPC-TM-650 2.2.4
Volume Resistivity 107   MΩ.cm COND A IPC 2.5.17.1
Surface Resistivity 107   COND A IPC 2.5.17.1
Tensile Modulus 930
823
X
Y
MPa 23 ASTM D 638
Moisture Absorption 0.04   % D48/50 IPC-TM-650 2.6.2.1
Specific Heat 0.9   j/g/k   Calculated
Thermal Conductivity 0.5   W/M/K 50 ASTM D 5470
Coefficient of Thermal Expansion
(-55 to 288
)
17
16
25
X
Y
Z
ppm/ 23/50% RH IPC-TM-650 2.4.4.1
Td 500   TGA   ASTM D 3850
Density 2.1   gm/cm3 23 ASTM D 792
Copper Peel Stength 12.7   Ib/in. 1oz,EDC After Solder Float IPC-TM 2.4.8
Flammability V-0       UL 94
Lead-free Process Compatible Yes
