1.6mm TLF-35 RF PCB Board Ultra Low Moisture Absorption Rate

1.6mm TLF-35 RF PCB Board Ultra Low Moisture Absorption Rate
1.6mm TLF-35 RF PCB Board Ultra Low Moisture Absorption Rate 1.6mm TLF-35 RF PCB Board Ultra Low Moisture Absorption Rate

Large Image :  1.6mm TLF-35 RF PCB Board Ultra Low Moisture Absorption Rate

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-034.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: TLF-35 Layer Count: 2 Layers
PCB Thickness: 1.6mm PCB Size: 165 X 50mm=1PCS
Silkscreen: White Copper Weight: 1oz
Surface Finish: Immersion Gold
High Light:

TLF-35A RF PCB Board


1.6mm RF PCB Board

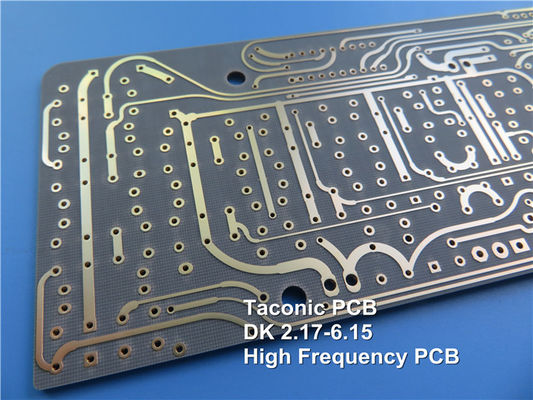

Taconic RF PCB Made on TLF-35 60mil 1.524mm With Immersion Gold for Mixer, Filters and Couplers etc.

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)


TLF-35A is another type of low cost RF material. It's the best choice for low cost, high volume commercial microwave and radio frequency applications. TLF-35A has excellent peel strength for 1/2 ounce and 1 ounce copper (even in comparison to standard epoxy materials), a critical aspect whenever rework is required.


The ultra low moisture absorption rate and low dissipation factor of TLF-35A minimizes phase shift with frequency. TLF-35A is dimensionally stable due to the use of woven fabrics in its design. TLF-35A base materials exhibit flammability of V-0, and are tested in accordance with IPC-TM-650.


Data Sheet of Taconic TLF-35

Property Test Method Units Value Units Value
Dielectric Constant at 1.9GHz IPC-TM 650 Mod   3.50±0.05   3.50±0.05
Dissipation Factor at 1.9GHz IPC-TM 650 Mod   0.0016   0.0016
Dissipation Factor at 10GHz IPC-TM 650 Mod   0.0022   0.0022
Water absorption IPC-TM 650 % 0.03 % 0.03
Peel Strength(1oz copper) IPC-TM 650 2.4.8 Lbs./linear inch 10 M/mm 1.8
Volume Resistivity IPC-TM 650 2.0 x 109 2.0 x 109
Surface Resistivity IPC-TM 650 Mohm 3.0 x 108 Mohm 3.0 x 108
Flexural Strength Lengthwise IPC-TM 650 2.4.4 psi 13,000 M/mm2 90
Flexural Strength Crosswise IPC-TM 650 2.4.4 psi 13,000 M/mm2 90
Thermal Conductivity IPC-TM 650 2.4.50 W/m/K 0.37 W/m/K 0.37
x-y CTE(50-150℃) IPC-TM 650 2.4.41 ppm/ 9-12 ppm/ 9-12
z CTE(50-150℃) IPC-TM 650 2.4.41 ppm/ 80 ppm/ 80
Flammability UL-94   V-0   V-0


TFL-35A has low dielectric constant at 3.5 +/-0.05, low dissipation factor at 0.002.


TLF-35 PCBs are a cost-effective option for a wide range of applications, offering excellent peel strength, exceptionally low DF, and low moisture absorption.

With their very high thermal reliability, TLF-35 PCBs are an ideal choice for use in high-power amplifiers, TMAs, TMBs, and LNAs.

These boards are also well-suited for use in repeaters, where their low cost and reliable performance make them an excellent choice for signal amplification and transmission.

TLF-35 PCBs are commonly used in passive components such as filters, couplers, splitters, combiners, and mixers, where their low DF and high reliability ensure optimal signal performance.

Additionally, TLF-35 PCBs are used in medical scanners due to their low moisture absorption and high thermal reliability, making them an ideal choice for use in a clinical setting.

TLF-35 PCBs are also used in antenna applications, where their excellent peel strength and low cost make them a popular choice for reliable signal reception and transmission.


PCB Specifications

PCB SIZE 165 x 50mm=1PCS
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1 oz)+plate TOP layer
TLF-35 1.524mm
copper ------- 35um(1oz) + plate BOT Layer
Minimum Trace and Space: 14 mil / 14 mil
Minimum / Maximum Holes: 0.4mm / 2.5mm
Number of Different Holes: 0
Number of Drill Holes: 0
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
Glass Epoxy: TLF-35 1.524mm
Final foil external: 1.5 oz
Final foil internal: N/A
Final height of PCB: 1.6 mm ±10%
Surface Finish Immersion gold
Solder Mask Apply To: NO
Solder Mask Color: N/A
Solder Mask Type: N/A
Side of Component Legend N/A
Colour of Component Legend white
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.


1.6mm TLF-35 RF PCB Board Ultra Low Moisture Absorption Rate 0
