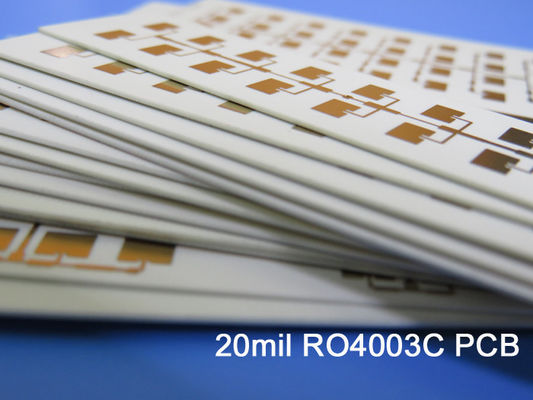

Rogers 4003 20mil High Frequency PCB Double Sided RF PCB Repeater PA

Rogers 4003 20mil High Frequency PCB Double Sided RF PCB Repeater PA
Rogers 4003 20mil High Frequency PCB Double Sided RF PCB Repeater PA

Large Image :  Rogers 4003 20mil High Frequency PCB Double Sided RF PCB Repeater PA

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-007.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: Rogers 4300C PCB Size: 67 X 72mm=1up
Copper Weight: 1oz Layer Count: 2 Layers
PCB Thickness: 0.6mm Surface Finish: Immersion Gold
High Light:

Repeater PA High Frequency PCB


20mil Double Sided PCB Board


RO4003C Rogers PCB Board


High Frequency PCB Double Sided RF PCB Repeater PA

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)


RO4003C hydrocarbon ceramic laminates are designed to offer superior high frequency performance and low cost circuit fabrication. The selection of laminates typically available to designers is significantly reduced once operational frequencies increase to 500 MHz and above.


Designers of RF microwave circuits, matching networks, and controlled impedance transmission lines can rely on the features of RO4003C material. Higher operating frequencies prevent the use of standard circuit board materials in many applications, while low dielectric loss enables RO4003C material to be employed in those applications.


The dielectric constant is consistent across a wide frequency range and has one of the lowest temperature coefficients of any circuit board material. The thermal coefficient of expansion (CTE) of the RO4003C material offers the PCB designers a number of significant advantages. Due to its identical expansion coefficient to that of copper, RO4003C exhibits high dimensional stability, a quality required for the creation of mixed dielectric multi-layer boards.


The low Z-axis CTE of RO4003C provides reliable plated through-hole quality, even in severe thermal shock applications. RO4003C material has a Tg of >280C so its expansion characteristics remain stable over the entire range of PCB processing temperatures.


PCB Specifications

PCB SIZE 67 x 72mm=1up
BOARD TYPE Double sided PCB
Number of Layers 2 layers
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1 oz)+plate TOP layer
RO4003C 0.508mm
copper ------- 35um(1oz) + plate BOT Layer
Minimum Trace and Space: 7.9 mil / 5.9 mil
Minimum / Maximum Holes: 0.4 mm / 0.4 mm
Number of Different Holes: 1
Number of Drill Holes: 3
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control: no
Number of Gold finger: 0
Glass Epoxy: RO4003C Tg280, er<3.48, Rogers Corp.
Final foil external: 1.5 oz
Final foil internal: N/A
Final height of PCB: 0.6 mm ±0.1
Surface Finish Immersion gold, 37%
Solder Mask Apply To: N/A
Solder Mask Color: N/A
Solder Mask Type: N/A
Side of Component Legend N/A
Colour of Component Legend N/A
Manufacturer Name or Logo: N/A
VIA Plated through hole(PTH), minimum size 0.4mm.
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.


Typical applications are as follows:

  • Automotive Radar and Sensors
  • Cellular Base Station Antennas
  • Direct Broadcast Satellites
  • Low Noise Block


Rogers 4003 20mil High Frequency PCB Double Sided RF PCB Repeater PA 0


Data Sheet of Rogers 4003C (RO4003C)

RO4003C Typical Value
Property RO4003C Direction Units Condition Test Method
Dielectric Constant,εProcess 3.38±0.05 Z   10 GHz/23 IPC-TM-650 Clamped Stripline
Dielectric Constant,εDesign 3.55 Z   8 to 40 GHz Differential Phase Length Method
Dissipation Factortan,δ 0.0027
Z   10 GHz/23
2.5 GHz/23
Thermal Coefficient of ε +40 Z ppm/ -50to 150 IPC-TM-650
Volume Resistivity 1.7 x 1010   MΩ.cm COND A IPC-TM-650
Surface Resistivity 4.2 x 109   COND A IPC-TM-650
Electrical Strength 31.2(780) Z Kv/mm(v/mil) 0.51mm(0.020") IPC-TM-650
Tensile Modulus 19,650(2,850)
MPa(ksi) RT ASTM D 638
Tensile Strength 139(20.2)
MPa(ksi) RT ASTM D 638
Flexural Strength 276
  IPC-TM-650 2.4.4
Dimensional Stability <0.3 X,Y mm/m
after etch+E2/150 IPC-TM-650 2.4.39A
Coefficient of Thermal Expansion 11
ppm/ -55to288 IPC-TM-650 2.4.41
Tg >280   TMA A IPC-TM-650
Td 425   TGA   ASTM D 3850
Thermal Conductivity 0.71   W/M/oK 80 ASTM C518
Moisture Absorption 0.06   % 48hrs immersion 0.060"
sample Temperature 50
ASTM D 570
Density 1.79   gm/cm3 23 ASTM D 792
Copper Peel Stength 1.05
after solder float 1 oz.
EDC Foil
IPC-TM-650 2.4.8
Flammability N/A       UL 94
Lead-free Process Compatible Yes


Rogers 4003 20mil High Frequency PCB Double Sided RF PCB Repeater PA 1
