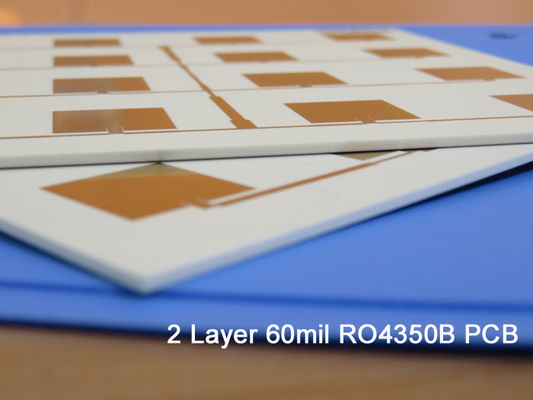

Rogers 4350 High frequency PCB 1.524mm Double Sided RF Circuit Board
  • name
  • name

Rogers 4350 High frequency PCB 1.524mm Double Sided RF Circuit Board

MOQ: 1 pcs
Price: USD 9.99-99.99 per piece
Standard Packaging: Vacuum bags+ Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 50000 pcs per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-001-V1.0
Base Material::
RO4350B
Thickness:
1.6mm
Copper Weight::
1oz
Surface Finish::
Immersion Gold
Layer Count::
2 Layers
PCB Size::
135 X 135mm
Highlight:

1.524mm Rogers PCB Board

,

High frequency Rogers PCB Board

,

Double Sided Rogers PCB Board

Product Description



High Frequency PCB Rogers 60mil 1.524mm RO4350B Double Sided RF Circuit Board Patch Antenna PCB

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



Rogers RO4350B hydrocarbon ceramic laminates are designed to offer superior high frequency performance and low cost circuit fabrication. The selection of laminates typically available to designers is significantly reduced once operational frequencies increase to 500 MHz and above.



The qualities required by designers of RF microwave circuits, matching networks, and controlled impedance transmission lines are present in the material RO4350B. Since standard circuit board materials cannot be used in many applications due to higher operating frequencies, low dielectric loss makes it possible to employ RO4350B material in these applications.



The dielectric constant is consistent across a wide frequency range and has one of the lowest temperature coefficients of any circuit board material.



The thermal coefficient of expansion (CTE) of RO4350B material offers PCB designers a number of significant advantages. Due to its identical expansion coefficient to that of copper, RO4350B exhibits high dimensional stability, a quality required for the fabrication of mixed dielectric multi-layer boards.



The low Z-axis CTE of RO4350B provides reliable plated through-hole quality, even in severe thermal shock applications. RO4350B material has a Tg of >280C so its expansion characteristics remain stable over the entire range of PCB processing temperatures.



RO4350B PCB Specifications

PCB SIZE 135 x 135mm=1PCS
BOARD TYPE High frequency PCB, RF PCB
Number of Layers Double sided PCB
Surface Mount Components YES
Through Hole Components YES
LAYER STACKUP copper ------- 35um(1oz)+PLATE
RO4350B 60mil
copper ------- 35um(1oz)+PLATE
TECHNOLOGY
Minimum Trace and Space: 11mil/12mil
Minimum / Maximum Holes: 0.3/2.2mm
Number of Different Holes: 5
Number of Drill Holes: 184
Number of Milled Slots: 0
Number of Internal Cutouts: 0
Impedance Control NO
BOARD MATERIAL
Glass Epoxy: RO4350B 60mil, Tg 288℃
Final foil external: 1.5oz
Final foil internal: 0oz
Final height of PCB: 1.6mm ±0.16
PLATING AND COATING
Surface Finish Electroless nickel over Immersion Gold (ENIG)( 2 micoinch over 100 microinch nickel)
Solder Mask Apply To: NO
Solder Mask Color: NO
Solder Mask Type: N/A
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend NO
Colour of Component Legend NO
Manufacturer Name or Logo: N/A
VIA Plated Through Hole(PTH)
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



The typical applications included automotive radar and sensors, cellular base station antennas, direct broadcast satellites, low noise block, power amplifiers, RFID.



Rogers 4350 High frequency PCB 1.524mm Double Sided RF Circuit Board 0



Data sheet of Rogers 4350B (RO4350B )

RO4350B Typical Value
Property RO4350B Direction Units Condition Test Method
Dielectric Constant,εProcess 3.48±0.05 Z   10 GHz/23℃ IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant,εDesign 3.66 Z   8 to 40 GHz Differential Phase Length Method
Dissipation Factortan,δ 0.0037
0.0031		 Z   10 GHz/23℃
2.5 GHz/23℃		 IPC-TM-650 2.5.5.5
Thermal Coefficient of ε +50 Z ppm/℃ -50℃to 150℃ IPC-TM-650 2.5.5.5
Volume Resistivity 1.2 x 1010   MΩ.cm COND A IPC-TM-650 2.5.17.1
Surface Resistivity 5.7 x109   MΩ COND A IPC-TM-650 2.5.17.1
Electrical Strength 31.2(780) Z Kv/mm(v/mil) 0.51mm(0.020") IPC-TM-650 2.5.6.2
Tensile Modulus 16,767(2,432)
14,153(2,053)		 X
Y		 MPa(ksi) RT ASTM D 638
Tensile Strength 203(29.5)
130(18.9)		 X
Y		 MPa(ksi) RT ASTM D 638
Flexural Strength 255
(37)		   MPa
(kpsi)		   IPC-TM-650 2.4.4
Dimensional Stability <0.5 X,Y mm/m
(mil/inch)		 after etch+E2/150℃ IPC-TM-650 2.4.39A
Coefficient of Thermal Expansion 10
12
32		 X
Y
Z		 ppm/℃ -55℃to288℃ IPC-TM-650 2.4.41
Tg >280   ℃ TMA A IPC-TM-650 2.4.24.3
Td 390   ℃ TGA   ASTM D 3850
Thermal Conductivity 0.69   W/M/oK 80℃ ASTM C518
Moisture Absorption 0.06   % 48hrs immersion 0.060"
sample Temperature 50℃		 ASTM D 570
Density 1.86   gm/cm3 23℃ ASTM D 792
Copper Peel Stength 0.88
(5.0)		   N/mm
(pli)		 after solder float 1 oz.
EDC Foil		 IPC-TM-650 2.4.8
Flammability (3)V-0       UL 94
Lead-free Process Compatible Yes
