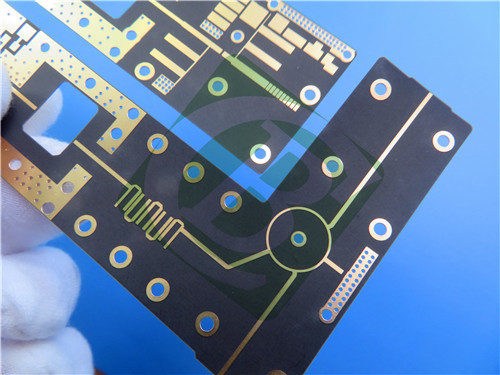

RT/duroid 5880 PCB 15mil 2-layer Green Solder Mask

Introducing our high-performance double-layer rigid PCB, meticulously constructed with Rogers RT/duroid 5880 material. Tailored for demanding high-frequency scenarios where consistent electrical characteristics and minimal loss are essential, it emerges as a top pick for radar systems, millimeter wave applications, and beyond.

PCB Construction & Specifications

The stack-up of this PCB is thoughtfully engineered as follows:

Copper_layer_1: 35 μm

RT/duroid 5880: 0.381 mm (15mil)

Copper_layer_2: 35 μm

PCB details

What Makes RT/duroid 5880 Material Stand Out?

Rogers RT/duroid 5880 high frequency laminates are PTFE composites reinforced with glass microfibers, crafted for precise stripline and microstrip circuit applications. The randomly oriented microfibers contribute to exceptional dielectric constant uniformity, which remains consistent across panels and stable over a broad frequency range. Its low dissipation factor (0.0009 at 10GHz) allows it to be utilized effectively up to Ku-band and beyond, while its dielectric constant of 2.2 +/- 0.02 at 10 GHz/23°C further enhances its electrical performance.

In terms of processing and durability, RT/duroid 5880 laminates are simple to cut, shear, and machine into shape. They hold up against all solvents and reagents, whether hot or cold, commonly used in etching printed circuits or plating edges and holes. Additional key features include a temperature coefficient of dielectric constant (TCDk) of -125 ppm/°C, low moisture absorption of 0.02%, CTE in X-axis of 31 ppm/°C, Y-axis of 48 ppm/°C and Z-axis of 237 ppm/°C, Td 500 °C TGA, UL 94-V0 rating, lead-free process compatibility, and isotropic properties.

Benefits

-Uniform electrical properties over wide frequency range

-Easily cut, sheared and machined to shape

-Resistant to solvents and reagents used in etching or plating edges and holes

-Ideal for high moisture environments

-Well-established material

-Lowest electrical loss for reinforced PTFE material

Where Can It Be Used?

The unique properties of RT/duroid 5880 make this PCB suitable for a range of applications:

-Commercial Airline Broadband Antennas

-Microstrip and Stripline Circuits

-Millimeter Wave Applications

-Radar Systems

-Guidance Systems

-Point to Point Digital Radio Antennas

Compliance & Availability

This PCB adheres to strict IPC-Class-2 standards, guaranteeing consistent quality and reliability. The artwork provided is in Gerber RS-274-X format for smooth production integration.

We provide worldwide availability, ensuring this high-quality PCB is accessible to engineers and manufacturers across all regions.

Opt for this PCB for a solution that excels in both quality and value.
