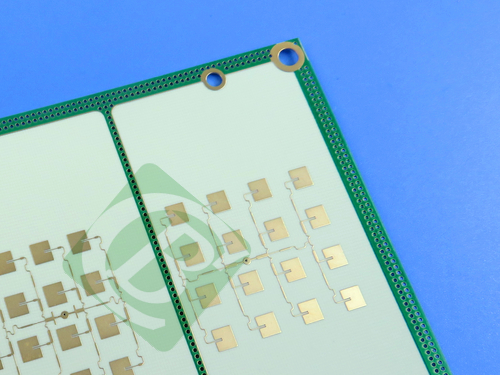

Rogers RO4350B PCB 16.6mil Double-Sided ENEPIG Finish

Meet our high-performance double-layer rigid PCB, expertly crafted using Rogers RO4350B material. It is designed for a variety of high-frequency and RF applications where reliable performance and cost-effectiveness are crucial, making it an excellent choice for cellular base stations, automotive radar, and more.

The stack-up of this PCB is carefully designed as follows:

Copper_layer_1: 35 μm

Rogers RO4350B Core: 0.422 mm (16.6mil)

Copper_layer_2: 35 μm

PCB Details

What Makes RO4350B Material Stand Out?

Material Composition & Performance Balance

Rogers RO4350B materials are proprietary woven glass reinforced hydrocarbon/ceramics. They strike a unique balance: electrical performance close to PTFE/woven glass, while maintaining the manufacturability of epoxy/glass.

Processing & Cost Advantages

RO4350B laminates provide tight control on dielectric constant (Dk) and maintain low loss, all while using the same processing methods as standard epoxy/glass. They are available at a fraction of the cost of conventional microwave laminates and eliminate the need for special through-hole treatments or handling procedures required by PTFE-based materials. Plus, they’re UL 94 V-0 rated, making them suitable for active devices and high-power RF designs.

Thermal Stability Benefits

RO4350B’s thermal coefficient of expansion (CTE) offers key advantages:

Its expansion coefficient is similar to copper, ensuring excellent dimensional stability—critical for mixed dielectric multi-layer board constructions.

The low Z-axis CTE guarantees reliable plated through-hole quality, even in severe thermal shock applications.

With a Tg of >280°C (536°F), its expansion characteristics stay stable across the entire range of circuit processing temperatures.

Key Features

-Dielectric Constant of DK 3.48 +/-0.05 at 10GHz/23°C

-Dissipation Factor of 0.0037 at 10GHz/23°C

-Thermal Conductivity 0.69 W/m/°K

-X axis CTE of 10 ppm/°C, Y CTE of 12 ppm/°C, Z CTE of 32 ppm/°C

-High Tg value of >280 °C

-Low water absorption of 0.06%

-UL 94 V-0 rated

Benefits

-Ideal for multi-layer board (MLB) constructions

-Processes like FR-4 at lower fabrication cost

-Excellent dimensional stability

-Competitively priced

Where Can It Be Used?

The unique properties of RO4350B make this PCB suitable for a range of applications:

-Cellular Base Station Antennas and Power Amplifiers

-RF Identification Tags

-Automotive Radar and Sensors

-LNB's for Direct Broadcast Satellites

-Compliance & Availability

This PCB meets strict IPC-Class-2 standards, ensuring consistent quality and reliability. The type of artwork supplied is Gerber RS-274-X for seamless production integration.

We offer worldwide availability, making this high-quality PCB accessible to engineers and manufacturers across all regions.

Choose this PCB for a solution that delivers on both quality and value.
