CLTE-XT PCB Material High Frequency Laminates Copper Clad Sheet
  • name

CLTE-XT PCB Material High Frequency Laminates Copper Clad Sheet

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-332.V1.0
Part Number:
CLTE-XT
Laminate Thickness:
0.0051” (0.130 Mm) ± 0.0005” 0.0094” (0.239 Mm) ± 0.0007” 0.020” (0.508 Mm) ± 0.0010” 0.030” (0.762 Mm) ± 0.0010”
Laminate Size:
18”X 12”(457 X 305mm) 18”X 24”(457 X 610mm)
Copper Weight:
Electrodeposited Copper Foil 1/2 Oz. (18µm) 1 Oz. (35µm) Reverse Treated Electrodeposited Copper Foil 1/2 Oz. (18µm) 1 Oz. (35µm)
Highlight:

high frequency PCB laminates

,

copper clad sheet PCB material

,

CLTE-XT copper laminates

Product Description

CLTE-XT laminates offer proven excellent dimensional stability and a low planar coefficient of thermal expansion (CTE), delivering consistent performance for embedded resistors. They exhibit among the lowest variance available for PTFE-based laminates.



CLTE-XT laminates have a long history of successful use with resistor foil and are available with a comprehensive range of other cladding types, including electrodeposited copper, reverse-treated copper, rolled copper foil, and more.

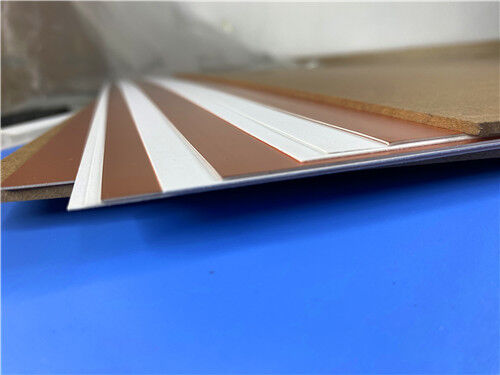

CLTE-XT PCB Material High Frequency Laminates Copper Clad Sheet 0



Features and Benefits

  • Loss tangent of 0.0012 at 10 GHz — reduces circuit losses without sacrificing dimensional stability
  • Low Z-axis CTE of 20 ppm/°C — ensures high plated through-hole reliability
  • Dielectric constant stability with temperature change — reduces stress during attachment to ceramic active devices
  • Available with heavy metal backing (aluminum, brass, and copper) — enables reliable designs with embedded resistor networks



Typical Applications

  • Advanced Driver Assistance Systems (ADAS)
  • Patch antennas
  • Phased array antennas
  • Power amplifiers



CLTE-XT PCB Material High Frequency Laminates Copper Clad Sheet 1
