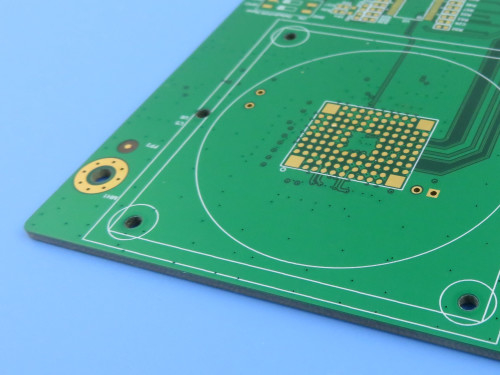

Our newly shipped 10-layer N+4+N HDI PCB is engineered for high-reliability, high-speed, and high-power applications, making it ideal for automotive, networking, telecommunications, and server systems. Built with ITEQ IT-180A FR-4 material, this PCB offers exceptional thermal stability, CAF resistance, and signal integrity, ensuring robust performance in demanding environments.
Key Specifications:
Layers: 10 (N+4+N HDI structure)
Material: ITEQ IT-180A FR-4 (High Tg 175°C, CAF-resistant)
Board Thickness: 1.6mm ±10%
Board Size: 269mm x 213mm (1-piece panel)
Surface Finish: Electroless Nickel Immersion Gold (ENIG)
Solder Mask: Green (both sides)
Silkscreen: White (both sides)
Advanced Stack-Up & Construction:
Blind Vias: L1-L2, L7-L10
Buried Vias: L2-L8
Via Filling: Type VII (filled & capped)
Min. Hole Size: 0.2mm
Min. Trace Width/Spacing: 110µm
Min. Dielectric Thickness: 100µm
Copper Weight: 1/2 oz (18µm) base + plating (up to 45µm on outer layers)
High-Performance IT-180A Material Benefits
With high thermal reliability, it withstands extended exposure to elevated temperatures, achieving T288 >20 minutes and T266 >60 minutes, ensuring stability during lead-free reflow and harsh operating conditions.
The material's low coefficient of thermal expansion (CTE)—11-15 ppm/°C in the X/Y axes—minimizes warpage and enhances dimensional stability, critical for multilayer PCBs in high-temperature environments.
For high-speed designs, IT-180A provides excellent signal integrity, featuring a dielectric constant (Dk) of 4.4 and dissipation factor (Df) of 0.015 at 10GHz, reducing signal loss and maintaining consistent performance in RF and high-frequency applications.
Additionally, the material offers superior anti-CAF (conductive anodic filament) resistance, preventing electrical failures and ensuring high through-hole reliability in humid or high-voltage conditions.
Compliant with modern environmental standards, IT-180A is lead-free and UL 94 V0 flame-retardant, meeting stringent safety requirements for automotive, industrial, and telecommunications applications.
Quality & Compliance:
The Gerber RS-274-X artwork ensures precise manufacturing, while IPC Class 2 standards guarantee consistent quality.
Global Availability
Available worldwide, this 10-layer HDI PCB is ideal for:
Automotive ECUs (engine control units)
Data center servers & networking hardware
Telecom base stations & RF modules
Industrial power electronics
This high-reliability 10-layer HDI PCB ensures superior thermal management, signal integrity, and durability, making it the perfect choice for mission-critical electronics.
