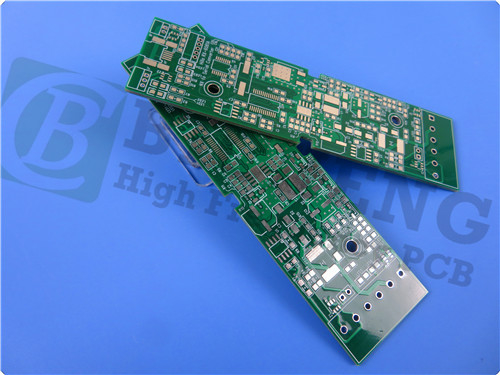

1.6mm TU768 PCB Double Sided 1OZ Hot Air Soldering Level HASL

1.6mm TU768 PCB Double Sided 1OZ Hot Air Soldering Level HASL

MOQ: 1PCS
Price: USD9.99-99.99/PCS
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Material:
TU-768 Core - 1.5 Mm (60mil)
Layer Count:
2-layer
PCB Size:
110mm X 197 Mm=1PCS, +/- 0.15mm
PCB Thickness:
1.6 Mm
Copper Weight:
1oz (1.4 Mils) Outer Layers
Surface Finish:
Hot Air Soldering Level (HASL)
Highlight:

1.6mm PCB Double-Sided

,

HASL PCB Double-Sided

,

1OZ PCB Double-Sided

Product Description

Introduction to TU-768

The TU-768 and its variant, TU-768P, are manufactured using high-quality woven E-glass combined with an advanced epoxy resin system. This unique composition not only grants UV-blocking properties but also ensures compatibility with automated optical inspection (AOI) processes. The TU-768 is specifically designed for applications that endure severe thermal cycles or extensive assembly work, making it a versatile and reliable choice for engineers and manufacturers alike.



Key Characteristics of the TU-768 PCB



Thermal Stability and Resistance

One of the standout features of the TU-768 is its high glass transition temperature (Tg) of 180°C. This characteristic is crucial for applications that require the PCB to withstand high temperatures without compromising performance. The laminate's excellent coefficient of thermal expansion (CTE), with values of 11-15 ppm/°C in both X and Y axes, ensures dimensional stability, minimizing the risk of warping or delamination during thermal cycling.



Compatibility and Reliability

The TU-768 is fully compatible with lead-free processes, aligning with current manufacturing trends and environmental regulations. Its superior chemical resistance and anti-conductive anodic filament (CAF) properties further enhance its reliability, making it suitable for high-density applications where performance and longevity are critical.



Low Loss Characteristics

With a dielectric constant (Dk) of 4.3 at both 5 GHz and 10 GHz, and a loss tangent (Df) as low as 0.018 at 1 GHz, the TU-768 PCB demonstrates excellent signal integrity. This low-loss performance is essential for high-frequency applications, where signal degradation can significantly impact overall system performance.



1.6mm TU768 PCB Double Sided 1OZ Hot Air Soldering Level HASL 0



Construction and Specifications

This PCB features a 2-layer rigid stack-up that has been meticulously crafted to deliver optimal performance. Key construction details include:



- Layer Composition:
- Copper Layer 1: 35 μm
- TU-768 Core: 1.5 mm (60 mil)
- Copper Layer 2: 35 μm



- Board Dimensions: 110mm x 197mm with a tolerance of +/- 0.15mm, ensuring precision in manufacturing.
- Finished Thickness: 1.6mm, providing the necessary robustness for various applications.
- Surface Finish: Hot Air Soldering Level (HASL), ensuring excellent solderability and reliability.



Quality Assurance

This PCB adheres to IPC-Class 2 quality standards, ensuring that every unit meets rigorous benchmarks for performance and reliability. Each PCB undergoes a 100% electrical test prior to shipment, guaranteeing functionality and quality.



1.6mm TU768 PCB Double Sided 1OZ Hot Air Soldering Level HASL 1



Typical Applications

The TU-768 PCB is designed for a diverse range of applications, making it a flexible choice for engineers:



- Consumer Electronics: Ideal for devices requiring reliable performance in compact form factors, such as smartphones and tablets.


- Servers and Workstations: Perfect for high-performance computing applications that demand stability and efficiency.


- Automotive: Engineered to withstand the demanding conditions of the automotive environment, including temperature variations and vibrations.



Conclusion

The TU-768 PCB represents a significant advancement in laminate technology, offering exceptional thermal stability, chemical resistance, and low-loss characteristics. Its robust design and compliance with modern manufacturing processes make it a reliable choice for engineers and manufacturers in various sectors. As we continue to innovate and push the boundaries of technology, the TU-768 stands out as a testament to quality and performance in PCB design.



For more information or to discuss how the TU-768 PCB can meet your specific needs, please contact our sales team at sales10@bichengpcb.com. Thank you advance!
