F4BTMS615 Double Layer PCB 5.08mm Hot Air Soldering Level HASL

F4BTMS615 Double Layer PCB 5.08mm Hot Air Soldering Level HASL
F4BTMS615 Double Layer PCB 5.08mm Hot Air Soldering Level HASL

Large Image :  F4BTMS615 Double Layer PCB 5.08mm Hot Air Soldering Level HASL

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99/PCS
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Material: F4BTMS615 Core - 5.08 Mm (200mil) Layer Count: 2-layer
PCB Size: 92.32mm X 31.5 Mm=1PCS, +/- 0.15mm PCB Thickness: 5.2 Mm
Copper Weight: 1oz (1.4 Mils) Outer Layers Surface Finish: Hot Air Soldering Level (HASL)
Highlight:

HASL PCB

,

5.08mm PCB

,

Double Layer PCB

The F4BTMS615 PCB stands at the forefront of printed circuit board technology, offering unmatched electrical performance and reliability for demanding applications. This cutting-edge laminate is designed with a unique material composition that leverages the benefits of ceramics and ultra-fine glass fiber cloth, ensuring optimal performance in extreme environments.



Breakthrough Material Composition
Engineered for high-reliability aerospace applications, the F4BTMS615 PCB minimizes dielectric loss through its innovative formulation of special nano-ceramics mixed with polytetrafluoroethylene resin. This composition enhances dimensional stability while decreasing anisotropy, resulting in a broader operational frequency range.



Key Electrical Performance Metrics
With a dielectric constant (Dk) of 6.15 at 10 GHz and a low dissipation factor of 0.0020, the F4BTMS615 PCB is ideal for microwave and RF applications. Its high thermal conductivity of 0.67 W/mk ensures efficient heat management, making it a reliable choice for high-power systems.



Robust Construction Specifications
This 2-layer rigid PCB features a core thickness of 5.08 mm and is constructed to precise dimensions, measuring 92.32 mm x 31.5 mm. The construction supports a minimum trace/space of 5/5 mils, offering flexibility for intricate circuit layouts.

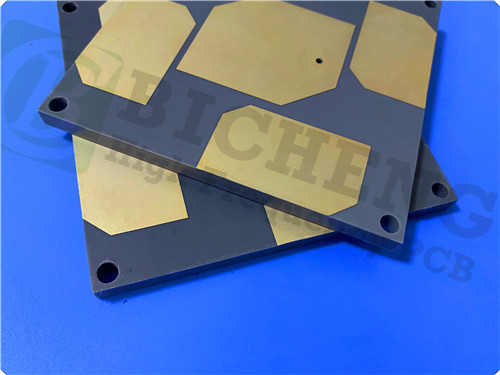

F4BTMS615 Double Layer PCB 5.08mm Hot Air Soldering Level HASL 0



Quality Assurance and Testing Standards
Prior to shipment, each PCB undergoes a rigorous 100% electrical test, ensuring compliance with IPC-Class-2 standards. This meticulous quality assurance process guarantees performance and reliability across all applications.



Versatile Applications Across Industries
The F4BTMS615 PCB is versatile enough for various demanding applications, including aerospace equipment, military radar systems, feed networks, and phased array antennas. Its exceptional properties make it suitable for satellite communications, where reliability is critical.



Conclusion
In conclusion, the F4BTMS615 PCB sets a new standard in high-performance laminates, engineered for extreme environments and demanding applications. Whether you are in aerospace, telecommunications, or military sectors, this PCB offers the precision and reliability you need. Elevate your designs and experience the future of PCB technology with the F4BTMS615. For more information, contact our sales team today!



F4BTMS615 Double Layer PCB 5.08mm Hot Air Soldering Level HASL 1

Contact Details
Bicheng Electronics Technology Co., Ltd

Contact Person: Ms. Ivy Deng

Tel: 86-755-27374946

Fax: 86-755-27374848

Send your inquiry directly to us (0 / 3000)
