Hybrid PCB 6-Layer Featuring RO4003C and FR4 Material Impedance Controlled
  • name
  • name
  • name

Hybrid PCB 6-Layer Featuring RO4003C and FR4 Material Impedance Controlled

MOQ: 1PCS
Price: USD9.99-99.99/PCS
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Material:
RO4003C And FR-4
Layer Count:
6-layer
PCB Size:
83.50mm X 66mm=1PCS, +/- 0.15mm
PCB Thickness:
1.1mm
Copper Weight:
1oz (1.4 Mils) Inner/outer Layers
Surface Finish:
Immersion Gold
Highlight:

RO4003C Hybrid PCB

,

FR4 Material Hybrid PCB

,

Impedance Controlled Hybrid PCB

Product Description

We are excited to announce our newly shipped 6-layer printed circuit board (PCB) designed with Rogers RO4003C materials. This innovative PCB combines exceptional electrical performance with manufacturing ease, making it a perfect solution for high-frequency applications.


Key Features

RO4003C Material

- Dielectric Constant (Dk): 3.38 ± 0.05 at 10 GHz
- Dissipation Factor: 0.0027 at 10 GHz
- Thermal Conductivity: 0.71 W/m/°K
- Thermal Coefficient of Dielectric Constant: +40 ppm/°C (operating range: -50°C to 150°C)
- CTE Matched to Copper:
- X axis: 11 ppm/°C
- Y axis: 14 ppm/°C
- Z-axis CTE: 46 ppm/°C
- Glass Transition Temperature (Tg): >280 °C
- Moisture Absorption: 0.06%
- Non-Brominated



RO4003C Typical Value
Property RO4003C Direction Units Condition Test Method
Dielectric Constant,εProcess 3.38±0.05 Z   10 GHz/23℃ IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant,εDesign 3.55 Z   8 to 40 GHz Differential Phase Length Method
Dissipation Factortan,δ 0.0027
0.0021		 Z   10 GHz/23℃
2.5 GHz/23℃		 IPC-TM-650 2.5.5.5
Thermal Coefficient of ε +40 Z ppm/℃ -50℃to 150℃ IPC-TM-650 2.5.5.5
Volume Resistivity 1.7 x 1010   MΩ.cm COND A IPC-TM-650 2.5.17.1
Surface Resistivity 4.2 x 109   MΩ COND A IPC-TM-650 2.5.17.1
Electrical Strength 31.2(780) Z Kv/mm(v/mil) 0.51mm(0.020") IPC-TM-650 2.5.6.2
Tensile Modulus 19,650(2,850)
19,450(2,821)		 X
Y		 MPa(ksi) RT ASTM D 638
Tensile Strength 139(20.2)
100(14.5)		 X
Y		 MPa(ksi) RT ASTM D 638
Flexural Strength 276
(40)		   MPa
(kpsi)		   IPC-TM-650 2.4.4
Dimensional Stability <0.3 X,Y mm/m
(mil/inch)		 after etch+E2/150℃ IPC-TM-650 2.4.39A
Coefficient of Thermal Expansion 11
14
46		 X
Y
Z		 ppm/℃ -55℃to288℃ IPC-TM-650 2.4.41
Tg >280   ℃ TMA A IPC-TM-650 2.4.24.3
Td 425   ℃ TGA   ASTM D 3850
Thermal Conductivity 0.71   W/M/oK 80℃ ASTM C518
Moisture Absorption 0.06   % 48hrs immersion 0.060"
sample Temperature 50℃		 ASTM D 570
Density 1.79   gm/cm3 23℃ ASTM D 792
Copper Peel Stength 1.05
(6.0)		   N/mm
(pli)		 after solder float 1 oz.
EDC Foil		 IPC-TM-650 2.4.8
Flammability N/A       UL 94
Lead-free Process Compatible Yes



S1000-2M Features

- Enhanced Z-axis CTE for improved through-hole reliability
- Excellent mechanical processability and thermal resistance
- Lead-free compatibility
- Tg: 180°C (DSC)
- UV blocking and AOI compatible
- High heat resistance with superior anti-CAF performance
- Low water absorption


PCB Specifications

- Layer Stackup:
- Copper Layer 1: 35 μm
- RO4003C Core: 0.305 mm (12 mil)
- Copper Layer 2: 35 μm
- Prepreg Bondply (1080 RC63%): 0.0644 mm (2.5 mil)
- Copper Layer 3: 35 μm
- FR-4 (Tg 170): 0.076 - 0.203 mm (3 mil)
- Copper Layer 4: 35 μm
- Prepreg Bondply (1080 RC63%): 0.0644 mm (2.5 mil)
- Copper Layer 5: 35 μm
- RO4003C Core: 0.305 mm (12 mil)
- Copper Layer 6: 35 μm



- Dimensions: 83.50 mm x 66 mm ± 0.15 mm
- Finished Board Thickness: 1.1 mm
- Finished Copper Weight: 1 oz (1.4 mils) on both inner and outer layers
-Minimum Trace/Space: 4/4 mils
- Minimum Hole Size: 0.2 mm
- Via Plating Thickness: 20 μm
- Surface Finish: Immersion Gold
- Solder Mask Color: Matt Green (top and bottom)
- Silkscreen Color: White (top only)
- Impedance Control: 50 ohm on 4 mil / 4 mil traces/gaps (top layer)
- Via Configuration: 0.2 mm via filled and capped
- Electrical Testing: 100% before shipment



Hybrid PCB 6-Layer Featuring RO4003C and FR4 Material Impedance Controlled 0



Typical Applications

This PCB is ideal for a variety of advanced applications, including:



- Commercial airline broadband antennas
- Microstrip and stripline circuits
- Millimeter wave applications
- Radar systems
- Guidance systems
- Point-to-point digital radio antennas


Quality Assurance

Manufactured to IPC-Class 2 standards, our PCB ensures high reliability and performance. The artwork is supplied in Gerber RS-274-X format, compatible with most PCB design tools.


Global Availability

Our high-performance PCB is available for worldwide shipping, providing cutting-edge solutions wherever you are located.



Hybrid PCB 6-Layer Featuring RO4003C and FR4 Material Impedance Controlled 1

Tags:

1oz RF PCB Board,

1.6mm RF PCB Board,

0.635mm RF PCB Board

Recommended Products
25mil RT Duroid 6010.2LM PCB 2-layer Rigid Circuit Board With Immersion Gold

25mil RT Duroid 6010.2LM PCB 2-layer Rigid Circuit Board With Immersion Gold

Contact Now
6.35mm F4BTMS350 RF PCB 1OZ Hot Air Soldering Level (HASL)

6.35mm F4BTMS350 RF PCB 1OZ Hot Air Soldering Level (HASL)

Contact Now
Immersion Gold PCB based on 20mil RO3003 Laminates 2 Layer Circuit Boards

Immersion Gold PCB based on 20mil RO3003 Laminates 2 Layer Circuit Boards

Contact Now
RF-10 PCB Double-Side 60mil 1.524mm Immersion Tin Finished

RF-10 PCB Double-Side 60mil 1.524mm Immersion Tin Finished

Contact Now
F4BM220 PCB Double-Sided 0.8mm Substrate Immersion Gold

F4BM220 PCB Double-Sided 0.8mm Substrate Immersion Gold

Contact Now
2-Layer PCB TP980 7.62mm Thick ENIG With Electroless Nickel Immersion Gold Coating

2-Layer PCB TP980 7.62mm Thick ENIG With Electroless Nickel Immersion Gold Coating

Contact Now
Double-Sided PCB TFA300 10mil 0.254mm Immersion Gold Finish

Double-Sided PCB TFA300 10mil 0.254mm Immersion Gold Finish

Contact Now
Precision 2 Layer RF PCB Built On 20mil RO4534 Material With Immersion Gold

Precision 2 Layer RF PCB Built On 20mil RO4534 Material With Immersion Gold

Contact Now
F4BTMS1000 PCB Double-Sided 0.508mm OSP Finished

F4BTMS1000 PCB Double-Sided 0.508mm OSP Finished

Contact Now
F4BTMS430 PCB 2 Layer 125mil 3.175mm Hot Air Soldering Level HASL

F4BTMS430 PCB 2 Layer 125mil 3.175mm Hot Air Soldering Level HASL

Contact Now
F4BM220 PCB 2 Layer 1.575mm 1oz Copper ENIG Finished

F4BM220 PCB 2 Layer 1.575mm 1oz Copper ENIG Finished

Contact Now
products
PRODUCTS DETAILS
Products

RF PCB Board

Rogers PCB Board

PTFE PCB Board

High TG PCB

Multi Layer PCB

Taconic PCB

HDI PCB Board

High Speed PCB

Impedance Controlled PCB

Flexible PCB Board

FR4 PCB Board

PCB Stencil

Metal Core PCB
Hybrid PCB 6-Layer Featuring RO4003C and FR4 Material Impedance Controlled
  • name
  • name
  • name
Hybrid PCB 6-Layer Featuring RO4003C and FR4 Material Impedance Controlled
MOQ: 1PCS
Price: USD9.99-99.99/PCS
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Material:
RO4003C And FR-4
Layer Count:
6-layer
PCB Size:
83.50mm X 66mm=1PCS, +/- 0.15mm
PCB Thickness:
1.1mm
Copper Weight:
1oz (1.4 Mils) Inner/outer Layers
Surface Finish:
Immersion Gold
Minimum Order Quantity:
1PCS
Price:
USD9.99-99.99/PCS
Packaging Details:
Vacuum bags+Cartons
Delivery Time:
8-9 working days
Payment Terms:
T/T
Supply Ability:
5000PCS per month
Highlight

RO4003C Hybrid PCB

,

FR4 Material Hybrid PCB

,

Impedance Controlled Hybrid PCB

Product Description

We are excited to announce our newly shipped 6-layer printed circuit board (PCB) designed with Rogers RO4003C materials. This innovative PCB combines exceptional electrical performance with manufacturing ease, making it a perfect solution for high-frequency applications.


Key Features

RO4003C Material

- Dielectric Constant (Dk): 3.38 ± 0.05 at 10 GHz
- Dissipation Factor: 0.0027 at 10 GHz
- Thermal Conductivity: 0.71 W/m/°K
- Thermal Coefficient of Dielectric Constant: +40 ppm/°C (operating range: -50°C to 150°C)
- CTE Matched to Copper:
- X axis: 11 ppm/°C
- Y axis: 14 ppm/°C
- Z-axis CTE: 46 ppm/°C
- Glass Transition Temperature (Tg): >280 °C
- Moisture Absorption: 0.06%
- Non-Brominated



RO4003C Typical Value
Property RO4003C Direction Units Condition Test Method
Dielectric Constant,εProcess 3.38±0.05 Z   10 GHz/23℃ IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant,εDesign 3.55 Z   8 to 40 GHz Differential Phase Length Method
Dissipation Factortan,δ 0.0027
0.0021		 Z   10 GHz/23℃
2.5 GHz/23℃		 IPC-TM-650 2.5.5.5
Thermal Coefficient of ε +40 Z ppm/℃ -50℃to 150℃ IPC-TM-650 2.5.5.5
Volume Resistivity 1.7 x 1010   MΩ.cm COND A IPC-TM-650 2.5.17.1
Surface Resistivity 4.2 x 109   MΩ COND A IPC-TM-650 2.5.17.1
Electrical Strength 31.2(780) Z Kv/mm(v/mil) 0.51mm(0.020") IPC-TM-650 2.5.6.2
Tensile Modulus 19,650(2,850)
19,450(2,821)		 X
Y		 MPa(ksi) RT ASTM D 638
Tensile Strength 139(20.2)
100(14.5)		 X
Y		 MPa(ksi) RT ASTM D 638
Flexural Strength 276
(40)		   MPa
(kpsi)		   IPC-TM-650 2.4.4
Dimensional Stability <0.3 X,Y mm/m
(mil/inch)		 after etch+E2/150℃ IPC-TM-650 2.4.39A
Coefficient of Thermal Expansion 11
14
46		 X
Y
Z		 ppm/℃ -55℃to288℃ IPC-TM-650 2.4.41
Tg >280   ℃ TMA A IPC-TM-650 2.4.24.3
Td 425   ℃ TGA   ASTM D 3850
Thermal Conductivity 0.71   W/M/oK 80℃ ASTM C518
Moisture Absorption 0.06   % 48hrs immersion 0.060"
sample Temperature 50℃		 ASTM D 570
Density 1.79   gm/cm3 23℃ ASTM D 792
Copper Peel Stength 1.05
(6.0)		   N/mm
(pli)		 after solder float 1 oz.
EDC Foil		 IPC-TM-650 2.4.8
Flammability N/A       UL 94
Lead-free Process Compatible Yes



S1000-2M Features

- Enhanced Z-axis CTE for improved through-hole reliability
- Excellent mechanical processability and thermal resistance
- Lead-free compatibility
- Tg: 180°C (DSC)
- UV blocking and AOI compatible
- High heat resistance with superior anti-CAF performance
- Low water absorption


PCB Specifications

- Layer Stackup:
- Copper Layer 1: 35 μm
- RO4003C Core: 0.305 mm (12 mil)
- Copper Layer 2: 35 μm
- Prepreg Bondply (1080 RC63%): 0.0644 mm (2.5 mil)
- Copper Layer 3: 35 μm
- FR-4 (Tg 170): 0.076 - 0.203 mm (3 mil)
- Copper Layer 4: 35 μm
- Prepreg Bondply (1080 RC63%): 0.0644 mm (2.5 mil)
- Copper Layer 5: 35 μm
- RO4003C Core: 0.305 mm (12 mil)
- Copper Layer 6: 35 μm



- Dimensions: 83.50 mm x 66 mm ± 0.15 mm
- Finished Board Thickness: 1.1 mm
- Finished Copper Weight: 1 oz (1.4 mils) on both inner and outer layers
-Minimum Trace/Space: 4/4 mils
- Minimum Hole Size: 0.2 mm
- Via Plating Thickness: 20 μm
- Surface Finish: Immersion Gold
- Solder Mask Color: Matt Green (top and bottom)
- Silkscreen Color: White (top only)
- Impedance Control: 50 ohm on 4 mil / 4 mil traces/gaps (top layer)
- Via Configuration: 0.2 mm via filled and capped
- Electrical Testing: 100% before shipment



Hybrid PCB 6-Layer Featuring RO4003C and FR4 Material Impedance Controlled 0



Typical Applications

This PCB is ideal for a variety of advanced applications, including:



- Commercial airline broadband antennas
- Microstrip and stripline circuits
- Millimeter wave applications
- Radar systems
- Guidance systems
- Point-to-point digital radio antennas


Quality Assurance

Manufactured to IPC-Class 2 standards, our PCB ensures high reliability and performance. The artwork is supplied in Gerber RS-274-X format, compatible with most PCB design tools.


Global Availability

Our high-performance PCB is available for worldwide shipping, providing cutting-edge solutions wherever you are located.

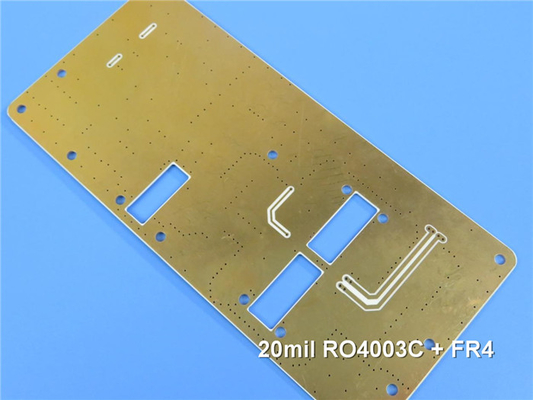

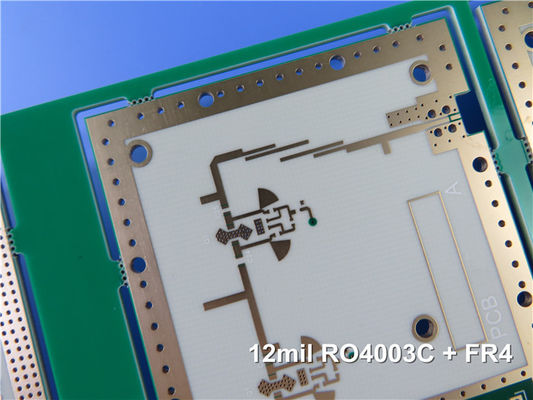

Hybrid PCB 6-Layer Featuring RO4003C and FR4 Material Impedance Controlled 1

Tags:

1oz RF PCB Board,

1.6mm RF PCB Board,

0.635mm RF PCB Board

Bicheng Electronics Technology Co., Ltd
6-11C Shidai Jingyuan,Fuyong, Baoan, Shenzhen, Guangdong, China 518103
Tel: 86-755-27374946
Sitemap |  Privacy Policy | China Good Quality RF PCB Board Supplier. Copyright © 2020-2025 Bicheng Electronics Technology Co., Ltd . All Rights Reserved.
