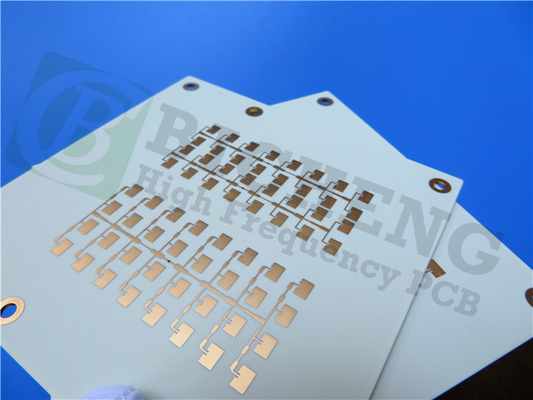

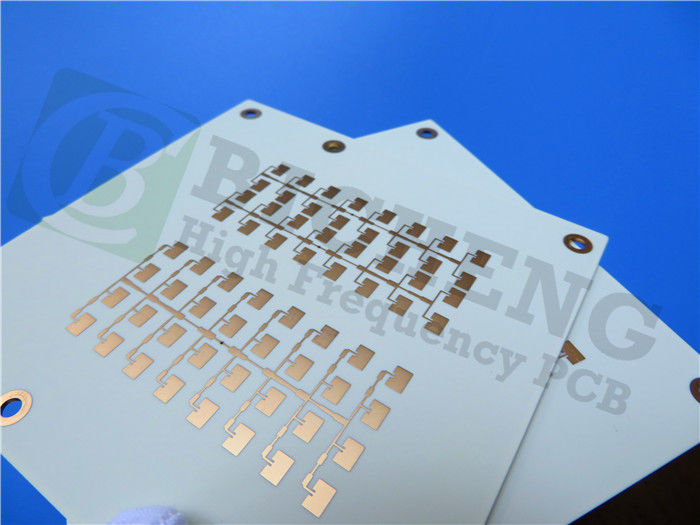

30mil RO4730G3 Pcb Rogers 2-Layer ENIG Surface Finished

Introduction
The Rogers RO4730G3 PCB is a cutting-edge hydrocarbon/ceramic/woven glass laminate designed specifically for antenna applications. This UL 94 V-0 rated material serves as a reliable, low-cost alternative to conventional PTFE-based laminates. The unique resin systems in RO4730G3 provide the critical properties necessary for optimal antenna performance. Fully compatible with standard FR-4 and high-temperature lead-free solder processing, RO4730G3 eliminates the need for special treatments required for plated through-hole preparation on traditional PTFE laminates. This affordability allows designers to optimize both cost and performance effectively.

Features

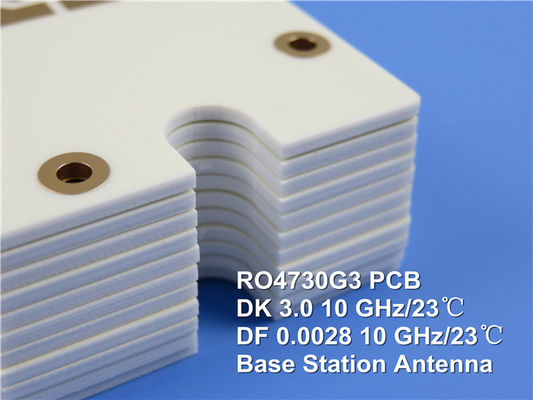

The RO4730G3 boasts a dielectric constant (Dk) of 3.0 ± 0.05 at 10 GHz, along with a low dissipation factor of 0.0028. Its thermal coefficient of Dk is 34 ppm/°C, and the material exhibits a coefficient of thermal expansion (CTE) that is well-matched to copper, with values of 15.9 ppm/°C (X), 14.4 ppm/°C (Y), and 35.2 ppm/°C (Z). The glass transition temperature (Tg) exceeds 280 °C, while the decomposition temperature (Td) is 411 °C per TGA. Additionally, RO4730G3 features a thermal conductivity of 0.45 W/mK, ensuring efficient heat dissipation.

Benefits
This low-loss dielectric material is designed with a low-profile foil, leading to reduced passive intermodulation (PIM) and low insertion loss. The unique closed microsphere filler contributes to a lightweight construction, making the material approximately 30% lighter than traditional PTFE/glass laminates. With a low Z-axis CTE of less than 30 ppm/°C and a high Tg, RO4730G3 offers significant design flexibility and compatibility with automated assembly processes.

The low thermal coefficient of dielectric constant (TCDk) of less than 40 ppm/°C ensures consistent circuit performance over a range of temperatures. The specially formulated thermoset resin system provides ease of fabrication and reliable plated through-hole (PTH) processing capability. Additionally, RO4730G3 is environmentally friendly, compatible with lead-free processes, and RoHS compliant.

Technical Specifications
The PCB features a 2-layer rigid stackup, consisting of:

Copper Layer 1: 35 μm
Rogers RO4730G3 Core: 0.762 mm (30 mil)
Copper Layer 2: 35 μm

The board dimensions are 88.2 mm x 66.47 mm (± 0.15 mm), with a finished board thickness of 0.8 mm. It supports a minimum trace/space of 4/4 mils and a minimum hole size of 0.4 mm. The finished copper weight is 1 oz (1.4 mils) for the outer layers, and the via plating thickness is 20 μm. The surface finish is Electroless Nickel Immersion Gold (ENIG), with a white silkscreen on the top and a green solder mask.

Applications

The Rogers RO4730G3 PCB is particularly suitable for applications such as cellular base station antennas. Its combination of performance, cost-effectiveness, and ease of processing makes it an ideal choice for engineers and designers in the telecommunications industry.

Availability
The Rogers RO4730G3 PCB is available worldwide, meeting the demands of modern antenna applications with its advanced properties and user-friendly processing methods.
