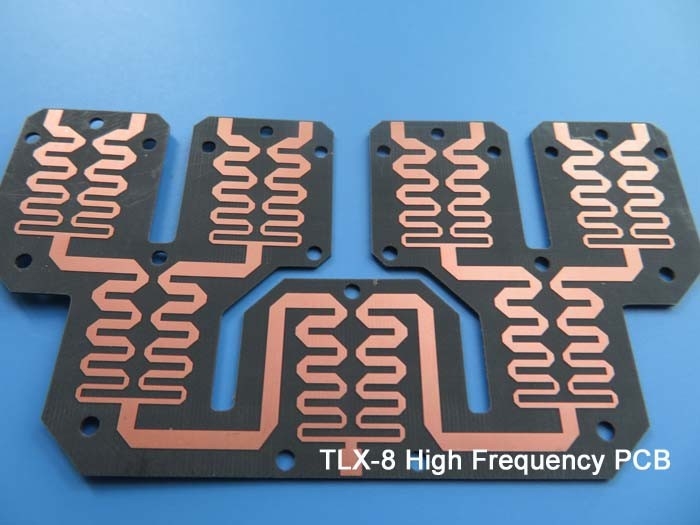

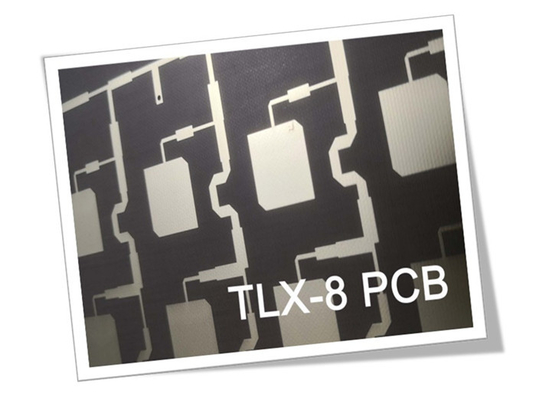

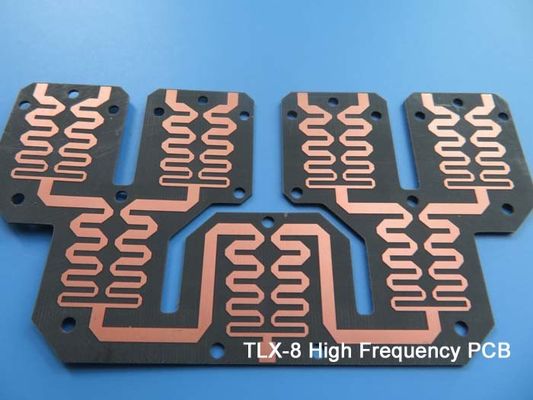

60mil TLX-8 PCB 2 Layer Immersion Gold Rigid Circuits

60mil TLX-8 PCB 2 Layer Immersion Gold Rigid Circuits
60mil TLX-8 PCB 2 Layer Immersion Gold Rigid Circuits 60mil TLX-8 PCB 2 Layer Immersion Gold Rigid Circuits 60mil TLX-8 PCB 2 Layer Immersion Gold Rigid Circuits

Large Image :  60mil TLX-8 PCB 2 Layer Immersion Gold Rigid Circuits

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99/PCS
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Material: TLX-8 PCB Size: 108.72mm X 59.59 Mm=1PCS, +/- 0.15mm
Copper Weight: 1oz (1.4 Mils) Surface Finish: Immersion Gold
Layer Count: 2-layer PCB Thickness: 1.6mm
High Light:

60mil Immersion Gold Rigid Circuits

,

TLX-8 Immersion Gold Rigid Circuits

,

Immersion Gold pcb 2 layer

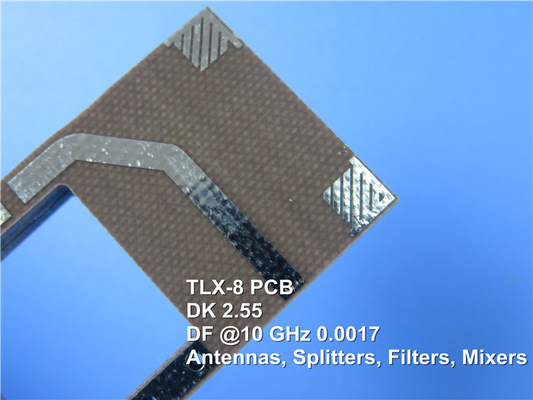

The TLX-8 is a PTFE fiberglass laminate material designed for reliable performance in a wide range of RF applications. Its versatility comes from the availability of various thicknesses and copper cladding options. This material is well-suited for low-layer-count microwave designs, offering mechanical reinforcement for use in severe environments such as:



- High-vibration conditions during space launch
- High-temperature exposure in engine modules
- Radiation-rich environments in space
- Extreme marine conditions for warship antennas
- Wide temperature ranges for altimeter substrates



Key Benefits
- Excellent PIM (Passive Intermodulation) performance, measured at less than -160 dBc
- Excellent mechanical and thermal properties
- Low and stable dielectric constant (Dk)
- Dimensionally stable with low moisture absorption
- Tightly controlled Dk
- Low dissipation factor (Df)
- UL 94 V0 flammability rating
- Suitable for low-layer-count microwave designs



TLX-8 TYPICAL VALUES
Property Test Method Unit Value Unit Value
DK @10 GHz IPC-650 2.5.5.3   2.55   2.55
Df @1.9 GHz IPC-650 2.5.5.5.1   0.0012   0.0012
Df @10 GHz IPC-650 2.5.5.5.1   0.0017   0.0017
Dielectric Breakdown IPC-650 2.5.6 kV >45 kV >45
Moisture Absorption IPC-650 2.6.2.1 % 0.02 % 0.02
Flexural Strength(MD) ASTM D 709 psi 28,900 N/mm2
Flexural Strength(CD) ASTM D 709 psi 20,600 N/mm2
Tensile Strength(MD) ASTM D 902 psi 35,600 N/mm2
Tensile Strength(CD) ASTM D 902 psi 27,500 N/mm2
Elongation at Break(MD) ASTM D 902 % 3.94 % 3.94
Elongation at Break(CD) ASTM D 902 % 3.92 % 3.92
Young's Modulus(MD) ASTM D 902 kpsi 980 N/mm2
Young's Modulus(CD) ASTM D 902 kpsi 1,200 N/mm2
Young's Modulus(MD) ASTM D 3039 kpsi 1,630 N/mm2
Poisson's Ratio ASTM D 3039   0.135 N/mm
Peel Stength(1 oz.ed) IPC-650 2.4.8 Sec.5.2.2(Thermal Stress.) Ibs./linear inch 15 N/mm
Peel Stength(1 oz.RTF) IPC-650 2.4.8 Sec.5.2.2(Thermal Stress.) Ibs./linear inch 17 N/mm
Peel Stength(½ oz.ed) IPC-650 2.4.8.3(Elevated Temp.) Ibs./linear inch 14 N/mm
Peel Stength(½ oz.ed) IPC-650 2.4.8 Sec.5.2.2(Thermal Stress.) Ibs./linear inch 11 N/mm
Peel Stength(1 oz.rolled) IPC-650 2.4.8 Sec.5.2.2(Thermal Stress.) Ibs./linear inch 13 N/mm 2.1
Thermal Conductivity ASTM F433/ASTM 1530-06 W/M*K 0.19 W/M*K 0.19
Dimensional Stability(MD) IPC-650 2.4.39 Sec.5.5(After Bake.) mils/in. 0.06 mm/M
Dimensional Stability(CD) IPC-650 2.4.39 Sec.5.4(After Bake.) mils/in. 0.08 mm/M
Dimensional Stability(MD) IPC-650 2.4.39 Sec.5.5(Thermal Stress.) mils/in. 0.09 mm/M
Dimensional Stability(CD) IPC-650 2.4.39 Sec.5.5(Thermal Stress.) mils/in. 0.1 mm/M
Surface Resistivity IPC-650 2.5.17.1 Sec.5.2.1(Elevated Temp.) Mohm 6.605 x 108 Mohm 6.605 x 108
Surface Resistivity IPC-650 2.5.17.1 Sec.5.2.1(Humidity Cond.) Mohm 3.550 x 106 Mohm 3.550 x 106
Volume Resistivity IPC-650 2.5.17.1 Sec.5.2.1(Elevated Temp.) Mohm/cm 1.110 x 1010 Mohm/cm 1.110 x 1010
Volume Resistivity IPC-650 2.5.17.1 Sec.5.2.1(Humidity Cond.) Mohm/cm 1.046 x 1010 Mohm/cm 1.046 x 1010
CTE(X axis)(25-260) IPC-650 2.4.41/ASTM D 3386 ppm/ 21 ppm/ 21
CTE(Y axis)(25-260) IPC-650 2.4.41/ASTM D 3386 ppm/ 23 ppm/ 23
CTE(Z axis)(25-260) IPC-650 2.4.41/ASTM D 3386 ppm/ 215 ppm/ 215
Density(Specific Gravity) ASTM D 792 g/cm3 2.25 g/cm3 2.25
Td(2% Weight Loss) IPC-650 2.4.24.6(TGA) 535
Td(5% Weight Loss) IPC-650 2.4.24.6(TGA) 553
Flammability Rating UL-94   V-0   V-0



Technical Specifications



Electrical Properties
- Dielectric Constant @ 10 GHz: 2.55 ± 0.04
- Dissipation Factor @ 10 GHz: 0.0018
- Surface Resistivity (Elevated Temp.): 6.605 x 10^8 Mohm
- Surface Resistivity (Humidity Cond.): 3.550 x 10^6 Mohm
- Volume Resistivity (Elevated Temp.): 1.110 x 10^10 Mohm/cm
- Volume Resistivity (Humidity Cond.): 1.046 x 10^10 Mohm/cm



Dimensional Stability
- MD After Bake: 0.06 mm/M (mils/in)
- CD After Bake: 0.08 mm/M (mils/in)
- MD Thermal Stress: 0.09 mm/M (mils/in)
- CD Thermal Stress: 0.10 mm/M (mils/in)

CTE (25-260 °C)
- X: 21 ppm/°C
- Y: 23 ppm/°C
- Z: 215 ppm/°C



Thermal Properties
- 2% Weight Loss: 535 °C
- 5% Weight Loss: 553 °C

Chemical/Physical Properties
- Moisture Absorption: 0.02%
- Dielectric Breakdown: > 45 kV
- Flammability Rating: V-0 (UL-94)



60mil TLX-8 PCB 2 Layer Immersion Gold Rigid Circuits 0



PCB Construction
- 2-layer rigid PCB
- Copper layer 1: 35 μm
- Taconic TLX-8 Core: 1.524 mm (60 mil)
- Copper layer 2: 35 μm
- Board dimensions: 108.72 mm x 59.59 mm ± 0.15 mm
- Minimum trace/space: 5/5 mils
- Minimum hole size: 0.3 mm
- Finished board thickness: 1.6 mm
- Finished copper weight: 1 oz (1.4 mils) on outer layers
- Via plating thickness: 20 μm
- Surface finish: Immersion gold
- Top silkscreen: White
- Bottom silkscreen: None
- Top solder mask: None
- Bottom solder mask: None
- 100% electrical test prior to shipment



Availability
Worldwide



Typical Applications
- Radar systems
- Mobile communications
- Microwave test equipment
- Microwave transmission devices
- Couplers, splitters, combiners, amplifiers, and antennas
