RO3003G2 PCB 5mil 2-layer Immersion Gold Circuits

MOQ:	1PCS
Price:	USD9.99-99.99/PCS
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Material:

RO3003G2

PCB Size:

41.71mm X 64mm=1PCS, +/- 0.15mm

Copper Weight:

1oz (1.4 Mils)

Surface Finish:

Immersion Gold

Layer Count:

2-layer

PCB Thickness:

0.2mm

Highlight:

Immersion Gold Circuits PCB

5mil PCB

RO3003G2 PCB

Product Description

The Rogers RO3003G2 is a high-performance, ceramic-filled PTFE laminate designed for millimeter wave automotive radar applications. This latest iteration of Rogers' industry-leading RO3003 solutions was developed based on customer feedback to address the next-generation needs of ADAS (Advanced Driver Assistance Systems) like adaptive cruise control, forward collision warning, and lane change assist.

Key Features:
- Dielectric constant (Dk) of 3.0 ±0.04 at 10 GHz and 3.07 at 77 GHz
- Low dissipation factor of 0.0011 at 10 GHz
- Excellent thermal coefficient of dielectric constant (-35 ppm/°C)
- Very low profile (VLP) electrodeposited (ED) copper
- Copper-matched coefficient of thermal expansion (CTE) for enhanced reliability
- Homogeneous construction with reduced dielectric porosity

PROPERTY	RO3003G2	Direction	Unit	condition	Test Method
Dielectric Constant, er Process	3.00 ± 0.04	Z	-	10 GHz 23°C	IPC-TM-650 2.5.5.5 Clamped Stripline
Dielectric Constant, er Design	3.07	Z	-	77 GHZ	Differential Phase Length Method
Dissipation Factor, tan d	0.0011	Z	-	10 GHz 23°C	IPC-TM-650 2.5.5.5
Thermal Coefficient of er	-35	Z	ppm/°C	10 GHz -50 to 150°C	IPC-TM-650 2.5.5.5
Dimensional Stability	-0.16 -0.14	X Y	mm/m	Method C	IPC TM-650 2.2.4
Volume Resistivity	1.4 x 10^9	-	MΩ•cm	COND A	IPC 2.5.17.1
Surface Resistivity	2.6 x 10⁸	-	MΩ	COND A	IPC 2.5.17.1
Tensile Modulus	378 396	X Y	ksi	23°C	ASTM D638
Moisture Absorption	0.06	-	%	D48/50	IPC-TM-650 2.6.2.1
Specific Heat	0.73 0.83	Z	J/g/K	0°C 50°C	ASTM E1269-11
Thermal Conductivity	0.43	Z	W/m/K	50°C	ASTM D5470
Coefficient of Thermal Expansion	16 17 18	X Y Z	ppm/°C	23°C/50% RH	IPC-TM-650 2.4.41
Td	500	-	°CTGA	-	ASTM D3850
Density	2.15	-	gm/cm3	23°C	ASTM D792
Copper Peel Strength	12.0	-	lb/in	1/2 oz. EDC After Solder Float	IPC-TM-2.4.8
Flammability	V-0	-	-	-	UL 94
Lead Free Process Compatible	YES	-	-	-	-

PCB Material:	Ceramic-filled PTFE Laminates
Designation:	RO3003G2
Dielectric constant:	3
Dissipation factor	0.0011
Layer count:	Single Sided, Double Sided, Multi-layer PCB, Hybrid PCB
Copper weight:	1oz (35µm), 2oz (70µm)
Dielectric thickness	5mil (0.127mm), 10mil (0.254mm)
PCB size:	≤400mm X 500mm
Solder mask:	Green, Black, Blue, Yellow, Red etc.
Surface finish:	Immersion gold, HASL, Immersion silver, Immersion tin, ENEPIG, OSP, Bare copper, Pure gold etc..

Benefits:
- Best-in-class performance for insertion loss
- Minimized dielectric constant variation in finished PCB
- Enables the trend toward smaller-diameter vias

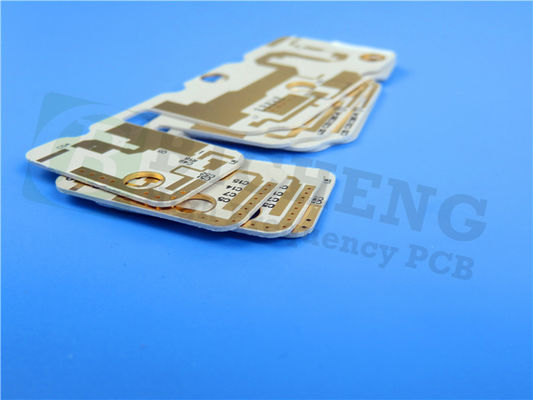

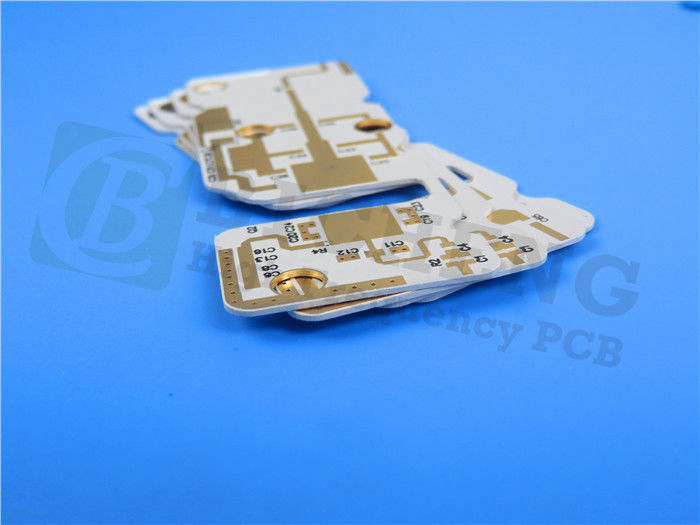

This 2-layer rigid PCB features a 0.127 mm (5 mil) Rogers RO3003G2 core with 35 μm copper layers. It measures 41.71 mm x 64 mm with a finished thickness of 0.2 mm. The PCB has a minimum trace/space of 4/5 mils, a minimum hole size of 0.3 mm, and an immersion gold surface finish.

Applications:

It meets IPC-Class-2 quality standards, the RO3003G2 PCB is well-suited for a variety of ADAS applications, including adaptive cruise control, forward collision warning, active brake assist, lane change assist, traffic jam pilot, parking pilot, and blind spot detection.
