0.8mm TU-768 High Tg PCB Board Black Soldermask White Silkscreen ENIG

0.8mm TU-768 High Tg PCB Board Black Soldermask White Silkscreen ENIG
0.8mm TU-768 High Tg PCB Board Black Soldermask White Silkscreen ENIG 0.8mm TU-768 High Tg PCB Board Black Soldermask White Silkscreen ENIG 0.8mm TU-768 High Tg PCB Board Black Soldermask White Silkscreen ENIG

Large Image :  0.8mm TU-768 High Tg PCB Board Black Soldermask White Silkscreen ENIG

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Material: High-Tg And High Thermal Reliability Epoxy Resin DK: 4.3
Thickness: 0.8mm Surface Finish: ENIG
High Light:

ENIG TU-768 High Tg PCB


0.8mm TU-768 High Tg PCB


TU-768 High Tg PCB Board

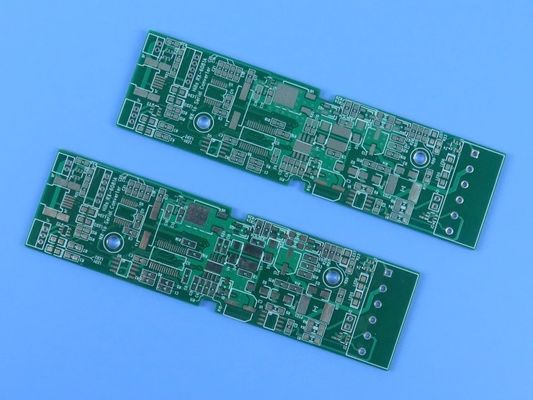

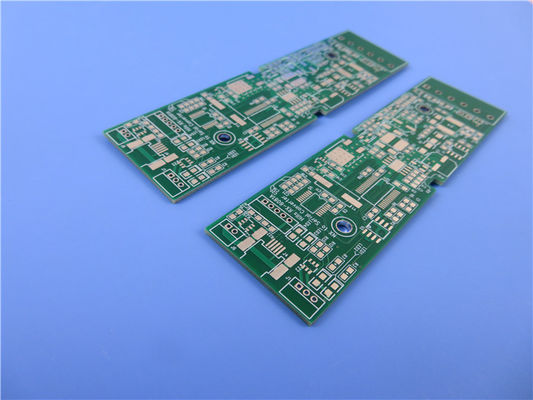

Sharing a new RF PCB made of TU-768 material. The TU-768 laminate by Taiwan Union is a high-Tg (glass transition temperature) and high thermal reliability laminate designed to meet rigorous performance requirements. It is accompanied by TU-768P, a matching prepreg for enhanced functionality. These laminates and prepregs are constructed using high-quality woven E-glass coated with an epoxy resin system, offering UV-block characteristics and compatibility with automated optical inspection (AOI) processes. The TU-768 series is well-suited for applications that demand resilience against thermal cycles and extensive assembly work. Notably, TU-768 laminates exhibit exceptional CTE (coefficient of thermal expansion), superior chemical resistance, thermal stability, and CAF (conductive anodic filament) resistance properties.


Key Features:
- Dk (dielectric constant) of 4.3 at 10GHz
- Dissipation factor of .0023 at 10GHz
- CTE x-axis of 11-15 ppm/°C, CTE y-axis of 11-15 ppm/°C
- Coefficient of thermal expansion matched to copper
- Decomposition Temperature (Td) of 350 °C TGA
- Tg (glass transition temperature) of 180°C
- High thermal reliability with T260 >60 min, T288>15 min, T300 >2 min


- Compatible with lead-free processes
- Excellent coefficient of thermal expansion for stability
- Anti-CAF (conductive anodic filament) property for improved reliability
- Superior chemical and thermal resistance
- Fluorescent properties enable AOI (automated optical inspection)
- Resistant to moisture-related issues


  Typical Values Conditioning IPC-4101 /126
Tg (DMA) 190°C
Tg (DSC) 180°C   > 170°C
Tg (TMA) 170°C E-2/105
Td (TGA) 350°C   > 340°C
CTE x-axis 11~15 ppm/°C   N/A
CTE y-axis 11~15 ppm/°C E-2/105 N/A
CTE z-axis 2.70%   < 3.0%
Thermal Stress,Solder Float, 288°C > 60 sec A > 10 sec
T260 > 60 min   > 30 min
T288 > 20 min E-2/105 > 15 min
T300 > 2 min   > 2 min
Flammability 94V-0 E-24/125 94V-0
DK & DF
Permittivity (RC 50%) @10GHz 4.3
Loss Tangent (RC 50%) @10GHz 0.018
Permittivity (RC50%)
1GHz (SPC method/4291B) 4.4 / 4.3   < 5.2
5GHz (SPC method) 4.3 E-2/105 N/A
10GHz (SPC method) 4.3   N/A
Loss Tangent (RC50%)
1GHz (SPC method/4291B) 0.019 /0.018   < 0.035
5GHz (SPC method) 0.021 E-2/105 N/A
10GHz (SPC method) 0.023   N/A
Volume Resistivity > 1010 MΩ•cm C-96/35/90 > 106 MΩ•cm
Surface Resistivity > 108 MΩ C-96/35/90 > 104 MΩ
Electric Strength > 40 KV/mm A > 30 KV/mm
Dielectric Breakdown > 50 kV A > 40 KV
Young’s Modulus
Warp Direction 25 GPa A N/A
Fill Direction 22 GPa
Flexural Strength
Lengthwise > 60,000 psi A > 60,000 psi
Crosswise > 50,000 psi A > 50,000 psi
Peel Strength, 1.0 oz RTF Cu foil 7~9 lb/in A > 4 lb/in
Water Absorption 0.18% E-1/105+D-24/23 < 0.8 %


PCB Stackup:
This PCB is a 2-layer rigid PCB design with the following specifications:
- Copper_layer_1: 35 μm
- TU-768 Core: 0.76 mm
- Copper_layer_2: 35 μm


PCB Construction Details:
- Board dimensions: 47.8mm x 47.8mm (1PCS), with a tolerance of +/- 0.15mm
- Minimum Trace/Space: 4/4 mils, allowing for precise circuitry
- Minimum Hole Size: 0.2mm, providing flexibility for component placement
- No blind vias, simplifying the manufacturing process
- Finished board thickness: 0.8mm, balancing durability and compactness
- Finished Cu weight: 1oz (1.4 mils) outer layers, ensuring efficient conduction
- Via plating thickness: 20 μm, enabling reliable interconnectivity
- Surface finish: Immersion Gold, for protection and improved conductivity
- Top Silkscreen: White, facilitating component identification
- Bottom Silkscreen: None, for a clean and minimalistic appearance
- Top Solder Mask: Black, enhancing soldering and protection
- Bottom Solder Mask: None, for a simplified PCB design
- Each PCB undergoes a 100% electrical test prior to shipment, ensuring quality and functionality


PCB Statistics:
- Components: 11, providing versatility for various applications
- Total Pads: 24, facilitating component connectivity
- Thru Hole Pads: 15, enabling secure connections
- Top SMT Pads: 9, supporting surface mount technology (SMT) components
- Bottom SMT Pads: 0, indicating single-sided SMT assembly
- Vias: 7, allowing for efficient signal routing
- Nets: 2, ensuring proper connectivity


PCB Material: High-Tg and High Thermal Reliability Epoxy Resin
Designation: TU-768
Dielectric constant: 4.3
Layer count: Double Layer, Multilayer, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm), 3oz (105µm), 4oz (140µm), 5oz (175µm)
PCB thickness: 10mil (0.254mm), 15mil (0.381mm), 20mil (0.508mm), 25mil(0.635mm), 30mil (0.762mm), 62mil(1.575mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Matt Black, Blue, Matt Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, OSP, Immersion tin, Immersion Silver etc..
Technology: HDI, Via in pad, Impedance Control, Blind via/Buried via, Edge Plating, BGA, Countsunk Holes etc.


0.8mm TU-768 High Tg PCB Board Black Soldermask White Silkscreen ENIG 0


Artwork Supplied:
This PCB artwork is provided in Gerber RS-274-X format, a widely used industry standard for PCB manufacturing. This format ensures compatibility and accuracy during the fabrication process.


Quality Standard and Availability:
The PCB adheres to the IPC-Class-2 quality standard, guaranteeing high-quality manufacturing and reliability. It is available for purchase worldwide, making it accessible to customers globally.


Typical Applications:

The TU-768 PCB is widely applicable in various fields, including:
- Consumer Electronics
- Servers and workstations
- Automotive industry


With its high-Tg and thermal reliability features, the TU-768 PCB is an excellent choice for demanding electronic applications that require exceptional performance and durability.
