20mil RT Duroid 6035HTC PCB Substrates 1oz With Immersion Silver

20mil RT Duroid 6035HTC PCB Substrates 1oz With Immersion Silver
20mil RT Duroid 6035HTC PCB Substrates 1oz With Immersion Silver 20mil RT Duroid 6035HTC PCB Substrates 1oz With Immersion Silver

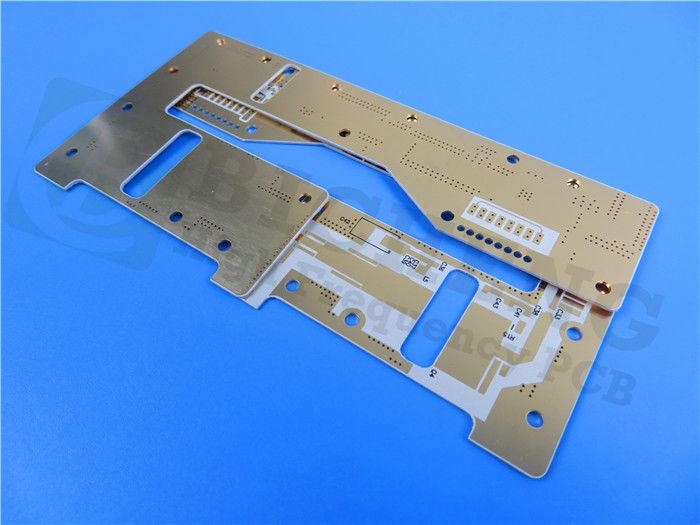

Large Image :  20mil RT Duroid 6035HTC PCB Substrates 1oz With Immersion Silver

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99/PCS
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
High Light:

20mil PCB Substrates


PCB Board 1oz


Ceramic Filled PTFE Composites PCB Substrates

Introducing our newly shipped PCB, crafted with Rogers RT/duroid 6035HTC material, a cutting-edge substrate designed to deliver exceptional performance for your electronic designs. With its advanced features and reliable construction, this PCB unlocks new possibilities for a wide range of applications. Let's delve into the key specifications and benefits that make this PCB a game-changer for your projects.


PCB Substrates: Unparalleled Performance and Thermal Stability

The Rogers RT/duroid 6035HTC material is a ceramic-filled PTFE composite, known for its outstanding performance and thermal stability. With a dielectric constant (DK) of 3.5 +/- 0.05 at 10 GHz/23°C, this substrate provides excellent electrical efficiency, making it ideal for high-frequency applications. The low dissipation factor of 0.0013 at 10 GHz/23°C guarantees minimal signal loss, ensuring optimal signal integrity.


Dielectric Constant,εProcess 3.50±0.05 Z   10 GHz/23℃ IPC-TM-650 Clamped Stripline
Dielectric Constant,εDesign 3.6 Z   8 GHz - 40 GHz Differential Phase Length Method
Dissipation Factor 0.0013 Z   10 GHz/23 IPC-TM-650
Thermal Coefficient of ε -66 Z ppm/℃ -50 to 150 mod IPC-TM-650,
Volume Resistivity 108   MΩ.cm A IPC-TM-650,
Surface Resistivity 108   A IPC-TM-650,
Dimensional Stability -0.11 -0.08 CMD MD mm/m (mils/inch) 0.030" 1oz EDC foil Thickness after etch '+E4/105 IPC-TM-650 2.4.39A
Tensile Modulus 329 244 MD CMD kpsi 40 hrs @23/50RH ASTM D638
Moisure Absorption 0.06   % D24/23 IPC-TM-650 ASTM D570
Coefficient of Thermal Expansion (-50 to 288 ) 19 19 39 X Y Z ppm/ 23 / 50% RH IPC-TM-650 2.4.41
Thermal Conductivity 1.44   W/m/k 80 ASTM C518
Density 2.2   gm/cm3 23 ASTM D792
Copper Peel Stength 7.9   pli 20 sec. @288 IPC-TM-650 2.4.8
Flammability V-0       UL 94
Lead-Free Process Compatible Yes


Thermal Management and Stability: Key Features for High-Power Applications

This PCB excels in thermal management with its high thermal conductivity of 1.44 W/m/K at 80°C. It efficiently dissipates heat, allowing for lower operating temperatures in high-power applications. The low loss tangent ensures excellent high-frequency performance, enabling your circuits to operate seamlessly. The thermally stable low-profile and reverse-treated copper foil contribute to lower insertion loss and excellent thermal stability of traces. The advanced filler system enhances drillability and extends tool life compared to alumina-containing circuit materials.


Precise Construction Details for Optimal Performance

The construction of this PCB features a 2-layer rigid design. It consists of copper layers with a thickness of 35 μm, enclosing the 0.508 mm (20mil) RT/duroid 6035HTC core. The board dimensions measure 150.2 mm x 66.5 mm, offering ample space for your designs. With a tolerance of +/- 0.15mm, precise manufacturing is ensured. The PCB supports a minimum trace/space of 7/7 mils and a minimum hole size of 0.5mm, accommodating intricate circuit layouts. The finished board thickness is 0.6mm, with 1oz (1.4 mils) outer layer copper weight and 20 μm via plating thickness, ensuring robust construction and reliable performance.

PCB Material: Ceramic-filled PTFE composites
Designation: RT/duroid 6035HTC
Dielectric constant: 3.50±0.05
Layer count: Double Layer, Multilayer, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 10mil (0.254mm), 20mil(0.508mm), 30mil (0.762mm), 60mil(1.524mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, OSP etc..


Additional Specifications and Applications

This PCB boasts an immersion silver surface finish, providing excellent conductivity and corrosion resistance. It does not include silkscreen or solder mask, offering a clean and minimalistic appearance. Before shipment, the PCB undergoes 100% electrical testing to ensure the highest quality standards for your projects.

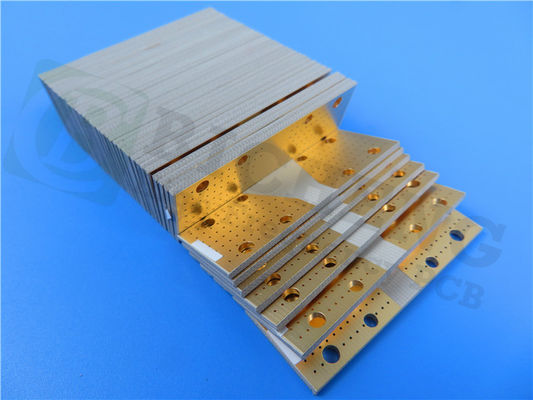

20mil RT Duroid 6035HTC PCB Substrates 1oz With Immersion Silver 0


With worldwide availability, this PCB suits various industries and applications. Its exceptional performance makes it an ideal choice for high-frequency and high-power applications, such as RF and microwave amplifiers, power amplifiers, couplers, filters, and more. Embrace the future of advanced PCB technology with Rogers RT/duroid 6035HTC and elevate your designs to unprecedented levels of performance and reliability.


For any technical inquiries or to explore the possibilities of RT/duroid 6035HTC in your applications, please contact our dedicated sales team at Experience the power of advanced PCB materials and take your projects to new heights of success.
