31mil RF-60A Double Sided 1oz Immersion Gold PCB With White Silkscreen

31mil RF-60A Double Sided 1oz Immersion Gold PCB With White Silkscreen
31mil RF-60A Double Sided 1oz Immersion Gold PCB With White Silkscreen

Large Image :  31mil RF-60A Double Sided 1oz Immersion Gold PCB With White Silkscreen

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD9.99-99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
High Light:

White Silkscreen Immersion Gold PCB


Double Sided Immersion Gold PCB


RF-60A RF PCB Board

We are glad to introduce our newly shipped PCB. It is made of 31mil RF-60A material for RF applications. Let's look at the details of this PCB.

RF-60A PCB Material:

Crafted with precision and innovation, our RF-60A PCB features an organic ceramic fiberglass reinforced laminate, ensuring unparalleled reliability and durability. The dielectric constant at 10 GHz is 6.15, and the dissipation factor at 10 GHz is 0.0028. With a moisture absorption rate of only 0.02%, it remains highly stable even in varying environmental conditions. The CTE (coefficient of thermal expansion) values are x CTE: 9 ppm/°C, y CTE: 8 ppm/°C, and z CTE: 69 ppm/°C.


Key Benefits:
Experience the advantages that our RF-60A PCB brings to your projects. With low moisture absorption, it ensures enhanced reliability in various environments. The stable Dk (dielectric constant) over a wide frequency range guarantees consistent signal integrity. Its dimensionally stable construction ensures precise performance and compatibility, while the low Z-axis expansion minimizes signal loss and maximizes efficiency. With high flexural strength, the RF-60A PCB seamlessly integrates into demanding applications. Moreover, its exceptional interlaminar bonds ensure superior reliability and durability. Rest assured, our RF-60A PCB is also ROHS & WEEE compliant, meeting environmental standards.


Construction Details:
We pay meticulous attention to every detail to deliver a top-notch product. The RF-60A PCB features a 2-layer rigid stackup optimized for optimal performance. Its copper layers are 35 μm thick, while the RF-60A core is 31mil (0.787 mm) thick.


mpressive Strength and Reliability:
Our RF-60A PCB is designed to exceed your expectations. The board dimensions measure 157mm x 109mm (8PCS, 8 Types) with a tolerance of +/- 0.15mm. The minimum trace/space is 5/6 mils, allowing for intricate designs, and the minimum hole size is 0.35mm, ensuring precise connections. There are no blind vias, simplifying the manufacturing process. The finished board thickness is 0.9mm, striking a balance between performance and flexibility. With a finished copper weight of 1oz (1.4 mils) on the outer layers, optimal conductivity is ensured. The via plating thickness is 25 μm, providing reliable connections. The surface finish is immersion gold, guaranteeing excellent solderability. The top silkscreen is white, facilitating clear component identification. The RF-60A PCB also features a top solder mask in green for enhanced protection. A 100% electrical test is conducted prior to shipment to ensure quality and reliability.


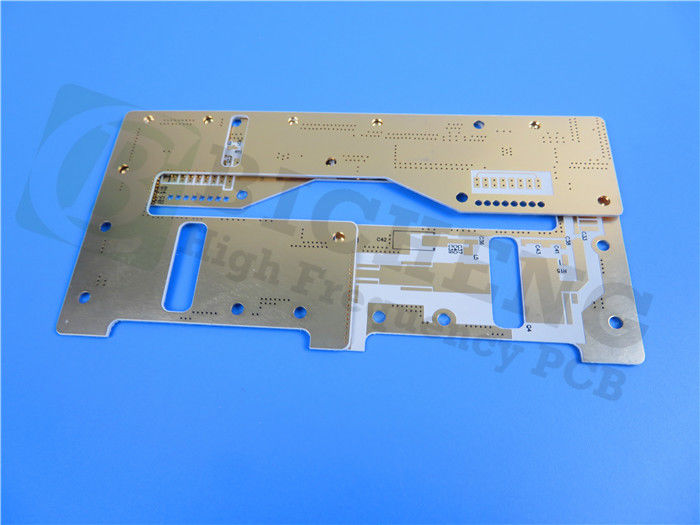

31mil RF-60A Double Sided 1oz Immersion Gold PCB With White Silkscreen 0


PCB Statistics:
Our RF-60A PCB is designed to meet your diverse needs. It can accommodate 25 components with a total of 172 pads, including 125 thru-hole pads and 47 top SMT pads. There are no bottom SMT pads. With 153 vias and 6 nets, our RF-60A PCB provides ample connectivity options.


Worldwide Availability:
No matter where you are, our RF-60A PCB is readily available to power your innovations. We serve customers worldwide, providing exceptional support and service.


The versatility of our RF-60A PCB makes it ideal for various applications, including power amplifiers, filters & couplers, passive components, and antennas.


Contact Info:

For any technical inquiries or further information, please reach out to Ivy at Our dedicated team is ready to assist you at every step.


Property Test Method Unit Value Unit Value
Dk @ 10 GHz IPC-650   6.15   6.15
Df @ 10 GHz IPC-650   0.0038   0.0038
Moisture Absorption IPC-650 % 0.02 % 0.02
Dielectric Breakdown IPC-650 2.5.6 kV 53 kV 53
Dielectric Strength ASTM D 149 V/mil 880 kV/mm 35
Volume Resistivity IPC-650 (After Humidity) Mohm/cm 9.0 x 108 Mohm/cm 9.0 x 108
Surface Resistivity IPC-650 (After Humidity) Mohm 2.28 x 108 Mohm 2.28 x 108
Arc Resistance IPC-650 2.5.1 Seconds 193 Seconds 193
Flexural Strength (MD) ASTM D 790 psi 18,300 N/mm2 126.2
Flexural Strength (CD) ASTM D 790 psi 14,600 N/mm2 100.7
Tensile Strength (MD) ASTM D 3039 psi 19,500 N/mm2 134.4
Tensile Strength (CD) ASTM D 3039 psi 16,300 N/mm2 112.4
Young’s Modulus ASTM D 3039 kpsi 1,590 N/mm2 11,000
Poisson’s Ratio ASTM D 3039   0.068 N/mm2 0.068
Compressive Modulus ASTM D 695 (23°C) kpsi 338   2,330
Peel Strength (1 oz. ED) IPC-650 2.4.8 Sec. 5.2.2 (Thermal Stress) lbs/in 8 N/mm 1.4
Dimensional Stability (MD) IPC-650 2.4.39 Sec. 5.4 (After Bake) mils/in 0.68 mm/M 0.68
Dimensional Stability (CD) IPC-650 2.4.39 Sec. 5.4 (After Bake) mils/in 1.05 mm/M 1.05
Density (Specific Gravity) ASTM D 792 g/cm3 2.79 g/cm3 2.79
Thermal Conductivity ASTM F 433 W/M*K 0.4 W/M*K 0.4
CTE (X axis) ASTM D 3386 (-30°C - 125°C) ppm/°C 9 ppm/°C 9
CTE (Y axis) ASTM D 3386 (-30°C - 125°C) ppm/°C 8 ppm/°C 8
CTE (Z axis) ASTM D 3386 (-30°C - 125°C) ppm/°C 69 ppm/°C 69
Outgassing (% TML) ASTM E 595* % 0.02 % 0.02
Outgassing (% CVCM) ASTM E 595* % 0.00 % 0.00
Outgassing (% WVR) ASTM E 595* % 0.01 % 0.01
Flammability Rating UL 94   V-0   V-0

Unleash Connectivity with RF-60A PCB: A Comprehensive Product Overview


In the realm of electronic design, the RF-60A PCB has emerged as a game-changer, revolutionizing connectivity and delivering exceptional performance. This comprehensive article dives into the technical specifications and features of the RF-60A PCB, showcasing its capabilities and highlighting its suitability for various applications. From its impressive dielectric properties to its robust mechanical strength, we explore how the RF-60A PCB sets a new standard in the world of printed circuit boards.


Exceptional Dielectric Properties
The RF-60A PCB boasts outstanding dielectric properties that ensure the integrity of signals even at high frequencies. With a dielectric constant (Dk) of 6.15 at 10 GHz, it guarantees consistent performance across a wide frequency range. Additionally, its low dissipation factor (Df) of 0.0038 at 10 GHz minimizes signal loss, making it ideal for demanding applications that require precise and efficient connectivity. Moreover, its low moisture absorption rate of 0.02% ensures stability in varying environmental conditions, safeguarding against moisture-related issues that can impact electronic components.


Robust Mechanical Strength
Engineered for reliability and durability, the RF-60A PCB exhibits exceptional mechanical strength. Its flexural strength in both the machine direction (MD) and cross-direction (CD) meets rigorous standards, with MD values of 18,300 psi (126.2 N/mm^2) and CD values of 14,600 psi (100.7 N/mm^2). These properties ensure the PCB's ability to withstand bending and stress without compromising performance. Furthermore, its high tensile strength, with MD values of 19,500 psi (134.4 N/mm^2) and CD values of 16,300 psi (112.4 N/mm^2), reinforces its robustness. The RF-60A PCB's Young's modulus of 1,590 kpsi (11,000 N/mm^2) and Poisson's ratio of 0.068 further contribute to its mechanical stability, offering peace of mind in demanding applications.


Reliability and Stability
With the RF-60A PCB, reliability and stability are prioritized. It exhibits excellent dimensional stability, with minimal changes in size even after baking. The dimensional stability values are 0.68 mils/in (0.68 mm/M) for the machine direction and 1.05 mils/in (1.05 mm/M) for the cross-direction. Furthermore, it maintains its structural integrity under thermal stress, with a peel strength of 8 lbs/in (1.4 N/mm) for 1 oz. ED copper. These properties ensure that the RF-60A PCB remains stable and reliable during operation, even in challenging thermal environments.


Environmental Compliance and Safety
The RF-60A PCB not only excels in performance but also adheres to environmental standards. It is compliant with ROHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment) regulations, ensuring the use of safe materials. Additionally, its flammability rating of UL 94 V-0 highlights its fire-resistant properties, offering an extra layer of safety. Furthermore, the RF-60A PCB undergoes rigorous testing, including outgassing tests, where it demonstrates minimal outgassing percentages, meeting ASTM E 595 requirements.


The RF-60A PCB sets new benchmarks for connectivity and performance. Its exceptional dielectric properties, robust mechanical strength, reliability, and compliance with environmental standards make it an ideal choice for diverse electronic applications, driving innovation forward.


31mil RF-60A Double Sided 1oz Immersion Gold PCB With White Silkscreen 1
