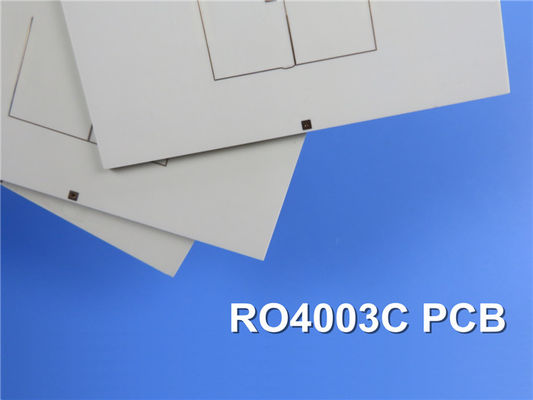

RO4003C 60mil 1oz High Frequency PCB With Immersion Gold

RO4003C 60mil 1oz High Frequency PCB With Immersion Gold
RO4003C 60mil 1oz High Frequency PCB With Immersion Gold RO4003C 60mil 1oz High Frequency PCB With Immersion Gold

Large Image :  RO4003C 60mil 1oz High Frequency PCB With Immersion Gold

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $9.99-$99.99
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
High Light:

60mil High Frequency PCB Material


1oz High Frequency PCB


High Frequency Immersion Gold PCB

Our newly shipped 2-layer rigid PCB has been specifically designed to meet the demanding requirements of high-performance and high-volume applications. Meticulously crafted using Rogers RO4003C Hydrocarbon Ceramic woven glass, this PCB offers unparalleled electrical performance and dimensional stability.


The PCB material, RO4003C, is a reinforced hydrocarbon/ceramic laminate renowned for its low dielectric tolerance and low loss. With a Dielectric Constant (DK) of 3.38 at 10 GHz and a Dissipation Factor of 0.0027 at 10 GHz, excellent electrical performance is achieved, making it ideal for applications requiring higher operating frequencies. Stable electrical properties across the frequency range enable it to excel in controlled impedance transmission lines and repeatable filter designs.


Featuring a low thermal coefficient of dielectric constant and excellent dimensional stability, reliable performance is ensured even under varying circuit processing temperatures. Plated-through holes benefit from the durability provided by its low Z-axis expansion, while stability throughout the manufacturing process is maintained due to the low in-plane expansion coefficient.


The stackup of this PCB consists of a 1.524mm Rogers 4003C core sandwiched between two 35 μm copper layers, providing optimal signal transmission and structural integrity. Versatility in circuit design is achieved with a finished board thickness of 1.6mm and a minimum trace/space of 5/4 mils.


This PCB comes with various construction details, including a board dimension of 42.56mm x 63.2mm (+/- 0.15mm), ensuring precise fitment in your applications. Efficient component integration is facilitated by the minimum hole size of 0.5mm, and the surface finish of Immersion Gold ensures excellent solderability and corrosion resistance.


With a total of 12 components and 38 pads, including 21 thru-hole pads and 17 top SMT pads, ample room is provided for your circuitry needs. Additional versatility is offered with two bottom SMT pads, and efficient routing and connectivity are achieved through the inclusion of 49 vias and 3 nets.


It meets IPC-Class-2 quality standards, this PCB undergoes a 100% electrical test prior to shipment, ensuring its reliability and functionality. Seamless integration into your manufacturing process is enabled by its compatibility with Gerber RS-274-X artwork.


This high-performance PCB finds applications in various industries, excelling in delivering reliable and efficient performance in areas such as cellular base station antennas and power amplifiers, automotive radar and sensors, and LNBs for direct broadcast satellites.


Prompt delivery to meet your project timelines is ensured through our worldwide availability. For any technical inquiries or further information, please contact Ivy at Trust our expertise to deliver the highest quality PCBs for your cutting-edge applications.


Dielectric Constant,εProcess 3.38±0.05 Z   10 GHz/23℃ IPC-TM-650 Clamped Stripline
Dielectric Constant,εDesign 3.55 Z   8 to 40 GHz Differential Phase Length Method
Dissipation Factortan,δ 0.0027
Z   10 GHz/23℃
2.5 GHz/23℃
Thermal Coefficient of ε +40 Z ppm/℃ -50℃to 150℃ IPC-TM-650
Volume Resistivity 1.7 x 1010   MΩ.cm COND A IPC-TM-650
Surface Resistivity 4.2 x 109   COND A IPC-TM-650
Electrical Strength 31.2(780) Z Kv/mm(v/mil) 0.51mm(0.020") IPC-TM-650
Tensile Modulus 19,650(2,850)
MPa(ksi) RT ASTM D 638
Tensile Strength 139(20.2)
MPa(ksi) RT ASTM D 638
Flexural Strength 276
  IPC-TM-650 2.4.4
Dimensional Stability <0.3 X,Y mm/m
after etch+E2/150℃ IPC-TM-650 2.4.39A
Coefficient of Thermal Expansion 11
ppm/℃ -55℃to288℃ IPC-TM-650 2.4.41
Tg >280   ℃ TMA A IPC-TM-650
Td 425   ℃ TGA   ASTM D 3850
Thermal Conductivity 0.71   W/M/oK 80℃ ASTM C518
Moisture Absorption 0.06   % 48hrs immersion 0.060"
sample Temperature 50℃
ASTM D 570
Density 1.79   gm/cm3 23℃ ASTM D 792
Copper Peel Stength 1.05
after solder float 1 oz.
EDC Foil
IPC-TM-650 2.4.8
Flammability N/A       UL 94
Lead-free Process Compatible Yes

Advantages of using RO4003C material:

1. Excellent electrical performance: RO4003C material offers low dielectric tolerance and low loss, making it ideal for applications with higher operating frequencies. It enables superior signal integrity and allows for efficient transmission of high-frequency signals.


2. Stable electrical properties vs. frequency: The material exhibits consistent electrical properties across a wide frequency range, which is crucial for controlled impedance transmission lines and the repeatable design of filters. This stability ensures reliable and predictable circuit performance.


3. Dimensional stability: RO4003C material has excellent dimensional stability, meaning it maintains its shape and size even under varying processing temperatures. This stability is essential for precise manufacturing processes and reliable circuit assembly.


4. CAF resistance: The material is resistant to Conductive Anodic Filament (CAF) formation, which is a common concern in electronic assemblies. This resistance ensures the long-term reliability and performance of the PCB.


5. Volume manufacturing process: RO4003C laminates can be fabricated using standard glass epoxy processes, making them compatible with cost-effective and widely available manufacturing techniques. This allows for efficient and scalable production.

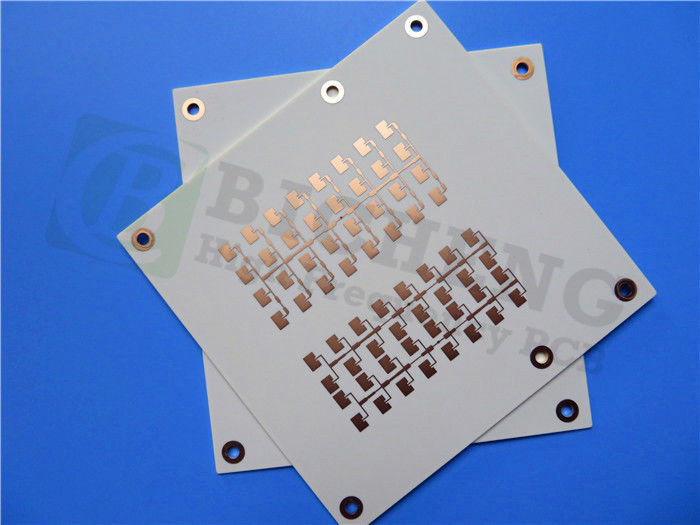

RO4003C 60mil 1oz High Frequency PCB With Immersion Gold 0


Disadvantages of using RO4003C material:

1. Limited temperature range: While RO4003C has a wide operating temperature range of -40℃ to +85℃, it may not be suitable for extreme temperature environments beyond this range. Applications requiring higher temperature resistance may need alternative materials.


2. Cost: Compared to some other PCB materials, RO4003C may have a higher cost. However, it is competitively priced within its performance class and offers value for applications that require its specific advantages.
