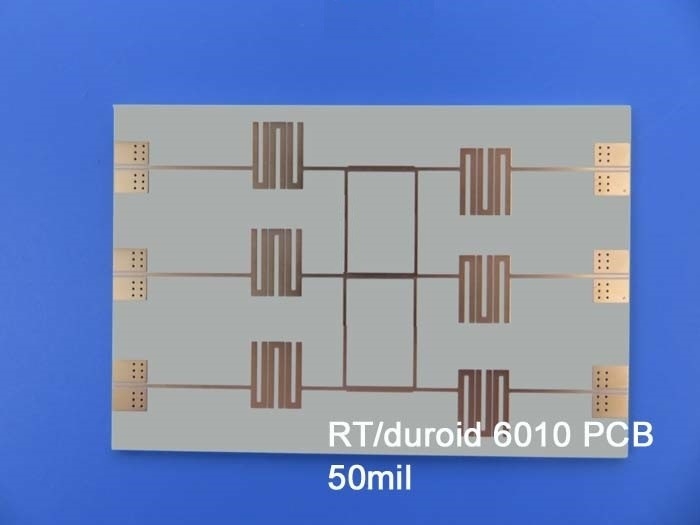

RT/Duroid 6010 RF PCB 50mil 2 Layer Rigid PCB With Advanced Features

Detailed Product Description
High Light:

Ceramic PTFE Composite Rigid PCB


6010 RF PCB Blog


50mil 2 Layer Rigid PCB

Discover our high-performance and reliable newly shipped PCB, crafted using cutting-edge materials and advanced manufacturing processes. This 2-layer rigid PCB meets the highest industry standards and is perfect for a wide range of applications, from consumer electronics to industrial controls. Let's explore the outstanding features of this remarkable PCB:


1. PCB Material:
-Made from RT/duroid 6010.2LM ceramic PTFE composites for excellent electrical performance and durability.
-Lead-free process for enhanced environmental friendliness.
-Designed for operation in a wide temperature range (-40℃ to +85℃), suitable for various environments.


2. Stackup:
-Optimized stackup design for optimal signal integrity and performance.
-2-layer construction with 35um finished copper thickness for robust electrical conductivity.
-RT/duroid 6010.2LM dielectric, 50 mil (1.27mm) thick, for reliable insulation and signal integrity.
-35um finished copper thickness on the top and bottom layers for consistent performance.


3. Construction Details:
-Compact board dimensions: 94mm x 90mm.
-Minimum Trace/Space: 9/10 mils for precise routing and high-density designs.
-Minimum Hole Size: 0.5mm, allowing for versatile component selection.
-No blind or buried vias, simplifying the manufacturing process.
-Finished board thickness: 1.4mm, balancing strength and flexibility.
1 oz (1.4 mils) finished copper weight on all layers for optimal electrical conductivity.
-1 mil via plating thickness for reliable interconnection between layers.
-Surface finish: Immersion Gold for excellent solderability and corrosion resistance.
-White Top Silkscreen for clear component labeling and identification.
-No Bottom Silkscreen for a clean and professional aesthetic.
-Blue Top and Bottom Solder Mask for exceptional trace protection and solder bridging prevention.
-No silkscreen on solder pads for precise soldering and minimal errors.
-100% Electrical test for quality assurance and reliability.
-0.5mm vias filled by resin and capped as per IPC-4761 Type VII, enhancing structural integrity and reliability.


4. PCB Statistics:
-Accommodates 42 components for versatile circuit designs.
-67 pads for ample connectivity options.
-48 Thru Hole Pads for secure component mounting.
-19 Top SMT Pads for surface-mounted components.
-No Bottom SMT Pads for a streamlined layout.
-65 Vias for efficient signal routing.
-6 Nets for reliable interconnection between components.


5. Type of Artwork Supplied: Gerber RS-274-X, the industry-standard format for PCB fabrication.


6. Accepted Standard: Compliant with IPC-Class-2 standards for high quality and reliability.


7. Service Area: Our exceptional PCB services are available worldwide for convenient accessibility.

For any technical inquiries or further information, please do not hesitate to contact Ivy at


PCB Material: Ceramic-PTFE composite
Designator: RT/duroid 6010LM
Dielectric constant: 10.2 ±0.25 (process); 10.7 (design)
Layer count: 1 Layer, 2 Layer
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Dielectric thickness: 10mil (0.254mm), 25mil (0.635mm), 50mil (1.27mm), 75mil (1.90mm)
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, Immersion tin, Immersion Silver, OSP.

Unleashing the Power of RT/duroid 6010: Transforming PCB Performance


In the fast-paced world of electronics, technological advancements are constantly driving innovation. With its exceptional qualities and benefits, RT/duroid 6010 has become the go-to choice for engineers seeking high-performance and reliable circuitry. In this article, we will explore the general qualities and benefits of RT/duroid 6010, and how it is transforming PCB performance across various industries.


Unmatched Electrical Performance:
At the heart of RT/duroid 6010 lies its exceptional electrical properties. With a dielectric constant of 10.2±0.25, it ensures efficient signal propagation, minimizing loss and distortion. Moreover, its low dissipation factor of 0.0023 allows for precise transmission of high-frequency signals, making it ideal for applications demanding excellent signal integrity.


Stability Across Temperature:
One of the standout features of RT/duroid 6010 is its thermal stability. With a thermal coefficient of ε of -425 ppm/℃, it maintains its dielectric properties across a wide temperature range (-50℃ to 170℃). This stability ensures consistent performance even in harsh environments, making it suitable for applications in aerospace, automotive, and telecommunications industries.


Robust Mechanical Properties:
RT/duroid 6010 boasts impressive mechanical strength. Its high tensile and compressive strengths, measured at 931 MPa and 2144 MPa respectively, make it highly resistant to deformation and structural damage. This durability ensures the longevity and reliability of PCBs even in demanding conditions.


Flexural Modulus for Enhanced Rigidity:
The flexural modulus of RT/duroid 6010, measured at 4364 MPa, guarantees superior rigidity. This attribute is crucial in PCB manufacturing, as it helps prevent warping and bending, ensuring consistent performance and ease of assembly.


Environmental Resilience:
Engineers and manufacturers are increasingly focused on environmental sustainability. RT/duroid 6010 addresses this concern by being lead-free process compatible, meeting stringent environmental standards without compromising on performance. It enables the development of eco-friendly PCBs that align with green initiatives.


Versatility in Applications:
One of the most significant advantages of RT/duroid 6010 is its versatility. It finds applications across a wide range of industries, from consumer electronics to aerospace. Its exceptional electrical and mechanical properties make it an ideal choice for high-frequency applications, such as radar systems, microwave circuits, and satellite communications.


RT/duroid 6010 has revolutionized PCB manufacturing with its exceptional qualities and benefits. Its outstanding electrical performance, stability across temperature variations, robust mechanical properties, and compatibility with lead-free processes make it the material of choice for engineers seeking top-notch circuitry. The versatility of RT/duroid 6010 allows for its application in diverse industries, enabling the development of cutting-edge electronics that push the boundaries of innovation. As technology continues to advance, RT/duroid 6010 stands as a testament to the power of materials in transforming PCB performance and shaping the future of electronics.
