Rogers 4835 1.524mm Double Layer Rogers RF PCB Board High Frequency

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-199.V1.0

Base Material:

RO4835 1.524mm

Layer Count:

2 Layers

PCB Thickness:

1.6 Mm ±0.1

PCB Size:

12 X 26mm=1up

Copper Weight:

Surface Finish:

Immersion Gold

Highlight:

Double Layer RF Printed Circuit Board

1.524mm RF Circuit Board

Rogers High Frequency Circuit Board

Product Description

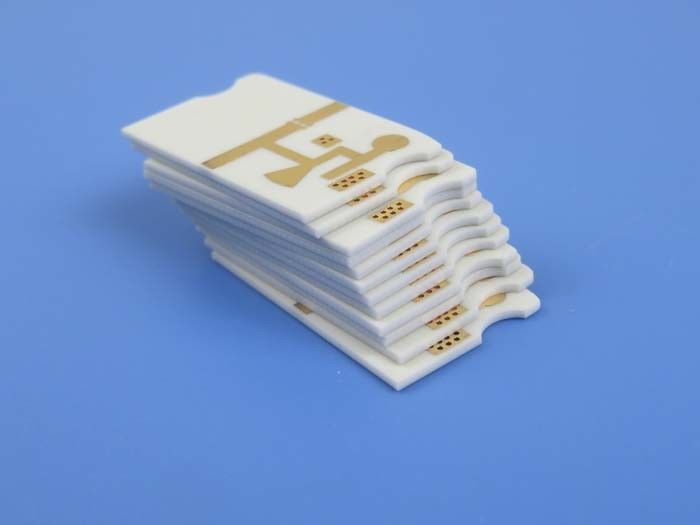

RO4835 High Frequency PCB Double Layer 60mil 1.524mm Rogers 4835 PCB With Immersion Gold

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)

General Description

This is a type of Rogers high frequency PCB built on RO4835 laminates, double layers with signal layer on top side, shielding layer on bottom side. It is plated with immersion gold, no solder mask or silkscreen. It’s fabricated using 60mil substrates, 0.5oz copper starting. The boards are manufactured as per IPC Class II standard. All of the boards are 100% electrical tested before shipment.

PCB Specifications

PCB SIZE	12 x 26mm=1up
BOARD TYPE	Double sided PCB
Number of Layers	2 layers
Surface Mount Components	YES
Through Hole Components	NO
LAYER STACKUP	copper ------- 17um(0.5 oz)+plate TOP layer
	RO4835 1.524mm
	copper ------- 17um(0.5 oz) + plate BOT Layer
TECHNOLOGY
Minimum Trace and Space:	110 mil / 110 mil
Minimum / Maximum Holes:	1.0 mm / 1.0 mm
Number of Different Holes:	1
Number of Drill Holes:	10
Number of Milled Slots:	0
Number of Internal Cutouts:	0
Impedance Control:	no
Number of Gold finger:	0
BOARD MATERIAL
Glass Epoxy:	RO4835 1.524mm
Final foil external:	1.0 oz
Final foil internal:	N/A
Final height of PCB:	1.6 mm ±0.1
PLATING AND COATING
Surface Finish	Immersion Gold, 86.2%
Solder Mask Apply To:	N/A
Solder Mask Color:	N/A
Solder Mask Type:	N/A
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	N/A
Colour of Component Legend	N/A
Manufacturer Name or Logo:	N/A
VIA	Plated through hole(PTH), minimum size 1.0mm.
FLAMIBILITY RATING	94V-0
DIMENSION TOLERANCE
Outline dimension:	0.0059"
Board plating:	0.0029"
Drill tolerance:	0.002"
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

Features and Benefits

1. Significantly improved oxidation resistance compared to typical thermoset microwave materials, which are designed for performance sensitive, high volume applications.

2. Low loss exhibits excellent electrical performance allowing application with higher operating frequencies, especially ideal for automotive applications.

3. Tight dielectric constant tolerance results in controlled impedance transmission lines

4. Lead-free process compatible results in no blistering or delamination

5. Low Z-axis expansion results in reliable plated through holes

6. Low in-plane expansion coefficient remains stable over an entire range of circuit processing temperatures

7. CAF resistant

The typical applications are automotive radar and sensors, point-to point Microwave, power Amplifiers, phased - array radar and RF components.
