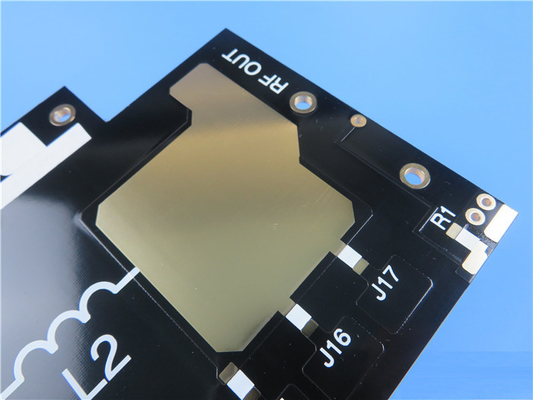

Microwave Composite Dielectric RF PCB Board 1.0mm Double Sided PCB

Microwave Composite Dielectric RF PCB Board 1.0mm Double Sided PCB
Microwave Composite Dielectric RF PCB Board 1.0mm Double Sided PCB Microwave Composite Dielectric RF PCB Board 1.0mm Double Sided PCB

Large Image :  Microwave Composite Dielectric RF PCB Board 1.0mm Double Sided PCB

Product Details:
Place of Origin: CHINA
Brand Name: Bicheng
Certification: UL, ISO9001, IATF16949
Model Number: BIC-183.V1.0
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: Vacuum bags+Cartons
Delivery Time: 8-9 working days
Payment Terms: T/T
Supply Ability: 5000PCS per month
Detailed Product Description
Base Material: Microwave Composite Dielectric Material Layer Count: Double Sided PCB, Multilayer PCB, Hybrid PCB
PCB Thickness: 0.8mm±0.05, 1.0mm±0.05, 1.2mm±0.05, 1.5mm±0.06, 2.0mm±0.075, 3.0mm±0.1, 4.0mm±0.1, 5.0mm±0.12, 6.0mm±0.12, 10.0mm±0.2 PCB Size: ≤400mm X 500mm
Solder Mask: Green, Black, Blue, Yellow, Red Etc. Copper Weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
Surface Finish: Bare Copper, HASL, ENIG, Immersion Silver, Immersion Tin, OSP Etc..
High Light:

Dielectric RF PCB Board

,

1.0mm Double Sided PCB

,

Microwave Composite RF PCB Board



Wangling TP-1/2 High Frequency PCB Alternative Higher-Dk RF PCB DK10, DK22 Printed Circuit Board

(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)



General Description

TP-1/2 is smooth and neat on both sides, no stain, scratch and dent on overall appearance. The chemical etching method used on PCB manufacturing result in stable dielectric properties. The dielectric constant is stable and DK can be optional within the range of 3 to 22 according to the design of circuit requirement. The operating temperature is -100℃~+150℃.



The peel strength between the copper and the substrate is more reliable than the vacuum film coating of ceramic substrate. This substrate is designed to offer customers easy circuit processing, higher pass-rate of production. Especially, the manufacturing cost is much lower than the ceramic substrate.



Typical Applications

1. Aircraft Collision Avoidance Systems

2. GPS Antennas

3. Microstrip Patch Antennas

4. Passive Components (filters, couplers, power dividers)

5. Satellite Components



Microwave Composite Dielectric RF PCB Board 1.0mm Double Sided PCB 0



Our Capability (TP-1/2)

PCB Material: Microwave Composite Dielectric Material
Designation: TP-1/2
Dielectric constant: 10.0
Dissipation Factor 0.001 10GHz
Layer count: Double Sided PCB, Multilayer PCB, Hybrid PCB
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 0.8mm±0.05, 1.0mm±0.05, 1.2mm±0.05, 1.5mm±0.06, 2.0mm±0.075, 3.0mm±0.1, 4.0mm±0.1, 5.0mm±0.12, 6.0mm±0.12, 10.0mm±0.2
PCB size: ≤400mm X 500mm
Solder mask: Green, Black, Blue, Yellow, Red etc.
Surface finish: Bare copper, HASL, ENIG, Immersion silver, Immersion tin, OSP etc..



Why Choose Us?

1.ISO9001, ISO14001, IATF16949, ISO13485, UL Certified;

2.More than 18+ years’ high frequency PCB experience;

3.Small quantity order is available, no MOQ required;

4.We’re a Team of passion, discipline, responsibility and honesty;

5.Delivery on time: >98%, Customer complaint rate: <1%

6.16000㎡ workshop, 30000㎡ output a month and 8000 types of PCB's a month;

7.Powerful PCB capabilities support your research and development, sales and marketing;

8.IPC Class 2 / IPC Class 3



TP-1/2 Typical Value

Name Test condition Unit Value
Density Normal state g/cm3 1.0~2.9
Moisture Absorption Dip in distilled water of 20±2 for 24 hours % ≤0.02
Peel strength In normal state N/cm ≥6
In the environment of alternating humidity and temperature: N/cm ≥4
Operating Temperature High-low temperature cabinet -100+150(Processing temperature should not exceed 200℃)
Thermal Conductivity -55~288 W /m /k 0.6
CTE Temperature rise of 96 per hour   < 6×10-5
Shrinkage Factor 2 hours in boiling water % 0.0004
Surface Resistivity 500V DC Normal state M.Ω ≥1×107
500V DC Constant humidity and temperature M.Ω ≥1×105
Volume Resistivity Normal state MΩ.cm ≥1×109
Constant humidity and temperature   ≥1×106
Surface dielectric strength Normal state Kv/mm ≥1.5
Constant humidity and temperature   ≥1.2
Dielectric Constant 10GHz εr 3, 6, 9.6, 10.2, 10.5, 11, 16, 20, 22(±2%)(DK can be customized)
Dissipation Factor 10GHz Tgδ(εr 3-11) ≤1×10-3
Tgδ(εr 12-22) ≤1.5×10-3



Microwave Composite Dielectric RF PCB Board 1.0mm Double Sided PCB 1
