Detailed Product Description
Base Material: Stainless Steel Shim Stencil Size: 520 X 420 Mm =1 PCS
Foil Thickness: 0.12mm Appearance: Engraving And Electro Polishing
High Light:

High Precision PCB SMT Stencil

,

Engraving PCB SMT Stencil

,

High Precision Laser Cut Solder Stencil

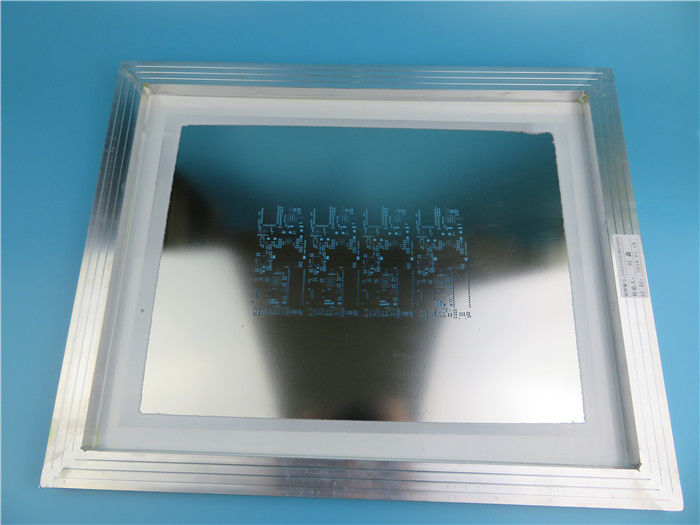

Laser SMT Stencil Built on 520 X 420mm With Aluminum Fame


1.1 General description
This is a type of laser cut SMT stencil built on 0.12mm stainless steel foil with 420 mm x 520 mm x 20mm dimension. It’s fabricated per IPC 7525A using supplied Gerber data, squeegee area locating in the center. 4 sides of fiducal marks are through holes to suit for the SMT machine. It’s packed with KK carton (hard card) and usually 2 stencils are packed for shipment.

1.2 Features and benifits
The data file is used directly to produce and reduce the error rate;
The opening position accuracy of SMT template is very high: the whole process error is ≤ ±4 μ m;
The opening of SMT template has geometric figure, which is advantageous to the printing and forming of tin paste;
ISO9000 certified manufacturing factory;
12 hours quotation;
Quick Lead time: 1-2 days;
No MOQ, low cost for prototypes and small runs quantity;

High Precision PCB SMT Stencil Engraving Laser Cut Solder Stencil 0High Precision PCB SMT Stencil Engraving Laser Cut Solder Stencil 1High Precision PCB SMT Stencil Engraving Laser Cut Solder Stencil 2High Precision PCB SMT Stencil Engraving Laser Cut Solder Stencil 3

1.3 Application
SMD package such as PLCC,QFP,0402,0201,BGA,Flip Chip.

1.4 Parameter and data sheet
Dimension: 520 x 420 mm =1 PCS
Structure Stencil foils with aluminum frame
Base material Stainless steel shim
Foil Thickness 0.12mm
Aperture configured Laser cut
Appearance Engraving and electro polishing
Fiducial mark Through hole
Service area: Worldwide
Quantity of open pads: 1021
Advantages: a) High precision dimension; b) Good shape on the window; c) Hole wall is smoother.
Application: CSP, BGA, 0.5mm QFP etc. package

1.5 Opening Holes Design For Stencil
Component Type Pitch Soldering Width Soldering Length Opening Width Opening Length Shim Thickness
PLCC 1.27mm 0.65mm 2.00mm 0.60mm 1.95mm 0.15-0.25mm
QFP 0.635mm 0.35mm 1.50mm 0.32mm 1.45mm 0.15-0.18mm
QFP 0.50mm 0.254-0.33mm 1.25mm 0.22-0.25mm 1.20mm 0.12-0.15mm
QFP 0.40mm 0.25mm 1.25mm 0.20mm 1.20mm 0.10-0.12mm
QFP 0.30mm 0.20mm 1.00mm 0.15mm 0.95mm 0.07-0.12mm
0402   0.50mm 0.65mm 0.45mm 0.60mm 0.12-0.15mm
0201   0.25mm 0.40mm 0.23mm 0.35mm 0.07-0.12mm
BGA 1.27mm 0.80mm   0.75mm 0.75mm 0.15-0.20mm
BGA 1.00mm 0.38mm   0.35mm 0.35mm 0.10-0.12mm
BGA 0.50mm 0.30mm   0.28mm 0.28mm 0.07-0.12mm
Flip Chip 0.25mm 0.12mm 0.12mm 0.12mm 0.12mm 0.08-0.10mm
Flip Chip 0.20mm 0.10mm 0.10mm 0.10mm 0.10mm 0.05-0.10mm
