NO Silkscreen 1.0mm Metal Core PCB For Switch Regulator
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

NO Silkscreen 1.0mm Metal Core PCB For Switch Regulator

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-779.V1.0
Base Material:
1W/MK Dielectric Material
Layer Count:
Single Side
PCB Thickness:
1.0mm ±0.1
PCB Size:
55 X 55mm=1PCS
Solder Mask:
White
Silkscreen:
NO
Copper Weight:
1oz
Surface Finish:
ENIG
Highlight:

NO Silkscreen Metal Core PCB

,

1.0mm Metal Core PCB

Product Description



Injection Molding Aluminum PCB Built On 1W / MK for Switch Regulator
(PCB’s are custom-made products, the picture and parameters shown are just for reference)



General description
This is a type of Aluminum PCB for the application of switch regulator. It's a single layer MCPCB board at 1.0 mm thick with 1 W/MK thermal conductivity. The aluminum plate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. 20 boards are packed for shipment.



Parameter and data sheet

PCB SIZE 55 x 55mm=1PCS
BOARD TYPE Metal core PCB
Number of Layers Single sided PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1oz)
1W/MK dielectric material
Aluminum 5052
TECHNOLOGY
Minimum Trace and Space: 15mil/12mil
Minimum / Maximum Holes: 3.5/6.3mm
Number of Different Holes: 4
Number of Drill Holes: 9
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Impedance Control no
BOARD MATERIAL
Thermal conductivity 1W/MK dielectric material, MCPCB
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 1.0mm ±0.1
PLATING AND COATING
Surface Finish Electroless nickel over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickel)
Solder Mask Apply To: Top. 12µm Minimum.
Solder Mask Color: White,PSR400 WT02
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend no silkscreen required
Colour of Component Legend no silkscreen required
Manufacturer Name or Logo: no silkscreen required
VIA via tented.
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059" (0.15mm)
Board plating: 0.0030" (0.076mm)
Drill tolerance: 0.002" (0.05mm)
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

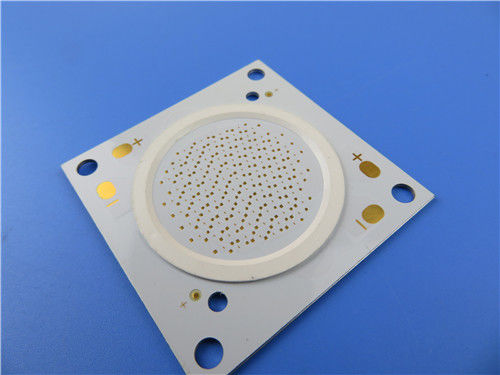

NO Silkscreen 1.0mm Metal Core PCB For Switch Regulator 0



Features and benefits
SMT process
Effective heat dissipation reduces the operating temperature of the module and prolongs the service life
Power density and reliability are improved up 10%.
Reduce the dependence of heat sinks and other hardware (including thermal interface materials),
Products and Manufacturing are certified by authorized organizations.
100% tests inclusive of electrical test and AOI inspection.
More than 18 years' experience
High technology


Applications
Audio amplifier
A filter electric circuit
Automatic safety control system
Projector lamp



NO Silkscreen 1.0mm Metal Core PCB For Switch Regulator 1
