1.6mm 2oz LED Aluminum Plate PCB Board With 2W/MK Thermal Conductivity
  • name
  • name
  • name
  • name
  • name
  • name
  • name

1.6mm 2oz LED Aluminum Plate PCB Board With 2W/MK Thermal Conductivity

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-775.V1.0
Base Material:
2W/MK Dielectric Material
Layer Count:
Single Side
PCB Thickness:
1.6mm ±0.16
PCB Size:
26 X 26 Mm (diameter 26mm )
Solder Mask:
White
Silkscreen:
Black
Copper Weight:
2oz
Surface Finish:
Hot Air Soldering Leveling(HASL),lead Free
Highlight:

1.6mm LED Aluminum Plate PCB Board

,

2oz LED Aluminum Plate PCB Board

,

2oz Aluminum Circuit Board

Product Description



Single Sided Aluminum PCB 1W / MK Aluminum PCB with HASL for Light Conversion System
(PCB’s are custom-made products, the picture and parameters shown are just for reference)


General description
This is a type of aluminum PCB for the application of Led Lighting. It's a single layer MCPCB board at 1.6 mm thick with 2 W/MK thermal conductivity. The aluminum plate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. 30 panels are packed separately.



Parameter and data sheet

PCB SIZE 26 x 26 mm (diameter 26mm )
BOARD TYPE IMS PCB
Number of Layers Single sided PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 70um(2oz)
2W/MK dielectric material 75um
Aluminum 6061 1.5mm
TECHNOLOGY
Minimum Trace and Space: 18mil/25mil
Minimum / Maximum Holes: 2.0mm / 4.0mm
Number of Different Holes: 2
Number of Drill Holes: 4
Number of Milled Slots: 2
Number of Internal Cutouts: 0
Impedance Control no
BOARD MATERIAL
Aluminum core: 2W / MK dielectric material 75um
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Final foil external: 2oz
Final foil internal: 0oz
Final height of PCB: 1.6mm ±0.16
PLATING AND COATING
Surface Finish Hot air soldering leveling(HASL),lead free, Sn>=2.54µm
Solder Mask Apply To: TOP, 12micron Minimum
Solder Mask Color: White
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP
Colour of Component Legend Black
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Non Plated Throught Hole (NPTH)
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.

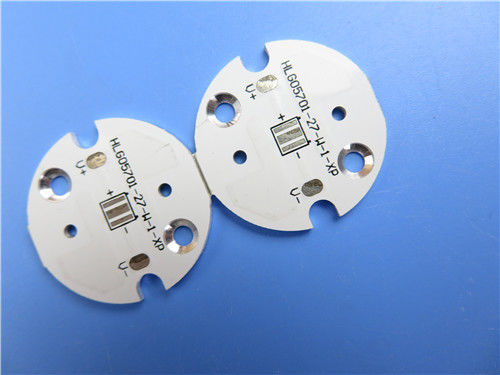

1.6mm 2oz LED Aluminum Plate PCB Board With 2W/MK Thermal Conductivity 0



Features and benefits
Replace the fragile ceramic substrate and obtain a better mechanical durability,
Reduce the operating temperature of the equipment,
Prolong the service life of the product,
DDU Door to door shipment with competitive shipping cost,
Diversified shipping method
On-time service



Applications
Street lamp
Electronic regulator
Light conversion system
alanced amplifier

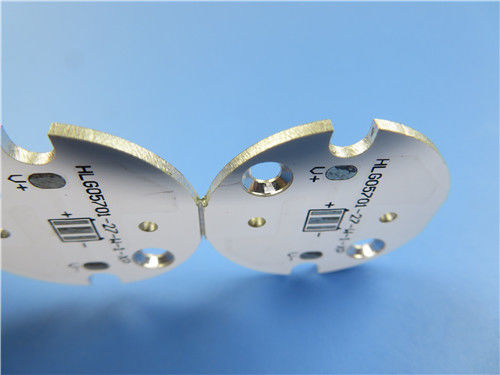

1.6mm 2oz LED Aluminum Plate PCB Board With 2W/MK Thermal Conductivity 1
