Power Module 1oz Metal Core PCB With Black Solder Mask

MOQ:	1PCS
Price:	USD9.99-99.99
Standard Packaging:	Vacuum bags+Cartons
Delivery Period:	8-9 working days
Payment Method:	T/T
Supply Capacity:	5000PCS per month

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Bicheng

Certification

UL, ISO9001, IATF16949

Model Number

BIC-771.V1.0

Base Material:

1W/MK Dielectric Material

Layer Count:

Single Side

PCB Thickness:

1.6mm ±0.16

PCB Size:

96 X 96mm=1PCS

Solder Mask:

Black

Silkscreen:

White

Copper Weight:

Surface Finish:

Hot Air Soldering Leveling(HASL),lead Free

Highlight:

Power Module Metal Core PCB

1oz Metal Core PCB

1oz Power Module PCB

Product Description

Aluminum PCB IMS Printed Circuit Board RoHS For Power Module

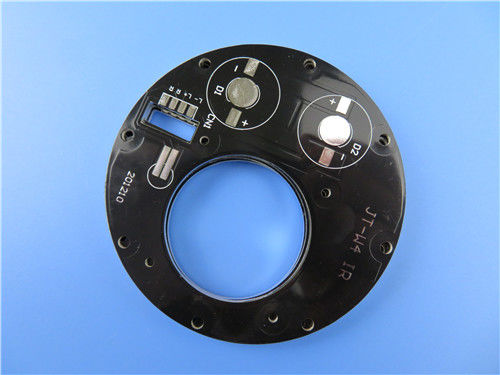

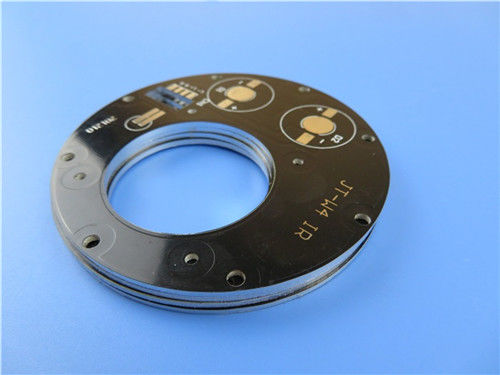

(PCB’s are custom-made products, the picture and parameters shown are just for reference)

General description

This is a type of aluminum PCB for the application of power module. It's a single layer MCPCB board at 1.6 mm thick with 1 W/MK thermal conductivity. The aluminum plate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. 30 boards are packed separately.

Parameter and data sheet

PCB SIZE	96 x 96mm=1PCS
BOARD TYPE	IMS PCB
Number of Layers	Single sided PCB
Surface Mount Components	YES
Through Hole Components	NO
LAYER STACKUP	copper ------- 70um(2oz)
	1W/MK dielectric material 75um
	Aluminum 6061 1.5mm
TECHNOLOGY
Minimum Trace and Space:	12mil/20mil
Minimum / Maximum Holes:	3mm / 5.0mm
Number of Different Holes:	12
Number of Drill Holes:	3
Number of Milled Slots:	2
Number of Internal Cutouts:	0
Impedance Control	no
BOARD MATERIAL
Aluminum core:	1W / MK dielectric material 75um
Thermal resistance(°C/W)	≤0.45
Breakdown Voltage(VDC)	4000
Final foil external:	1oz
Final foil internal:	0oz
Final height of PCB:	1.6mm ±0.16
PLATING AND COATING
Surface Finish	Hot air soldering leveling(HASL),lead free, Sn>=2.54µm
Solder Mask Apply To:	TOP, 12micron Minimum
Solder Mask Color:	Black, KSM-S6189BK31
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	TOP
Colour of Component Legend	White, IJR-4000 MW300
Manufacturer Name or Logo:	Marked on the board in a conductor and leged FREE AREA
VIA	Non Plated Throught Hole (NPTH)
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059"
Board plating:	0.0029"
Drill tolerance:	0.002"
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

Features and benefits

Optimization combination of power circuit and control circuit,

Replace the fragile ceramic substrate and obtain a better mechanical durability,

Effective heat diffusion in the design of the circuit,

Improve the power density and reliability of the device,

Strict WIP inspection and monitoring as well as working instruction,

UL recognized and RoHS Directive-compliant

Applications

Floppy disk driver

Communication electronic equipment

Power supply equipment
