No Impedance Control 1.8mm Aluminum PCB Board With White Solder Mask
  • name
  • name
  • name
  • name
  • name
  • name
  • name
  • name

No Impedance Control 1.8mm Aluminum PCB Board With White Solder Mask

MOQ: 1PCS
Price: USD9.99-99.99
Standard Packaging: Vacuum bags+Cartons
Delivery Period: 8-9 working days
Payment Method: T/T
Supply Capacity: 5000PCS per month
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
Bicheng
Certification
UL, ISO9001, IATF16949
Model Number
BIC-770.V1.0
Base Material:
1W/MK Dielectric Material
Layer Count:
Single Side
PCB Thickness:
1.8mm ±0.12
PCB Size:
100 X 25mm=1PCS
Solder Mask:
White
Silkscreen:
Black
Copper Weight:
1oz
Surface Finish:
Immersion Gold
Highlight:

UL Aluminum PCB Board

,

1.8mm Aluminum PCB Board

Product Description

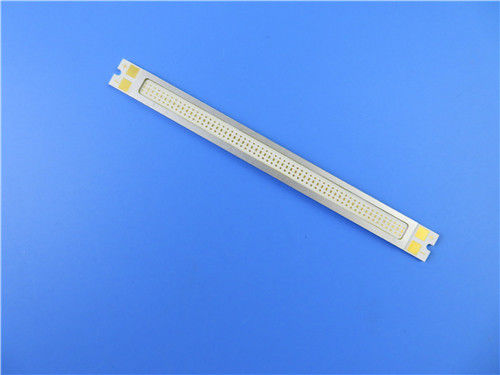

Composite Aluminum PCB Board For Switch Regulator
(PCB’s are custom-made products, the picture and parameters shown are just for reference)



General description
This is a type of aluminum PCB for the application of switch regulator. It's a single layer MCPCB board at 1.6 mm base with 1 W/MK thermal conductivity. The aluminum plate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. 30 boards are packed separately.



Parameter and data sheet

PCB SIZE 100 x 25mm=1PCS
BOARD TYPE IMS PCB
Number of Layers Single sided PCB
Surface Mount Components YES
Through Hole Components NO
LAYER STACKUP copper ------- 35um(1oz)
1W/MK dielectric material 75um
Aluminum 1060 1.6mm
TECHNOLOGY
Minimum Trace and Space: 10mil/18mil
Minimum / Maximum Holes: 0
Number of Different Holes: 0
Number of Drill Holes: 0
Number of Milled Slots: 2
Number of Internal Cutouts: 0
Impedance Control no
BOARD MATERIAL
Aluminum core: 1W / MK dielectric material 75um
Thermal resistance(°C/W) ≤0.45
Breakdown Voltage(VDC) 4000
Final foil external: 1oz
Final foil internal: 0oz
Final height of PCB: 1.8mm ±0.12
PLATING AND COATING
Surface Finish Immersion gold 0.025µm over 3µm Nickel
Solder Mask Apply To: TOP, 12micron Minimum
Solder Mask Color: White, Taiyo PSR400 WT02
Solder Mask Type: LPSM
CONTOUR/CUTTING Routing
MARKING
Side of Component Legend TOP
Colour of Component Legend Black
Manufacturer Name or Logo: Marked on the board in a conductor and leged FREE AREA
VIA Non Plated Throught Hole (NPTH)
FLAMIBILITY RATING UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension: 0.0059"
Board plating: 0.0029"
Drill tolerance: 0.002"
TEST 100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA Worldwide, Globally.



No Impedance Control 1.8mm Aluminum PCB Board With White Solder Mask 0



Features and benefits
Effective heat diffusion in the design of the circuit,
Reduce the operating temperature of the equipment,
Improve the power density and reliability of the device,
Products and Manufacturing are certified by authorized organizations.
UL conformed


Applications
Ceiling lamp aluminum PCB
Power supply device
A filter electric circuit
High frequency amplifier



No Impedance Control 1.8mm Aluminum PCB Board With White Solder Mask 1


Why choose us?
1) Focus on your core competencies: We’ve deeply known it is full of fierce competition for our customers in the market. You can focus on such important competencies as research and development, sales and marketing based on our professional performance and skilled services that exceeding your expectation.



2) Cutting-edge technology: it is rational for a small and medium-sized customer to hanker after the latest equipment and manufacturing expertise for its PCBs. By the partnerships with Bicheng PCB, you gain access to reach your expectation with our 3 factory bases with over 26,000 square meters.



3) Save the cost of production: Production cost is one of the key points of our customers’ product competitiveness. Bicheng PCB have been striving to reduce its manufacturing cost from equipment introduce, worker training and technology improvement to increase their profitability. Customers are satisfied with our cost savings but without quality loss.



Tags:

Single Sided Metal Core PCB,

ENIG RGB LED PCB Board,

3W/MK RGB LED PCB Board
